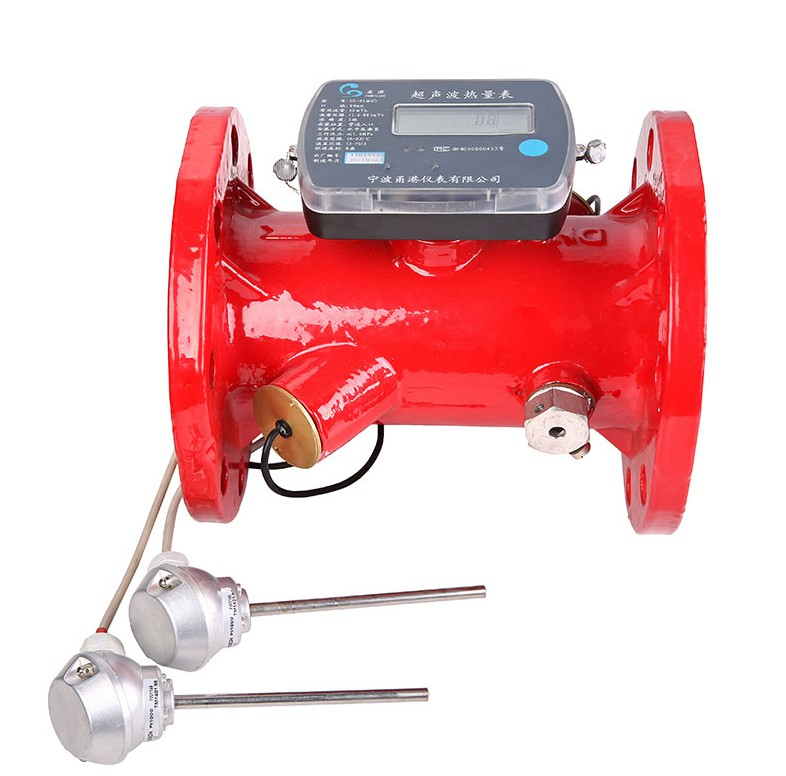

An ultrasonic heat meter is a sophisticated instrument specifically designed for the precise measurement of thermal energy consumption, particularly in heating and cooling systems. It operates on the principles of ultrasonic technology to accurately determine the quantity of thermal energy being transferred. Here's a comprehensive overview of how an ultrasonic heat meter functions and measures thermal energy:

1. Ultrasonic Flow Measurement: The core technology of an ultrasonic heat meter revolves around ultrasonic transducers. These transducers emit high-frequency sound waves, often in the ultrasonic range, which is beyond the range of human hearing. The device typically employs two sets of transducers – one set for emitting sound waves and the other for receiving them.

2. Propagation of Sound Waves: The emitted sound waves are directed into the flow of the heat transfer fluid, which can be a liquid like water or a glycol-water mixture. These sound waves travel through the fluid medium.

3. Upstream and Downstream Paths: The ultrasonic heat meter is equipped with both upstream and downstream transducers. Sound waves are transmitted along these two paths. The upstream path is against the flow of the fluid, while the downstream path is in the direction of the flow.

4. Transit Time Measurement: One of the key principles involves measuring the time it takes for sound waves to travel from the upstream transducer to the downstream transducer and back. When sound waves move with the flow of the fluid, they travel faster than when they move against the flow. The difference in transit time between the upstream and downstream paths is directly correlated to the velocity of the fluid.

5. Calculating Flow Rate: By determining the fluid's velocity, the heat meter can accurately calculate the volumetric flow rate of the heat transfer fluid. This data is crucial for the precise measurement of heat energy.

6. Temperature Measurement: In addition to measuring flow rate, an ultrasonic heat meter also gauges the temperature of the fluid as it enters and exits the heating or cooling system. The difference in temperature (ΔT) represents the thermal energy either added or removed by the system.

7. Thermal Energy Calculation: Armed with the flow rate and temperature difference data, the heat meter proceeds to calculate the thermal energy consumed or generated using the heat transfer fluid. This calculation is typically carried out using the heat energy equation: Q = m * c * ΔT, where Q represents the thermal energy, m stands for the mass flow rate, c denotes the specific heat capacity of the fluid, and ΔT signifies the temperature difference.

8. Data Logging and Display: The heat meter usually logs and displays the calculated thermal energy data. Many modern ultrasonic heat meters are equipped with digital interfaces that enable the transmission of this data to a central system for further analysis and billing purposes.

In summary, ultrasonic heat meters offer several advantages, including high accuracy, non-intrusive measurements, and minimal maintenance requirements. These meters are widely used in district heating and cooling systems, industrial processes, and residential heating systems to ensure the accurate measurement of thermal energy consumption, ultimately facilitating fair billing based on actual usage.
