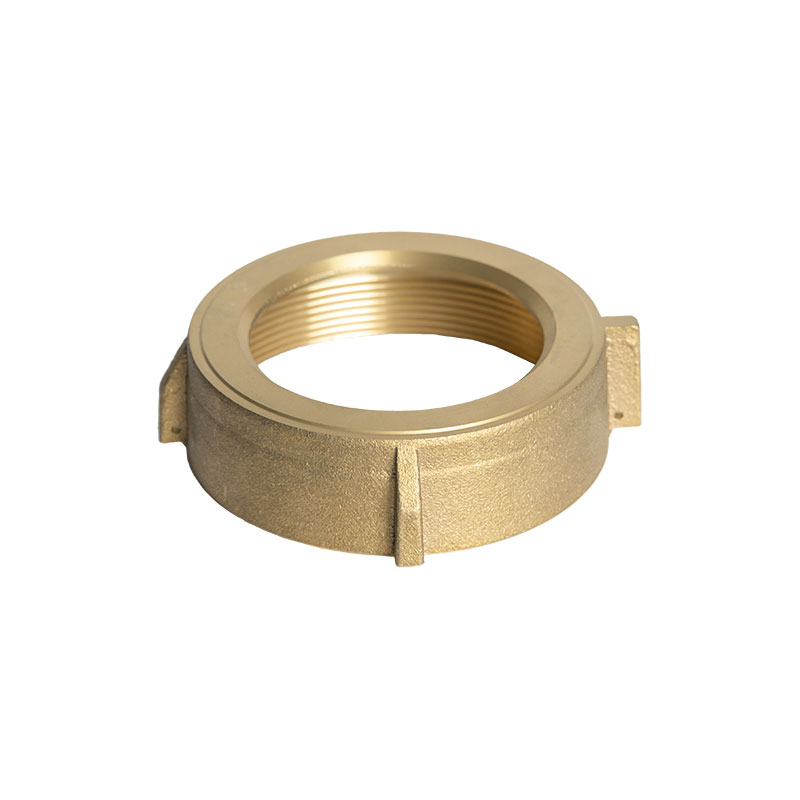

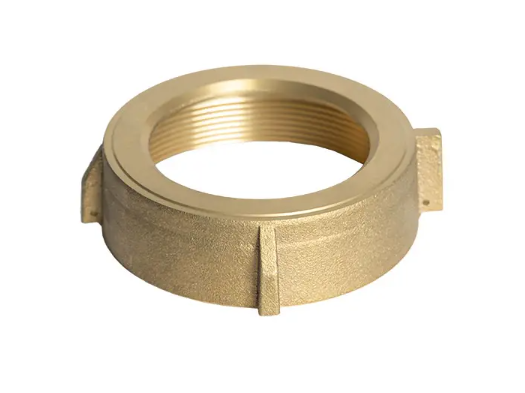

Our water meter brass head ring is a core precision fitting specially designed for water meter assembly, sealing and protection, providing a reliable supporting solution for water meter manufacturers, municipal maintenance contractors, engineering supporting providers and component bulk distributors. As an essential part of the water meter structure, this brass water meter fitting is used for fixed installation, sealing protection and pressure reinforcement of the water meter head, effectively preventing water leakage, loose structure and external damage to the meter core, ensuring long-term stable operation of the water meter.
Made of high-quality lead-free brass, this water meter head seal ring is precision machined to ensure perfect compatibility with mainstream water meter models on the market, including DN15-DN50 multi-jet water meters, dry dial water meters and other conventional types. We support full customization of size, material, surface treatment and structure, as well as large-scale stable bulk supply, fully meeting the needs of mass production line assembly, project retrofit and bulk distribution for our commercial clients.
This corrosion resistant brass water meter component is made of high-purity H59/H62 brass (lead-free optional), with excellent corrosion resistance, rust resistance, pressure resistance and anti-aging performance. It adapts to long-term water immersion, complex water quality and harsh working environments, without deformation, cracking or corrosion after long-term use, greatly extending the service life of the water meter and reducing after-sales costs for manufacturers and maintenance service providers.
Adopting high-precision CNC machining technology, the dimensional tolerance of this water meter brass head ring is controlled within ±0.02mm, ensuring a perfect fit with the water meter shell, dial cover and meter core. The precision threaded structure and smooth sealing surface achieve 100% leak-proof performance under rated working pressure, effectively avoiding water leakage, metering deviation and equipment failure caused by poor fitting, making it ideal for high-standard water meter production lines.
This custom water meter brass part is compatible with DN15 to DN50 mainstream water meter specifications, and can adapt to multi-jet, single-jet, dry type and other water meter types. We provide full customization services including size adjustment, material optimization, surface treatment and structural modification, fully matching the client's product design and production needs.
With a complete production line and strict quality control system, we have large-scale stable production capacity, meeting the continuous bulk supply needs of water meter manufacturers' assembly lines, as well as batch procurement needs of engineering retrofit projects and component distributors. All products undergo full inspection before delivery to ensure consistent batch quality, providing reliable supply guarantee for long-term cooperative commercial clients.
Parameter | Standard Specification | Customization Support |
Applicable Meter Size | DN15-DN50 | DN10-DN100 full range customization |
Base Material | H59/H62 Brass | Lead-free environmental brass optional |
Dimensional Tolerance | ±0.02mm | Custom tolerance per drawing requirements |
Working Pressure | ≤1.0Mpa | High pressure customization up to 1.6Mpa |
Applicable Temperature | ≤90℃ | High temperature resistance customization available |
Surface Treatment | Natural brass, nickel plating, chrome plating | Anodizing, passivation optional |
Compatible Connection | G3/4B to G2 1/2B standard threads | Custom thread and flange structure |
Water meter manufacturing assembly lines, the core supporting fitting for mass production of residential and industrial water meters, ideal for water meter manufacturers and flow equipment production enterprises.
Municipal water utility maintenance and retrofit projects, suitable for old water meter maintenance and replacement in municipal water supply networks, residential communities and rural drinking water projects, perfect for water utility maintenance contractors.
Commercial and residential water system upgrades, used for water meter component replacement in commercial buildings, hotels, apartment complexes and residential communities, providing reliable sealing for water system renovation projects.
Water meter component distribution and wholesale, perfect for industry distributors, importers and bulk purchasers, with flexible bulk order support and complete specifications to meet global market demands.
Our standard water meter brass head ring uses high-quality H59/H62 brass, with lead-free environmental protection brass and high-strength brass options available per client needs.
Standard specifications fit DN15-DN50 multi-jet water meters, dry dial water meters and other mainstream models, and we support full customization to fit non-standard models per client drawings.
The standard product has a rated working pressure of ≤1.0Mpa and applicable temperature ≤90℃, meeting conventional cold and hot water meter needs. High pressure and high temperature resistant customization is available.
Yes, we provide professional customized services, producing fully according to client drawings for size, structure, material, surface treatment and other details, to fully match production and project needs.
