Vertical Water Meter LXSGL-15E~25E
Location: China Minimum order quantity: -
Business Type: - Price: -
Brands: - Packing details: -
Certificate: - Delivery time: -
Model: - Payment method: -

Product Details

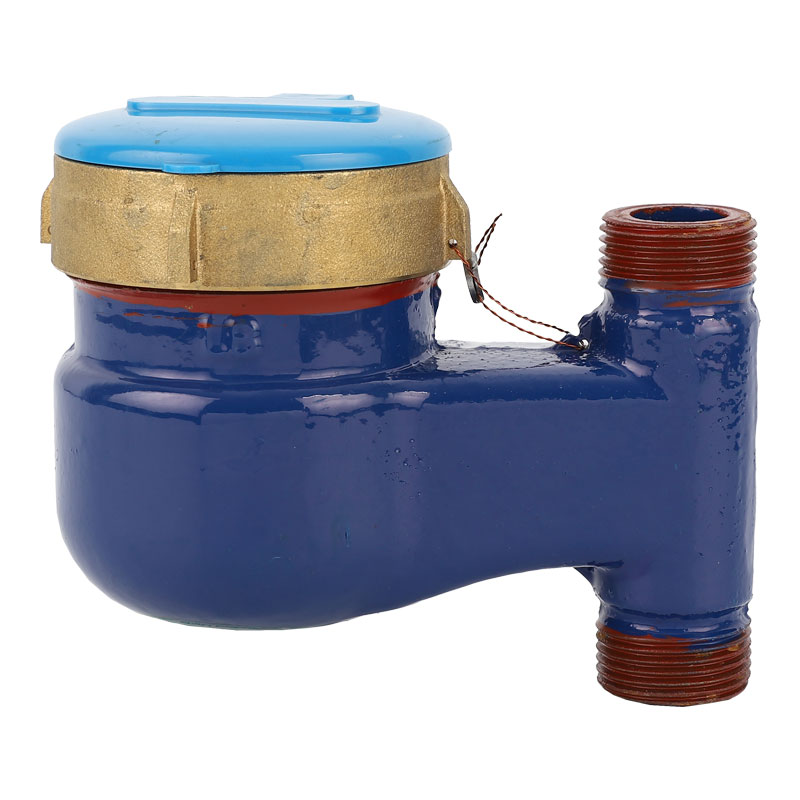

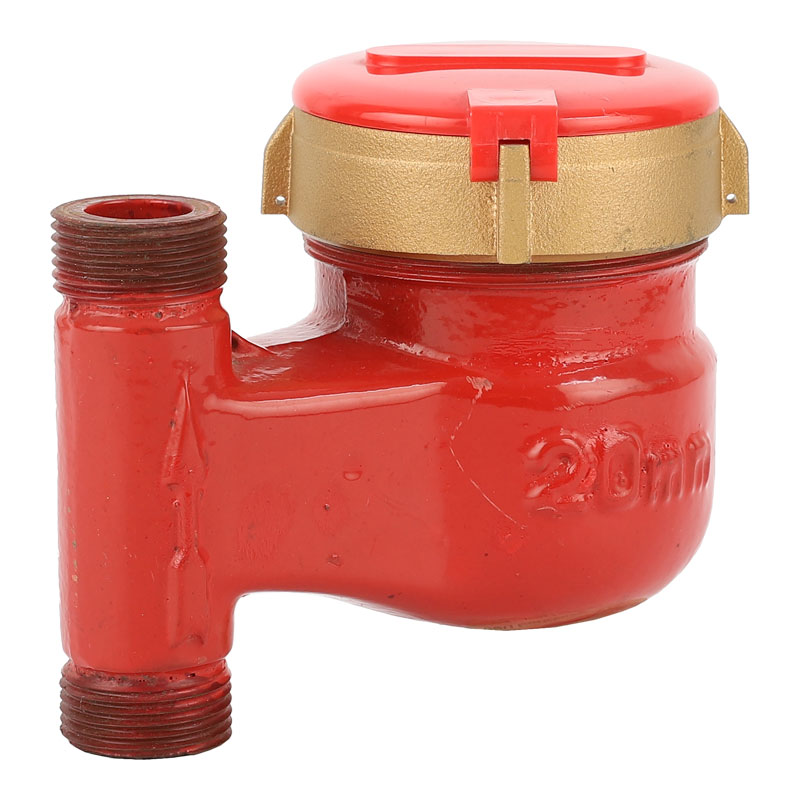

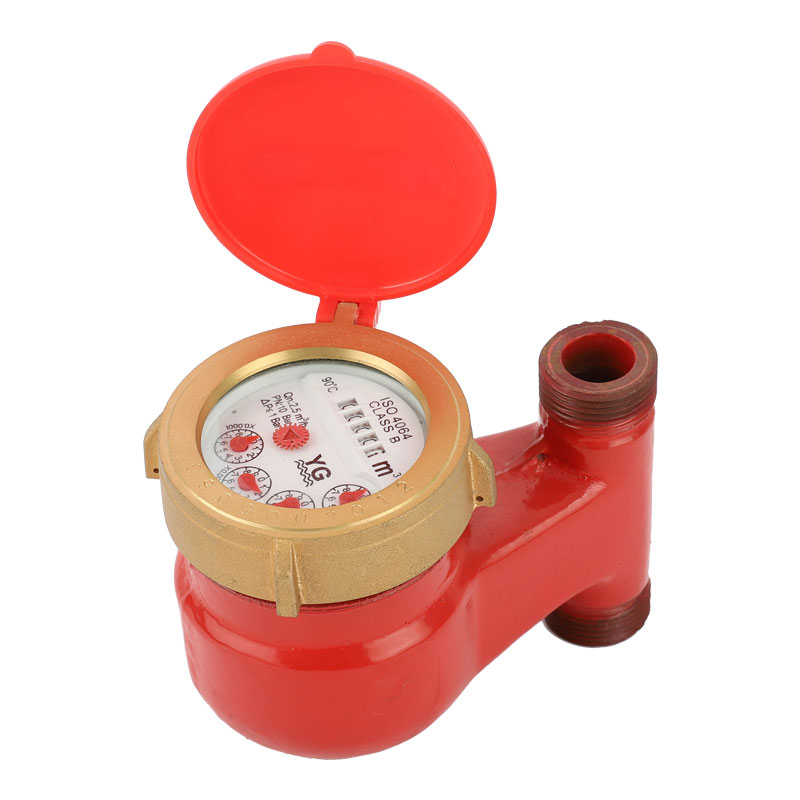

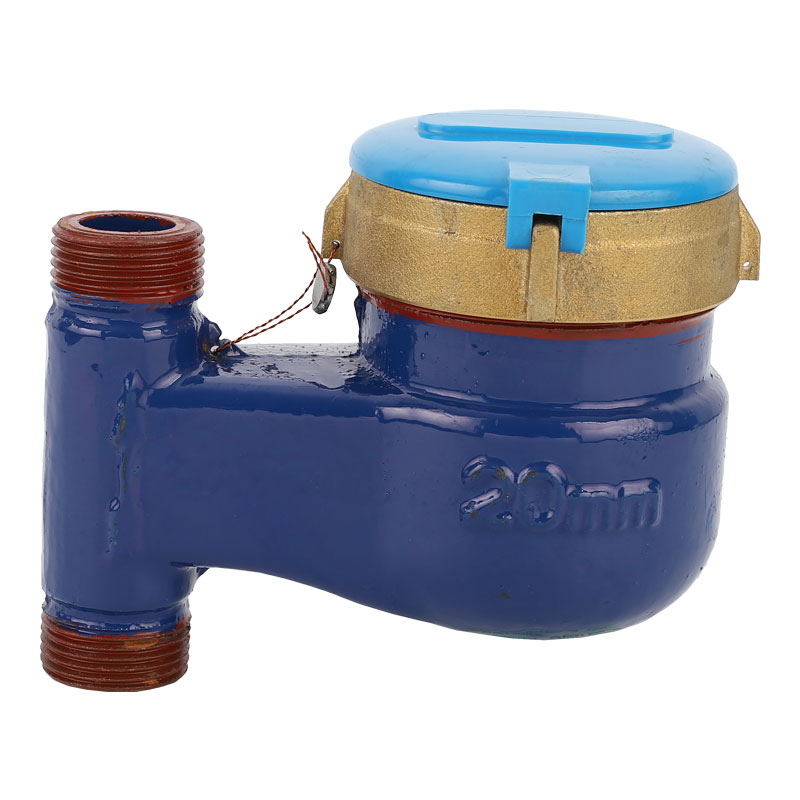

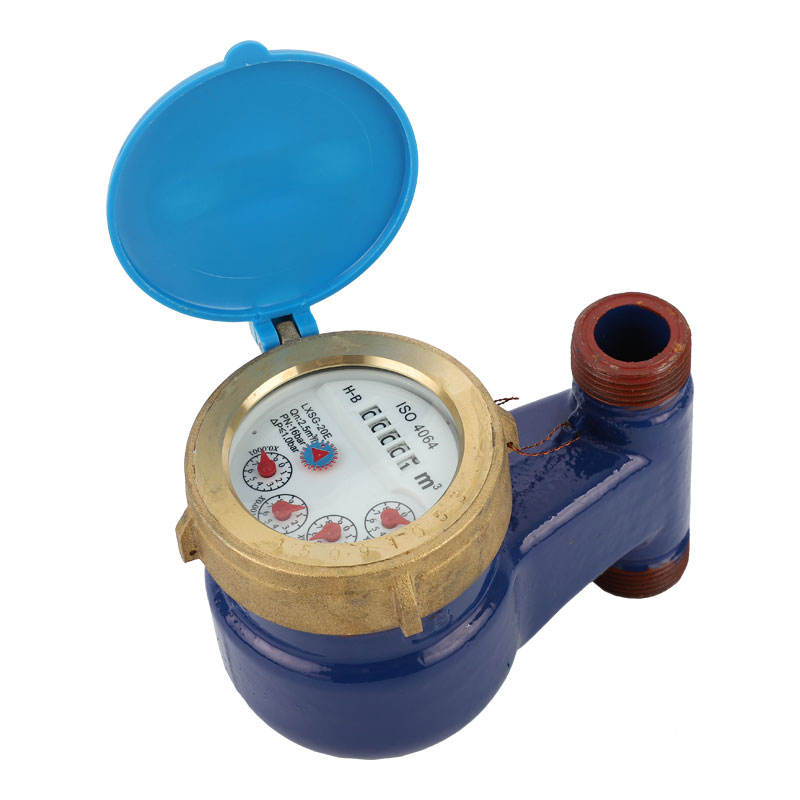

Rotary vane wheel vertical cold water meter

Model: LXSG-15E~20E



Main Features

●Multi-jet,vertical type

●Dry-dial, wet dial or liquid sealed for option.

●Iron body or Brass body for option.

●Available for cold water (30°C) and hot water (90°C), sizes Ø 15  to 25 mm (½” – 1”).

●Installed in vertical pipeline and is suitable for household as branch meter

●Conform to ISO4064 standard



MAIN TECHNICAL DATA



Meter size

Dia

DN

(mm)

Class

Qs

Overload Flow

Qp

Nominal Flow

Qt

Transitional Flow

Qmin

Min

 Flow

Min Reading Lectura

Max Reading Lectura

m3/h

1/h

m3

15

A

3

1.5

150

60

0.0001

99999

B

120

30

20

A

5

2.5

250

100

0.0001

99999

B

200

50

25

A

7

3.5

350

140

0.0001

99999

B

280

70



INDICATING ERROR



At low zone is ±5% from minimum flow rate  (qmin)  to transitional flow rate (qt) exclusive boundary

At high zone is ±2% from transitional flow rate (qt) to overload flow rate (qs)



DIMENSIONS AND WEIGHT



Meter size
Dia
DN
(mm)

L

B

H

Connecting Thread

Weight

length

Width

Height

mm

D

kg

15

95

1359

120

G3/4"B

1.5

20

99

150

130

G1"B

1.7

25

110

160

130

G11/4"B

3



WORKING CONDITION



Water temperature:≤50℃ for cold water meter

Water temperature:≤90℃ for hot water meter

Working pressure:≤1.0Mpa
