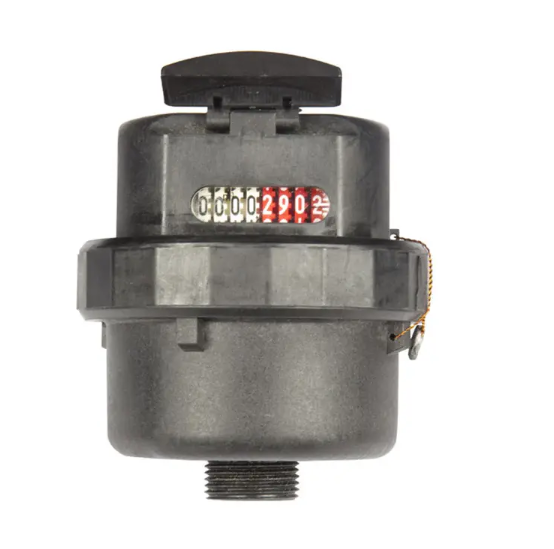

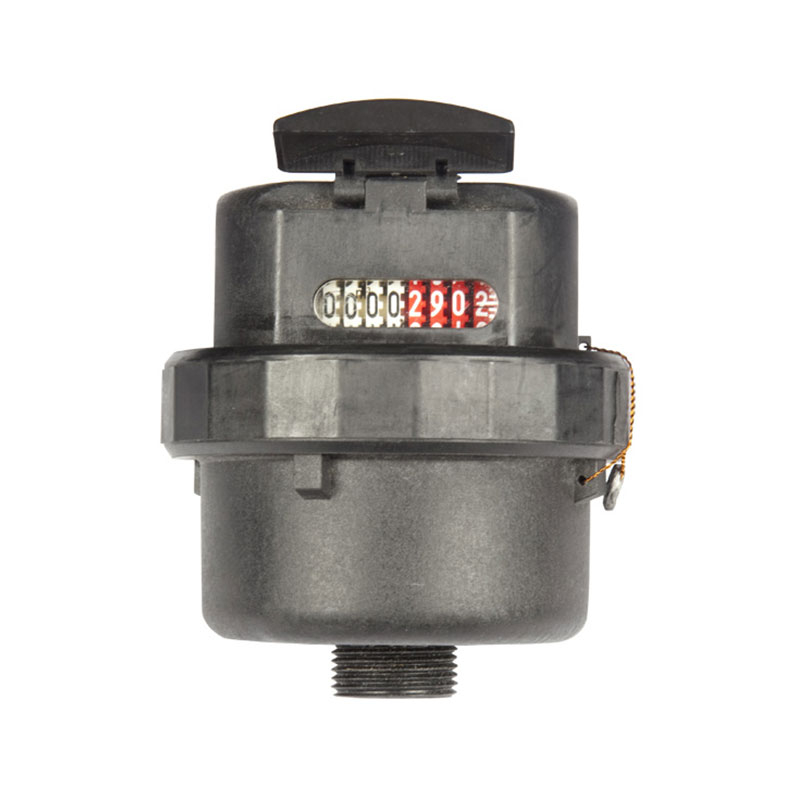

Wholesale Piston Water Meters LXH-15AS-20AS

Piston Water Meters LXH-15AS-20AS

1+
Views: 189
Piston Water Meters LXH-15AS-20AS
Location: China Minimum order quantity: -
Business Type: - Price: -
Brands: - Packing details: -
Certificate: - Delivery time: -
Model: - Payment method: -

Product Details

Main Features

●Volumetric water meter, Plastic nylon

●Sizes Ø 15mm (½”), Available for cold water (30°C)

●Selected high quality materials for steady & reliable characteristic and good looking

●Especially suitable for  the area ot bad water quality Note:technical data conform to ISO4064 Class C standard



MAIN TECHNICAL DATA

Meter size
Dia
DN
(mm)
Class qs
Overload
Flow
qs
Nominal
Flow
qs
Transitional
Flow
Qmin
Min
Flow
Min
Reading
Lectura
Max
Reading
Lectura
m3/h 1/h m3
15 C 3 1.5 22.5 15 0.0001 99999
20 C 5 2.5

37.5

25 0.0001 99999



INDICATING ERROR

At low zone is ±5% from minimum flow rate  (qmin)  to transitional flow rate (qt) exclusive boundary

At high zone is ±2% from transitional flow rate (qt) to overload flow rate (qs)



DIMENSIONS AND WEIGHT

Meter size
Dia
DN
(mm)
Length Width Height

Connrcting Thread

D

Weight

Kg

mm
15 115/165 86 115 G 3/4B 99999
20 130/190 94/103 115 G 1B 99999



WORKING CONDITION

Water temperature:≤50℃ for cold water meter

Water temperature:≤90℃ for hot water meter

Working pressure:≤1Mpa
