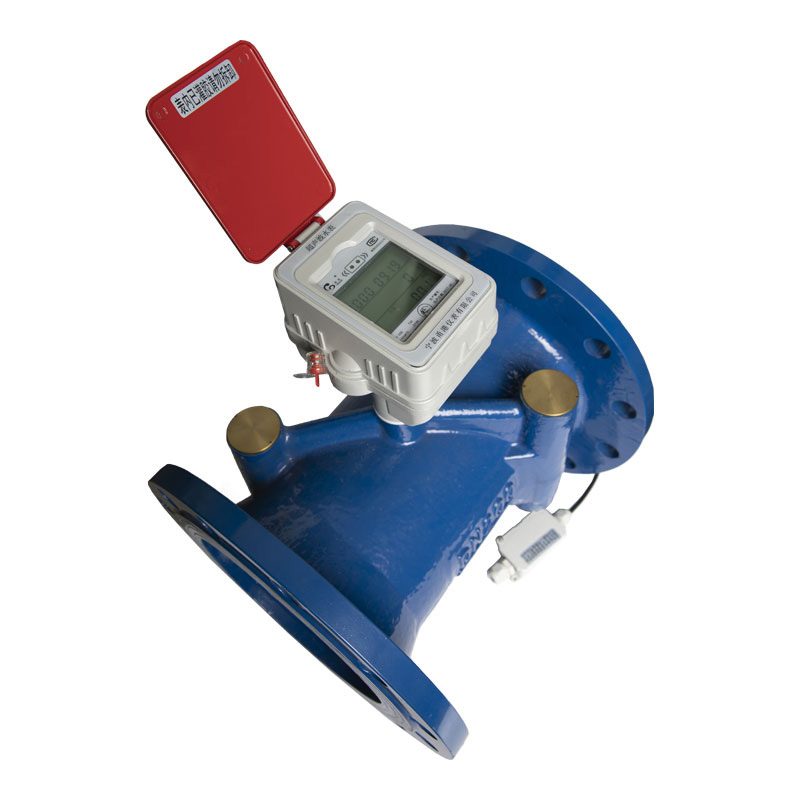

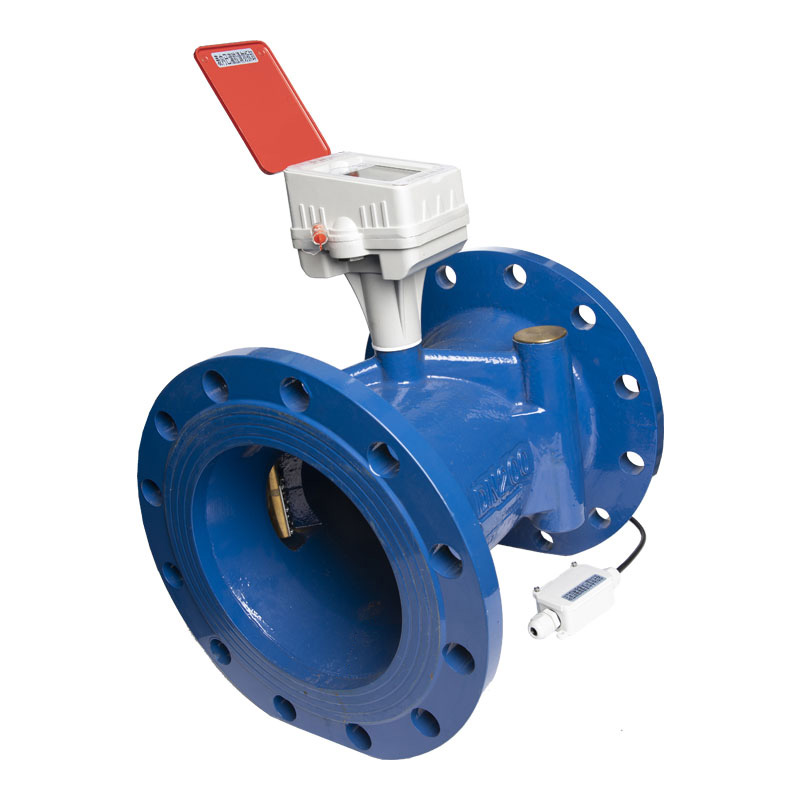

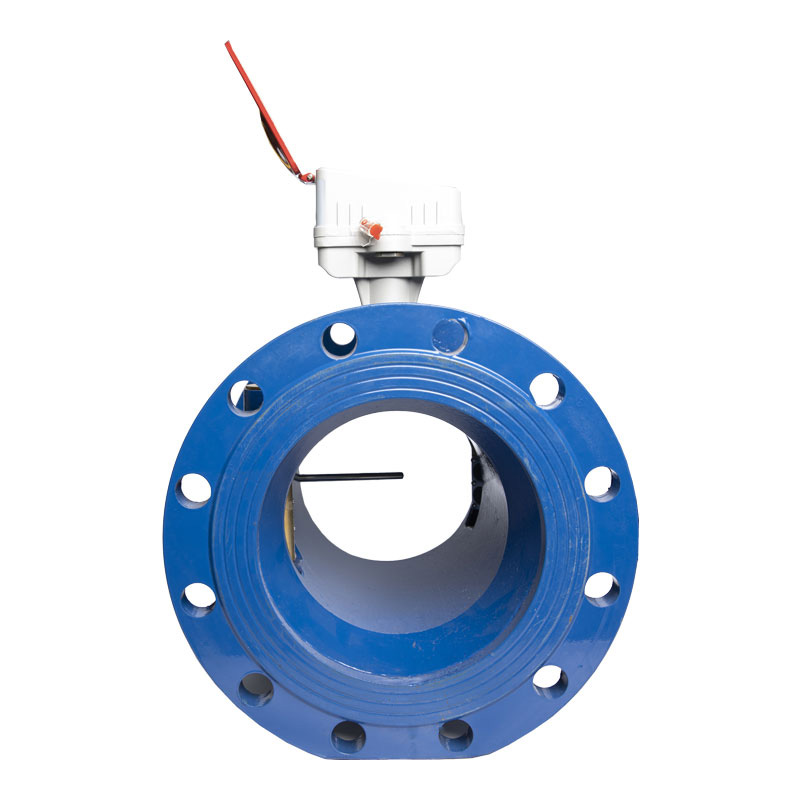

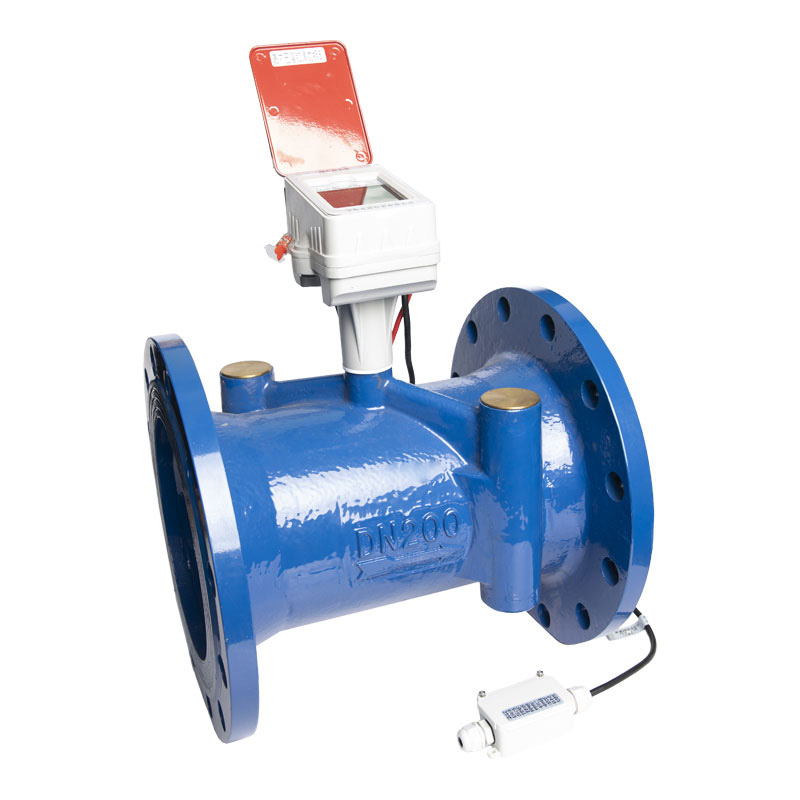

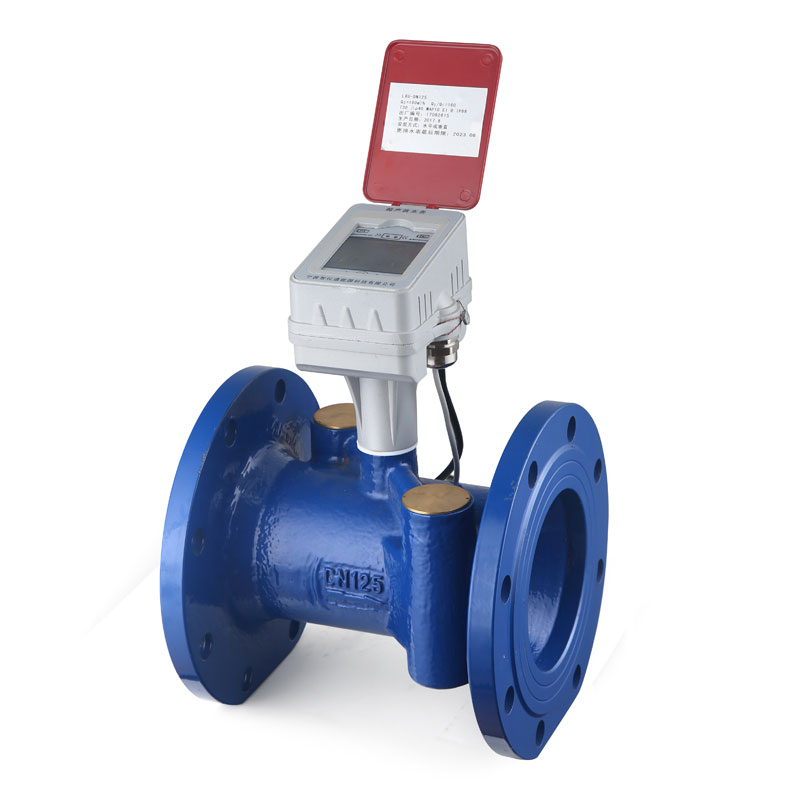

Large diameter ultrasonic water meter
Remote reading meter, low power consumption, small pressure loss, high precision, simultaneous measurement and display of flow rate, velocity, temperature, working time and other data information, automatic fault detection alarm, M-BUS/RS485/4-20mA/NB-IoT /LORA/GPRS and other remote transmission methods.
It can be combined with remote control valve, data collector, concentrator and management software to build "water metering intelligent management system" to realize water metering intelligent management
Description
Ultrasonic water meter is a kind of new water meter which can detect the time difference caused by the change of velocity when ultrasonic sound beam propagates in the water upstream and downstream, analyze and deal with the water velocity and further calculate the water flow rate
Features
1.Display the cumulative flow (m3), flow rate (m3 / h), temperature (℃), water meter number, total working time, fault information, etc
2.No transmission parts, minimum pressure loss, ultrasonic measurement principle, ensure long - term measurement under various complex conditions
3.Double channel design, measuring accuracy: Class 2
4.The standard communication interface is equipped with m-bus remote transmission interface, which can choose MBUS, RS485, 4-20ma, pulse, wireless 470MHz, wireless GPRS and other interfaces to realize the function of remote meter reading
5.With battery power, flow signal, pipeline leakage, pipeline burst, water flow direction and other self-test alarm function
6.Professional pipeline design to ensure the stability of the water field under test
MAIN TECHNICAL DATA
|
Meter size Dia DN (mm)
|
Q3（m³/h）
|
Q2（m³/h）
|
Q1（m³/h）
|
Q4（m³/h）
|
mm
|
Pulse
equivalent（L）
|
|
DN50
|
25
|
0.250
|
0.156
|
31.25
|
200
|
0.01
|
|
DN65
|
40
|
0.400
|
0.250
|
50
|
200
|
0.02
|
|
DN80
|
63
|
0.630
|
0.394
|
78.75
|
225
|
0.03
|
|
DN100
|
100
|
1.000
|
0.625
|
125
|
250
|
0.05
|
|
DN125
|
160
|
1.600
|
1.000
|
200
|
250
|
0.1
|
|
DN150
|
250
|
2.500
|
1.562
|
312.5
|
300
|
0.1
|
|
DN200
|
400
|
4.000
|
2.500
|
500
|
350
|
0.2
|
|
DN250
|
630
|
6.300
|
3.938
|
787.5
|
450
|
0.3
|
|
DN300
|
1000
|
10.000
|
6.250
|
1250
|
500
|
0.5
|
|
DN350
|
1000
|
10.000
|
6.250
|
1250
|
500
|
0.5
|
|
DN400
|
1600
|
16.000
|
10.000
|
2000
|
500
|
0.8
|
|
DN500
|
2500
|
25.000
|
15.625
|
3125
|
500
|
1.5
|
|
Measurement accuracy
|
At low zone is ±5% from minimum flow rate (q1) to transitional flow rate (q2) exclusive boundary
At high zone is ±2% from transitional flow rate (q2) to overload flow rate(q4)
|
|
Range ratio
|
Q3/Q1=160，Q2/Q1=1.6，Q4/Q3=1.25
|
|
Installation connection
|
Flange connections
|
|
Pressure loss grade
|
Δp40
|
|
Pressure grade
|
MAP10
|
|
Data storage
|
The history of the first 18 months of continuous storage
|
|
Power-off protection
|
After power failure, the accumulated flow and corresponding time can be recorded before power failure,and the metering function can be automatically restored after power recovery
|
|
Remote methods
|
Standard infrared, m-bus remote transmission (customizable RS485), pulse output
|
|
Power supply
|
Energy type lithium battery /MBUS remote transmission power supply
|
|
protection class
|
IP65（IP68 needs to customize）
|
|
Work environment
|
Temperature：-15°C～+55°C，
Environment relative humidity：<90%
|
|
Installation site
|
Horizontal or vertical
|
|
Durability
|
href="#/javascript:;" Service cycle≥6years
|

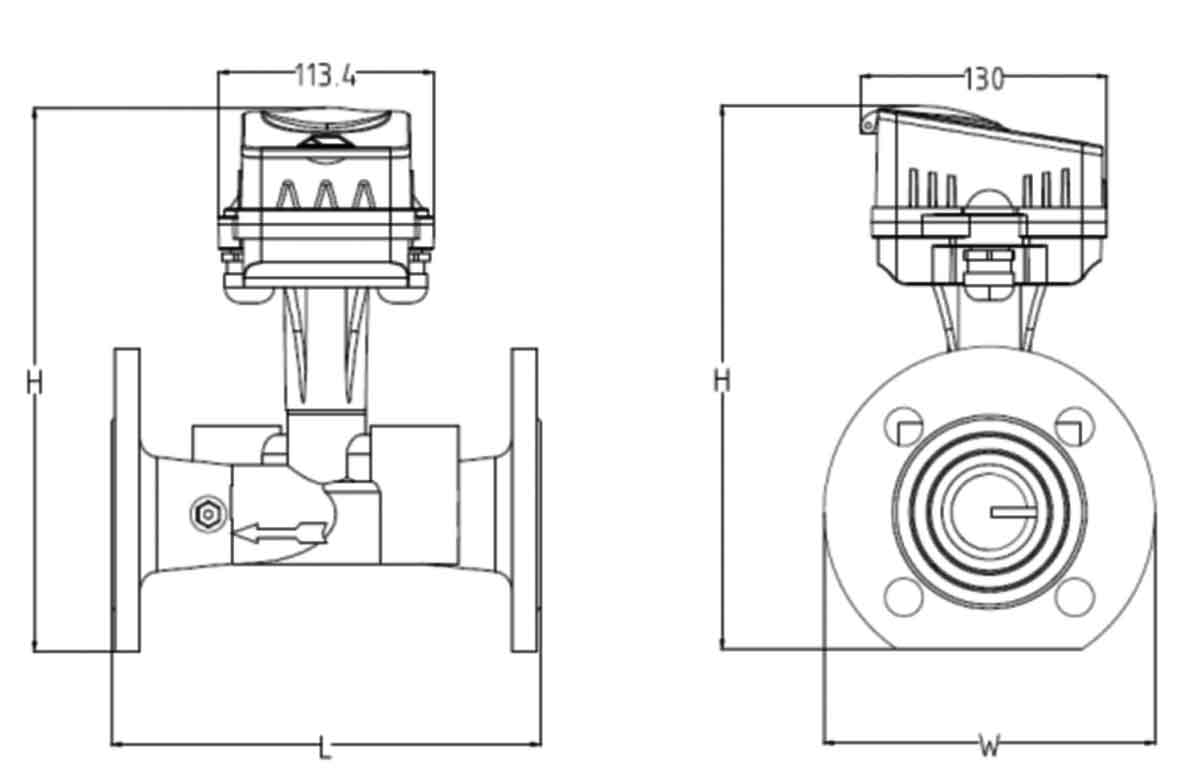

DIMENSIONS AND WEIGHT
|
Meter size Dia DN (mm)
|
length
L(mm)
|
Height H(mm)
|
Width W(mm)
|
Bolt specification
|
Bolt hole number
|
|
DN50
|
200
|
220
|
170
|
M16
|
4
|
|
DN65
|
200
|
240
|
185
|
M16
|
4
|
|
DN80
|
225
|
255
|
250
|
M16
|
8
|
|
DN100
|
250
|
275
|
270
|
M16
|
8
|
|
DN125
|
250
|
305
|
300
|
M16
|
8
|
|
DN150
|
300
|
335
|
330
|
M20
|
8
|
|
DN200
|
350
|
395
|
380
|
M20
|
8
|
|
DN250
|
450
|
455
|
450
|
M20
|
12
|
|
DN300
|
500
|
505
|
500
|
M20
|
12
|
|
DN350
|
500
|
565
|
560
|
M20
|
16
|
|
DN400
|
500
|
620
|
610
|
M24
|
16
|
|
DN500
|
500
|
620
|
720
|
M24
|
20
|
