Product Details
Main Features

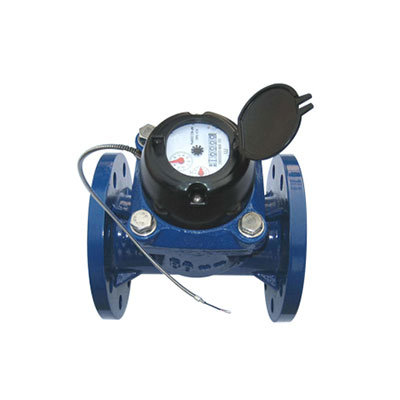

Irrigation water meter with pulse output
Transmission sensor: Reed switch
Body: Gray cast iron
Accuracy: Class A standard
Unique design and advanced testing measures ensure a secure transmission
Maximum distance between connected meter and a data collector: 150m
Applicable to various kinds of data collcetor
1. Dry-dial, Magnetic drive
2. Vacuum sealed register ensures the dial kept free from fog and keep the reading clear in a long term service
3. Selected high quality materials for steady & reliable characteristic

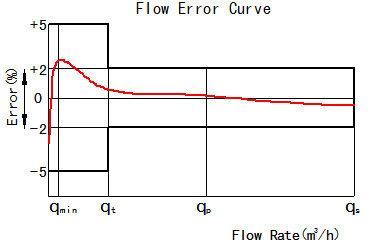

4. Measuring accuracy conform to ISO 4064 class A Standard
5. Low head loss
6. Register for universal use within this range detachable without removing the meter from the pipeline for a easy maintenance and replacement
Description
This range of water meter is used to measure the total quantity of cold water which consumed in industrial enterprise & mining,passing through the pipeline.
Working condition
Water temperature of cold water meter:≤50℃
Water temperature of hot water meter: ≤90℃
Working pressure:≤1.6MPa
Model
LXLNY-50-300
MAIN TECHNICAL SPECIFICATIONS FOR COLD WATER
|
Type
|
Size
(mm)
|
Class
|
qs
Overload
Flow
|
qp
Permanent
Flow
|
qt
Transitional
Flow
|
qmin
Min.
Flow
|
Min.
Reading
|
Max.
Reading
|
|
m3/h
|
m3
|
|
LXXG-50
|
50
|
A
|
30
|
15
|
4.5
|
1.2
|
0.0002
|
999,999
|
|
LXXG-65
|
65
|
A
|
50
|
25
|
7.5
|
2.0
|
0.002
|
999,999
|
|
LXXG-80
|
80
|
A
|
80
|
40
|
12
|
3.2
|
0.002
|
999,999
|
|
LXXG-100
|
100
|
A
|
120
|
60
|
18
|
4.8
|
0.002
|
999,999
|
|
LXXG-125
|
125
|
A
|
200
|
100
|
30
|
8
|
0.002
|
999,999
|
|
LXXG-150
|
150
|
A
|
300
|
150
|
45
|
12
|
0.002
|
999,999
|
|
LXXG-200
|
200
|
A
|
500
|
250
|
75
|
20
|
0.002
|
999,999
|
|
LXXG-250
|
250
|
A
|
800
|
400
|
120
|
32
|
0.02
|
9,999,999
|
|
LXXG-300
|
300
|
A
|
1200
|
600
|
180
|
48
|
0.02
|
9,999,999
|
DIMENSIONS
|
Type
|
Size
|
L
Length
|
H
Height
|
Connecting flange
|
|
ΦD1 Outside diameter
|
ΦD2 Bolt circle diameter
|
Connecting Bolts (n-M)
|
|
mm
|
|
LXXG-50
|
50
|
200
|
253
|
165
|
125
|
4-M16
|
|
LXXG-65
|
65
|
200
|
268
|
185
|
145
|
4-M16
|
|
LXXG-80
|
80
|
225
|
284
|
200
|
160
|
8-M16
|
|
LXXG-100
|
100
|
250
|
295
|
220
|
180
|
8-M16
|
|
LXXG-125
|
125
|
250
|
310
|
250
|
210
|
8-M16
|
|
LXXG-150
|
150
|
300
|
339
|
285
|
240
|
8-M20
|
|
LXXG-200
|
200
|
350
|
382
|
340
|
295
|
8-M20(1.0MPa)
|
|
12-M20(1.6MPa)
|
|
LXXG-250
|
250
|
400
|
433
|
395
|
350
|
12-M20(1.0MPa)
|
|
450
|
438
|
405
|
355
|
12-M24(1.6MPa)
|
|
LXXG-300
|
300
|
450
|
483
|
445
|
400
|
12-M20(1.0MPa)
|
|
500
|
488
|
460
|
410
|
12-M24(1.6MPa)
|
NOTE: The flange dimension conforms to ISO7005-2:1988 standard. Order for products of special requirements is also accepted.
