Wholesale Wireless Remote Valve Control Cold Water Meter NB-IoT

Wireless Remote Valve Control Cold Water Meter NB-IoT

0
Views: 163
Wireless Remote Valve Control Cold Water Meter NB-IoT
Location: China Minimum order quantity: -
Business Type: - Price: -
Brands: - Packing details: -
Certificate: - Delivery time: -
Model: - Payment method: -

Product Details

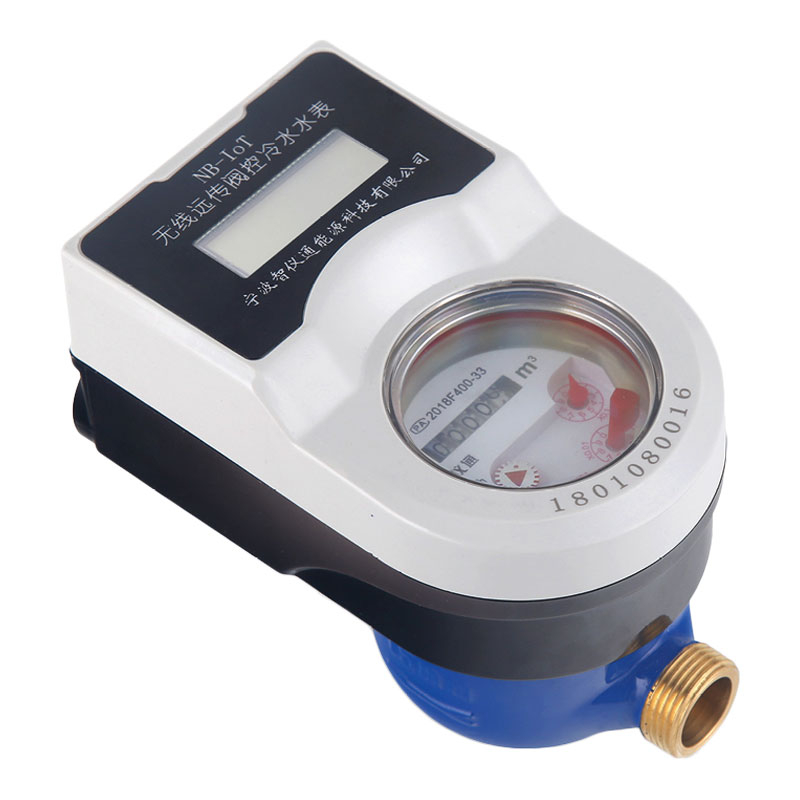

Wireless remote valve control cold water meter NB-IoT

LXSWF-15B~25B



Wireless meter reading, remote management, ladder water price, prepayment, Internet of things nb-iot technology, lower power consumption, mass connection, stable and reliable data transmission

It is applicable to the measurement of tap water flow in smart city, smart water service, smart community, residential, commercial, industrial park and other properties;Combine with software to build remote meter reading management system

Seamless access to multi-meter integration (electricity, water, gas and heat) intelligent management system, to achieve intelligent energy management of the Internet of things



Description

Wireless remote transmission valve-controlled cold water meter is an intelligent Internet of things water meter with electronic automatic sampling count, wireless data remote transmission of Internet of things (nb-iot), remote valve-controlled and other functions for measuring the total volume of water flowing through tap water pipelines.



Features

1.Anti-theft water function: when there is strong magnetic interference metering signal, the water meter automatically closes the valve until the strong magnetic disappear, to prevent the use of strong magnetic water theft.

2.Under voltage prompt function: when the built-in battery voltage is insufficient, the automatic reporting system prompts for timely battery replacement.

3.Anti-rust dead valve function: automatic switch valve twice a month to prevent the valve from rust dead phenomenon caused by long time action, improve the stability of operation.

4.Internet of things(NB-IoT) wireless communication technology, signal coverage is wide, can ensure the normal transmission of data.

5.Battery compartment with convenient battery replacement for on-site battery replacement.

6.Protection level: IP68



MAIN TECHNICAL DATA



Meter size
Dia DN

(mm)

Class

Q4

Q3

Q2

Q1

DN(mm)

m3/h

L/h

DN15

2 level

3.125

2.5

50

31.25

DN20

2 level

5

4

80

50

DN25

2 level

5

4

80

50



Working condition:



Cold Water temperature ≤30°C

Working pressure≤1.0Mpa

Power supply: 3.6v lithium battery



INDICATING ERROR



At low zone is ±5% from minimum flow rate (qmin) to transitional flow rate (qt) exclusive boundary

At high zone is ±2% from transitional flow rate (qt) to overload flow rate(qs)

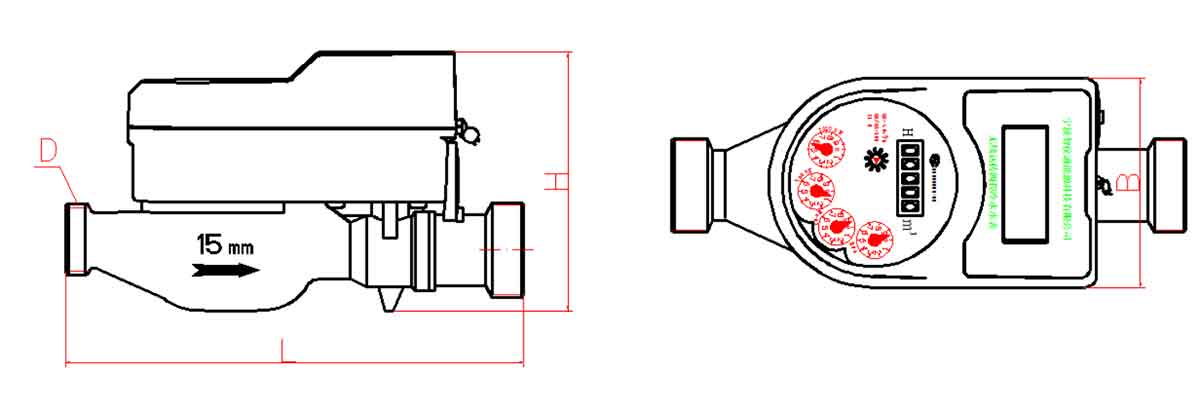

DIMENSIONS AND WEIGHT



Meter size
Dia DN (mm)

L
length

B
Width

H
Height

Connecting Thread

Weight

mm

D

Kg

15

165

91

145

G3/4

1.3

20

195

91

145

G1

1.4

25

225

91

142

G11/4

1.75





Installation and maintenance



1.The diameter of the water meter is selected according to the pipe and the flow rate. The product cannot be used for hot water measurement in hot water pipes.
2.Installation location should avoid exposure to the sun, ice, pollution and water flooding, so as to disassemble and read the meter;
3.According to the case side arrow pointing to the direction of horizontal installation of water flow, and make the head literally up, the installation height should be lower than the height of the tap;
4.The newly installed pipe must be cleaned of stones, silt, hemp and other sundries in the pipe before the water meter can be installed to avoid the use of water meter fault;
5.Water meter and pipe should be connected by connecting pipe, sealing washer, connecting nut, do not violently disassemble and install, to avoid human damage to the normal use of water meter;

About Zhiyitong Energy

Ningbo Zhiyitong Energy Technology Co., Ltd. is a set of production, research and development, sales and technical services as one of the high-tech enterprises. The company is located in the west industrial park, xinpu town, cixi city, south bank of the world-famous hangzhou bay bridge, with a large manufacturing center of 42,600 square meters.The company has a registered capital of 50 million yuan, with an annual output of more than 1.5 million meters of various types, and its products are sold to more than 20 countries and regions such as Europe, Africa, the Middle East and southeast Asia.

As well known Wireless Remote Valve Control Cold Water Meter NB-IoT suppliers in China, Our products mainly involve residential water and industrial water flow measurement, heating system heat measurement and other applications. We also wholesle Wireless Remote Valve Control Cold Water Meter NB-IoT in bulk. Besides the customized parts,we also produce all kinds of conventional water and heat meters in line with international standards. OEM/ODM available.
