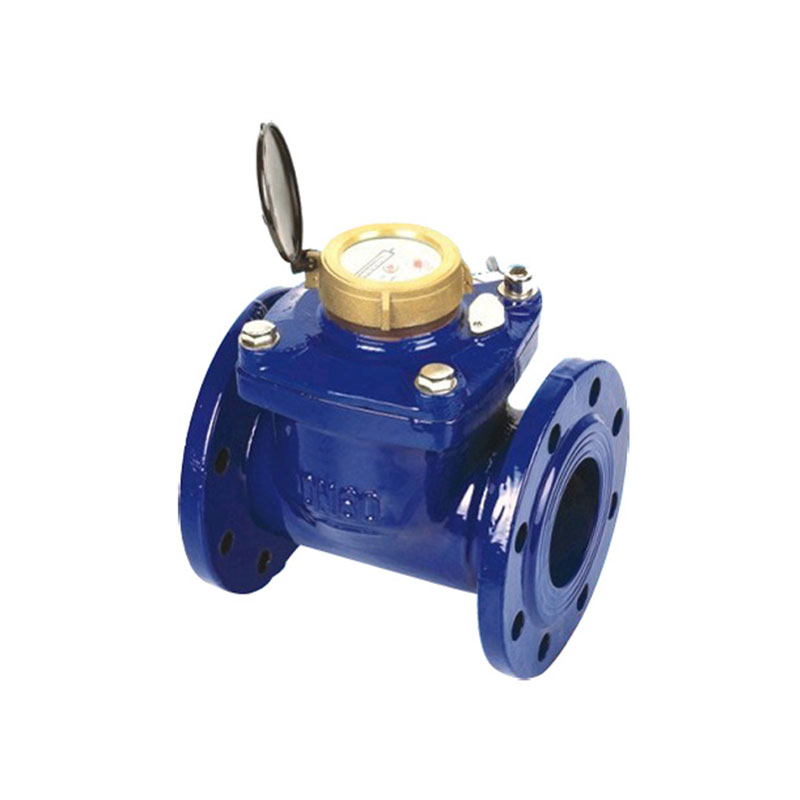

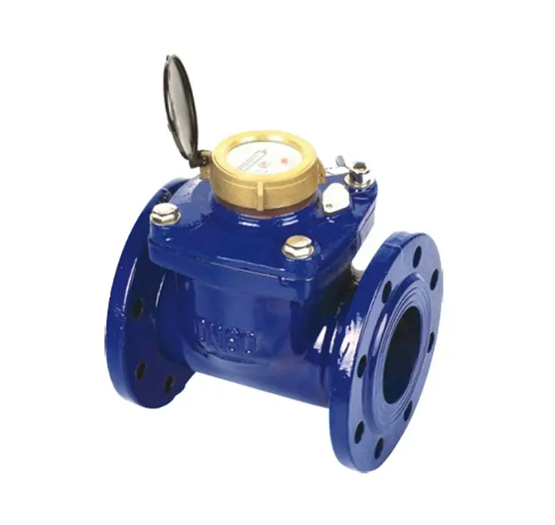

The LXLC-50-200 Removable Insert Woltman Water Meter is a heavy-duty large flow water meter purpose-built for continuous, high-volume water measurement in municipal, commercial, and industrial settings. This horizontal Woltman meter features a fully removable measuring insert and durable brass ring construction, delivering reliable performance for total water consumption tracking across DN50 to DN200 (2” – 8”) pipeline sizes. Compliant with ISO 4064 Class B standards, this industrial flow meter supports both cold and hot water applications, with pre-configured compatibility for pulse output monitoring, making it the ideal solution for business clients requiring low-maintenance, long-lasting bulk water metering.
The standout removable insert design allows full servicing and component replacement without removing the meter from the pipeline, eliminating costly pipeline shutdowns and reducing maintenance labor time by up to 80% for municipal water utilities and commercial facility managers.
The register assembly is fully interchangeable across all DN50-DN200 models in the range, streamlining spare parts inventory, reducing stock holding costs, and simplifying on-site repairs for water service operators with multi-site portfolios.
Built with a high-grade brass ring and premium corrosion-resistant materials, this pulse output water meter delivers extended service life even in aggressive water conditions, reducing replacement frequency and total cost of ownership for enterprise customers.
Model
LXLC-50-200m
MAIN TECHNICAL DATA
Size | Class | Normal | Transitional | Min | Min | Max |
m3/h | m3 | |||||
mm | ||||||
50 | A | 15 | 4.5 | 1.2 | 0.01 | 999999.99 |
B | 3 | 0.45 | ||||
80 | A | 40 | 12 | 3.2 | 0.01 | |
B | 8 | 1.2 | ||||
100 | A | 60 | 18 | 4.8 | 0.01 | |
B | 12 | 1.8 | ||||
150 | A | 150 | 45 | 12 | 0.01 | 999999.9 |
B | 30 | 4.5 | ||||
200 | A | 250 | 75 | 20 | 0.01 | |
B | 50 | 7.5 | ||||
DIMENSIONS AND WEIGHT
Specification | L | D | D1 | H | Flange boit | Weight |
m3/h | d x n | Kg | ||||
50 | 190 | Φ 195 | Φ 160 | Φ 239 | M16 x 8 | 13 |
80 | 225 | Φ 195 | Φ 160 | Φ 239 | M16 x 8 | 17 |
100 | 250 | Φ 215 | Φ 180 | Φ 259 | M16 x 8 | 20 |
150 | 300 | Φ 280 | Φ 240 | Φ 300 | M25 x 8 | 33 |
200 | 350 | Φ 335 | Φ 295 | Φ 361 | M20 x 8 | 47 |
Dry-dial magnetic drive structure with vacuum-sealed register, preventing fogging and ensuring lifelong clear readability
Removable measuring insert design for in-line maintenance, no pipeline disassembly required
Heavy-duty brass ring construction for enhanced corrosion resistance and structural durability
Pre-equipped for impulse emitter installation, enabling seamless integration with smart pulse monitoring systems post-installation
Optimized flow path design for ultra-low head loss, reducing energy costs for continuous bulk water distribution
Compliance with ISO 4064 Class B accuracy standards, ensuring reliable billing and regulatory compliance
This removable insert Woltman water meter is perfectly suited for:
Municipal water distribution and bulk supply networks
Commercial building and shopping complex water management
Water treatment plant process flow monitoring
Agricultural bulk irrigation systems
Industrial manufacturing facility water consumption tracking
Residential community bulk water metering
As a trusted China-based manufacturer and supplier of industrial Woltman water meters, we combine end-to-end R&D, production, and technical support capabilities to deliver tailored solutions for our business clients worldwide. Our 42,600 square meter manufacturing center has an annual production capacity of over 1.5 million meters, with products exported to more than 20 countries across Europe, Africa, the Middle East, and Southeast Asia. We specialize in bulk wholesale orders, custom engineering for unique project requirements, and flexible OEM/ODM services, with a strict quality control process that ensures every meter meets international standards before dispatch. Our dedicated technical team provides full after-sales support, helping you optimize your metering solutions for maximum operational efficiency.
The removable insert design allows for full servicing and replacement without removing the meter body from the pipeline, though standard pipeline shutdown procedures are recommended for safe maintenance in high-pressure systems.
Yes, we offer dedicated configurations for cold water (≤50℃) and hot water (≤90℃) applications, with materials rated for continuous high-temperature operation.
Yes, we provide full custom component design, branding, and configuration services, along with OEM/ODM support to meet your unique project specifications.
The meter delivers a ±2% error margin in the high flow zone (from transitional to overload flow rate) and ±5% in the low flow zone (from minimum to transitional flow rate), compliant with ISO 4064 Class B standards.
