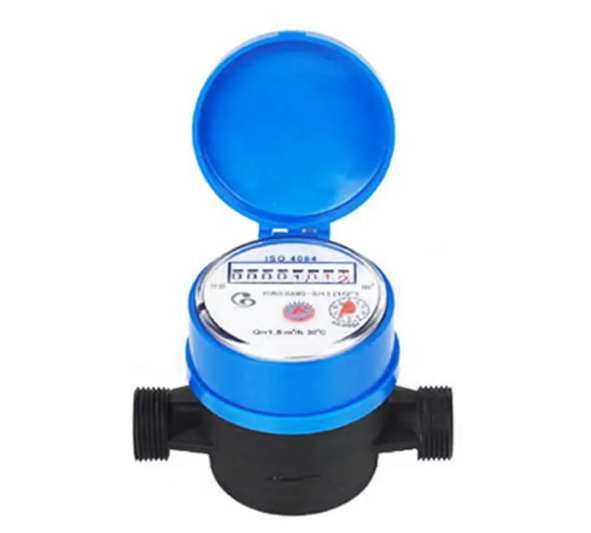

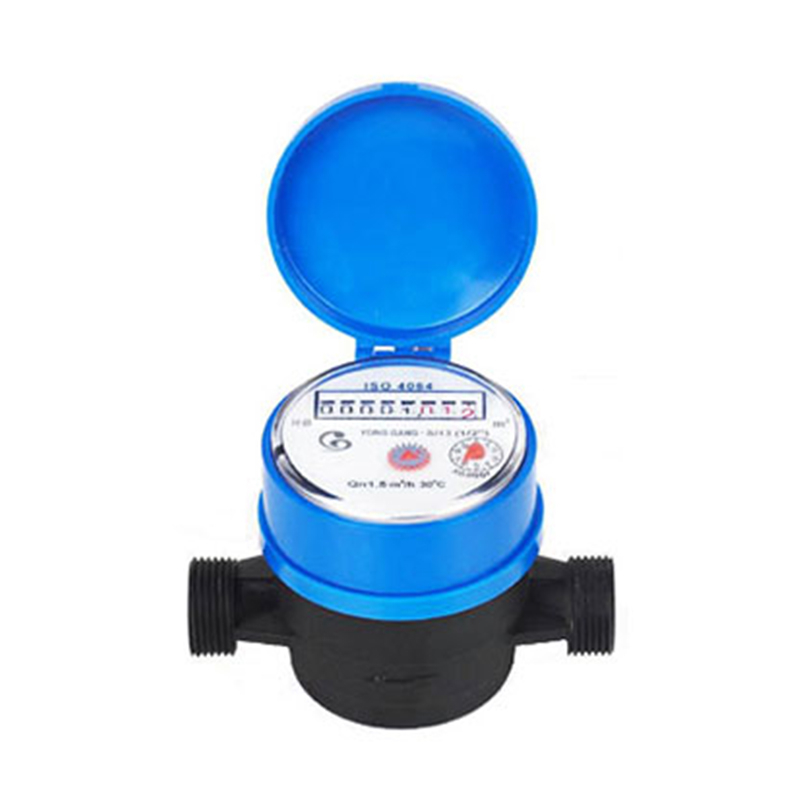

Our LXSG-13D1S anti-magnetic single-jet water meters are specialized flow measurement solutions designed for residential water metering scenarios. Featuring a single-jet structure, dry-dial design, and magnetic drive technology, this series delivers superior resistance to external magnetic interference, ensuring stable and accurate water consumption measurement. Made of high-strength plastic nylon material, the meter is compact, lightweight, and fully compliant with ISO 4064 Class B standards, making it the preferred choice for water utility operators, real estate development enterprises, and municipal engineering contractors seeking reliable bulk water metering solutions.
The single-jet dry-dial water meter adopts a fully enclosed magnetic drive structure and professional anti-magnetic design, which can effectively block external strong magnetic interference and prevent metering tampering. This feature fully protects the revenue of water utility companies and reduces non-technical water loss in residential water supply networks.
This series strictly meets the accuracy requirements of ISO 4064 Class B standards, with a measuring error of ±2% in the high flow zone and ±5% in the low flow zone. The built-in internal adjusting device ensures long-term measurement stability, with a minimum reading of 0.0001 m³ and a maximum cumulative reading of 99999 m³, meeting the precise billing needs of residential water supply.
With a miniaturized structure and lightweight design, the meter occupies minimal installation space, adapting to the narrow pipeline layout of residential buildings. The standard threaded connection is compatible with most existing residential water supply pipelines, enabling fast on-site installation, which greatly reduces the construction cost and cycle for engineering contractors in bulk installation projects.
The main body of the meter is made of high-quality reinforced nylon plastic, which has excellent corrosion resistance, anti-aging performance, and pressure resistance. With a maximum working pressure of 1.6 MPa, it can maintain stable operation in long-term domestic water supply environments, reducing later maintenance and replacement costs for property management and water utility operators.
MAIN TECHNICAL DATA
Meter size | Class | qs | qs | qs | Qmin | Min | Max |
m3/h | 1/h | m3 | |||||
13 | A | 3 | 1.5 | 150 | 60 | 0.0001 | 99999 |
B | 120 | 30 | |||||
20 | A | 5 | 2.5 | 250 | 100 | 0.0001 | 99999 |
B | 200 | 50 | |||||
25 | A | 7 | 3.5 | 350 | 140 | 0.0001 | 99999 |
B | 280 | 70 | |||||
INDICATING ERROR
At low zone is ±5% from minimum flow rate (qmin) to transitional flow rate (qt) exclusive boundary
At high zone is ±2% from transitional flow rate (qt) to overload flow rate (qs)
DIMENSIONS AND WEIGHT
Meter size | Length(L) | Width(B) | Height(H) | Connecting Thread | Weight |
mm | |||||
13 | 110 | 80 | 80 | G 3/4B | 0.7 |
20 | 130 | 80 | 80 | G 1''B | 0.95 |
25 | 160 | 80 | 93 | G 11/4''B | 1.4 |
WORKING CONDITION
Water temperature：≤50℃ for cold water meter
Water temperature：≤90℃ for hot water meter
Working pressure：≤1.6Mpa
Single-jet, dry-dial structure with magnetic drive, fully anti-external magnetic interference
High-strength nylon plastic body, corrosion-resistant and lightweight
Built-in internal adjustment device for long-term measurement stability
Ultra-low minimum reading for precise small-flow metering
Wide measuring range, adapting to diverse residential water usage scenarios
Clear dial display for easy on-site reading and data collection
Our residential single-jet water meters are widely applicable to:
Household water consumption metering and billing for apartment and residential buildings
Bulk supporting projects for commercial housing and affordable housing development
Old residential community water meter renovation and upgrading projects
Terminal water metering for municipal water supply network systems
Small commercial premises water consumption monitoring
Water utility companies’ regional water supply metering management projects
As a trusted professional manufacturer of flow measurement instruments in China, we possess a 42,600 square meter modern production base, with a registered capital of 50 million RMB and an annual production capacity of over 1.5 million meters. Our products are sold to more than 20 countries and regions around the world, with a complete R&D, production, quality control, and technical service system. We provide comprehensive support for our commercial clients, including large-scale bulk supply, customized product development, and flexible OEM/ODM services. All our products are manufactured in strict accordance with international metering standards, delivering stable, cost-effective water metering solutions for water utility operators, engineering contractors, and real estate developers globally.
Our LXSG-13D1S single-jet water meters fully comply with ISO 4064 Class B standards, with a measurement error of ±2% in the high flow zone and ±5% in the low flow zone, ensuring accurate and reliable billing for water consumption.
Yes. The meter adopts a professional anti-magnetic design and fully enclosed magnetic drive structure, which can effectively resist external strong magnetic interference and prevent illegal metering tampering, protecting the interests of water supply operators.
The main body of the meter is made of high-strength reinforced nylon plastic, which has excellent corrosion resistance, anti-aging performance, and pressure resistance, suitable for long-term use in domestic water supply environments.
The rated maximum working pressure of the meter is 1.6 MPa. The standard cold water model is suitable for water temperature ≤50℃, and the optional hot water model can support a maximum temperature of ≤90℃, adapting to conventional water supply system requirements.
