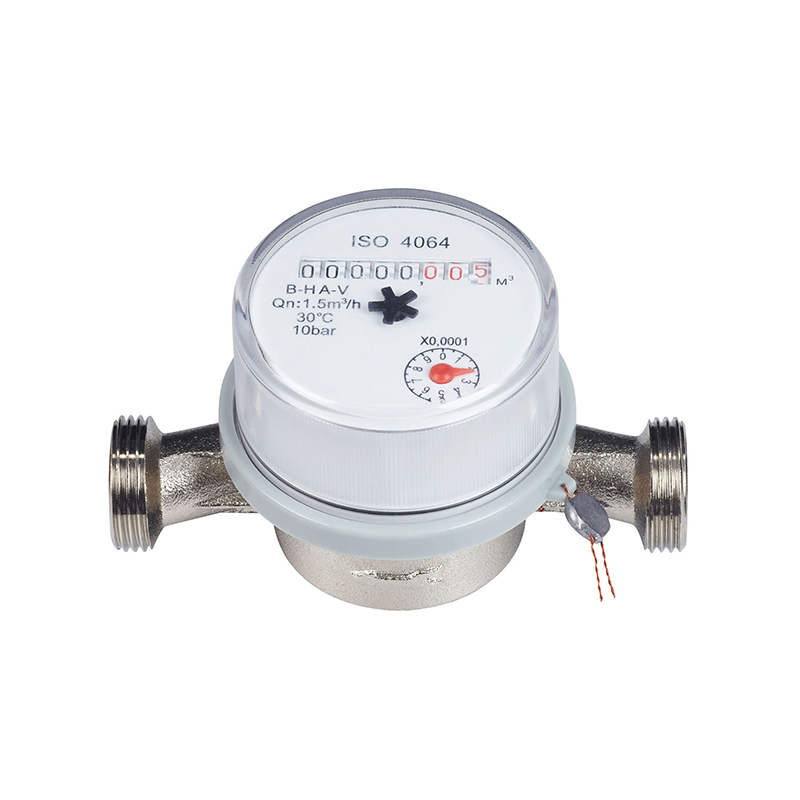

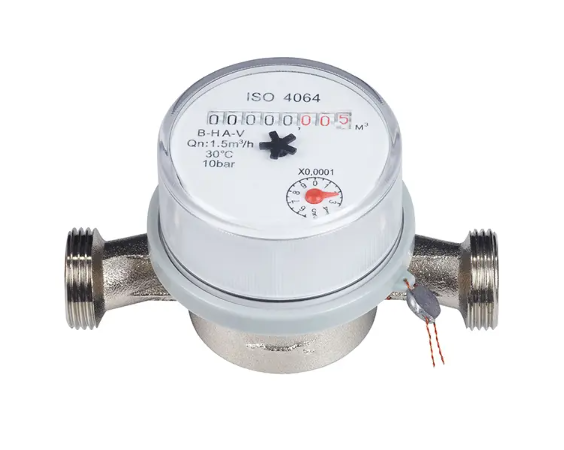

Our single-jet water meter (Model: LXSG-13D5C-25D5C) is a high-precision, durable flow measurement solution engineered for residential and light commercial water metering applications. Manufactured by a leading Chinese high-tech enterprise with over 1.5 million units annual output, this dry-dial, magnetic-driven water meter complies strictly with ISO 4064 Class B standards, delivering reliable and consistent measurement performance for global commercial buyers, project contractors and water utility operators. Available in diameters from DN13 to DN25 (½” – 1”), this residential single-jet water meter supports both cold water (≤30℃ standard, ≤50℃ for cold water models) and hot water (≤90℃) applications. The meter body is crafted from nickel-plated brass for superior corrosion resistance and long service life, with optional anti-magnetic or non-magnetic configurations to meet diverse project requirements. We support bulk wholesale orders, as well as full OEM/ODM customization to align with your brand and technical specifications.
Our ISO 4064 Class B single jet water meter delivers industry-leading measurement accuracy, with an indicating error of ±2% in the high flow zone (from transitional flow rate qt to overload flow rate qs) and ±5% in the low flow zone (from minimum flow rate qmin to transitional flow rate qt, exclusive boundary). The built-in inner adjusting device ensures long-term stability of measurement precision, even after years of continuous use, reducing calibration and replacement costs for bulk purchasers and project operators.
Crafted from nickel-plated brass, this brass single jet water meter offers exceptional resistance to corrosion, rust and water hammer, making it suitable for diverse water supply environments. The dry-dial structure with magnetic drive eliminates water fogging on the dial, ensuring clear and accurate reading at all times. Users can select between anti-magnetic and non-magnetic configurations, as well as cold or hot water models, to match specific project needs.
With a compact, lightweight design, this anti-magnetic single jet water meter features standard threaded connections for universal compatibility and fast, easy installation. The small footprint makes it ideal for tight installation spaces in residential buildings, while the standardized interface ensures strong interchangeability, reducing labor and material costs for large-scale new construction and retrofitting projects.
MAIN TECHNICAL DATA
Meter size | Class | qs | qs | qs | Qmin | Min | Max |
m3/h | 1/h | m3 | |||||
13 | A | 3 | 1.5 | 150 | 60 | 0.0001 | 99999 |
B | 120 | 30 | |||||
20 | A | 5 | 2.5 | 250 | 100 | 0.0001 | 99999 |
B | 200 | 50 | |||||
25 | A | 7 | 3.5 | 350 | 140 | 0.0001 | 99999 |
B | 280 | 70 | |||||
INDICATING ERROR
At low zone is ±5% from minimum flow rate (qmin) to transitional flow rate (qt) exclusive boundary
At high zone is ±2% from transitional flow rate (qt) to overload flow rate (qs)
DIMENSIONS AND WEIGHT
Meter size | Length(L) | Width(B) | Height(H) | Connecting Thread | Weight |
mm | |||||
13 | 110 | 80 | 80 | G 3/4B | 0.7 |
20 | 130 | 80 | 80 | G 1''B | 0.95 |
25 | 160 | 80 | 93 | G 11/4''B | 1.4 |
WORKING CONDITION
Water temperature：≤50℃ for cold water meter
Water temperature：≤90℃ for hot water meter
Working pressure：≤1.6Mpa
This single-jet dry dial water meter is designed for a wide range of metering scenarios, with a primary focus on:
Multi-story residential apartment buildings and townhouse complexes
Light commercial premises including small retail shops and office auxiliary spaces
Municipal water utility residential metering projects
Property management old meter retrofitting and upgrade projects
Bulk metering for rental housing and student dormitory facilities
Residential water supply systems in new real estate development projects
All our single-jet water meters are manufactured in strict accordance with ISO 4064 Class B standards, with full compliance to global water supply industry regulations, making them suitable for import and use in over 20 countries and regions across Europe, Africa, the Middle East and Southeast Asia.
Yes. We offer dedicated hot water models that support continuous operation at temperatures up to 90℃, while standard cold water models are rated for temperatures up to 50℃. You can select the appropriate model based on your project’s water temperature requirements.
For bulk purchasers and project contractors, we offer comprehensive customization services, including anti-magnetic function configuration, cold/hot water model selection, dial branding and marking customization, as well as full OEM/ODM services to meet your unique project and brand needs.
The meter has a maximum working pressure of ≤1.6 Mpa, which is fully compatible with most municipal and commercial water supply systems worldwide, ensuring stable operation even under normal pressure fluctuations.
