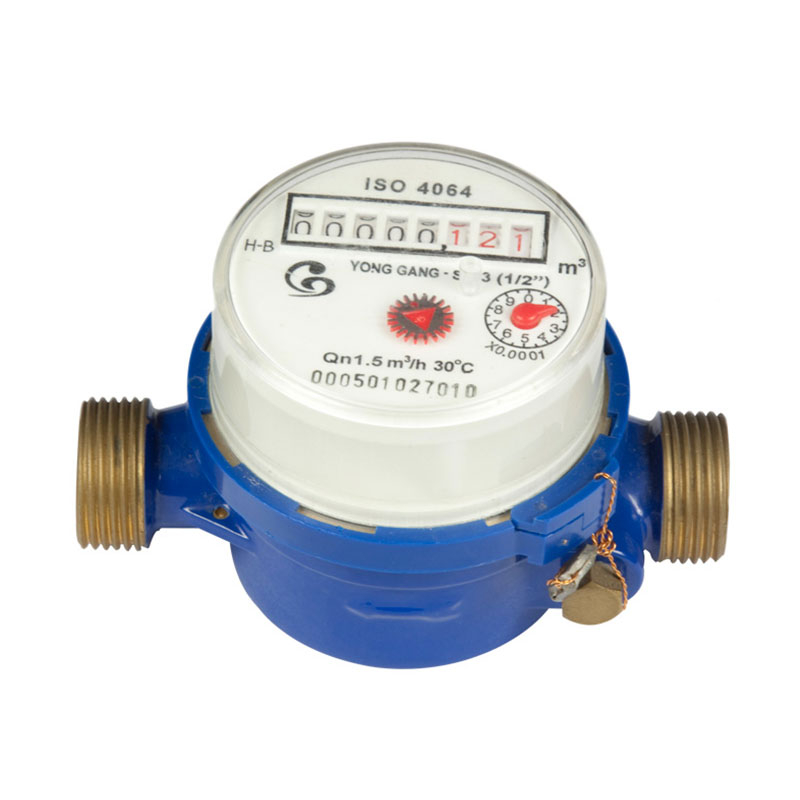

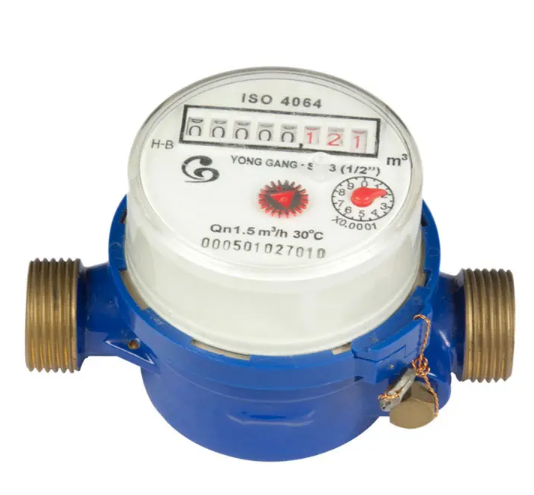

Single-jet Series Water Meter LXSG-13D4-25D4

Product Details

Main Features

●Single-jet, Dry-dial, Magnetic drive, non-magnetic.

●Available for cold water (30°C) and hot water (90°C), sizes Ø 15 to 25 mm (½” – 1”).

●Body material: Brass, surface of body is powder coating

●Measuring accuracy conform to ISO 4064 class B Standard

●Outer adjusting device



MAIN TECHNICAL DATA

Meter size Dia DN (mm)	Class	qs Overload Flow	qs Nominal Flow	qs Transitional Flow	Qmin Min Flow	Min Reading Lectura	Max Reading Lectura
		m3/h		1/h		m3
13	A	3	1.5	150	60	0.0001	99999
	B			120	30
20	A	5	2.5	250	100	0.0001	99999
	B			200	50



INDICATING ERROR

At low zone is ±5% from minimum flow rate  (qmin)  to transitional flow rate (qt) exclusive boundary

At high zone is ±2% from transitional flow rate (qt) to overload flow rate (qs)



DIMENSIONS AND WEIGHT

Meter size Dia DN (mm)	Length(L)	Width(B)	Height(H)	Connecting Thread D	Weight Kg
	mm
13	80	70	70	G 3/4B	0.42
13	110	70	70	G 3/4B	0.55
20	130	70	70	G1'' B	0.7



WORKING CONDITION

Water temperature：≤50℃ for cold water meter

Water temperature：≤90℃ for hot water meter

Working pressure：≤1.6Mpa
