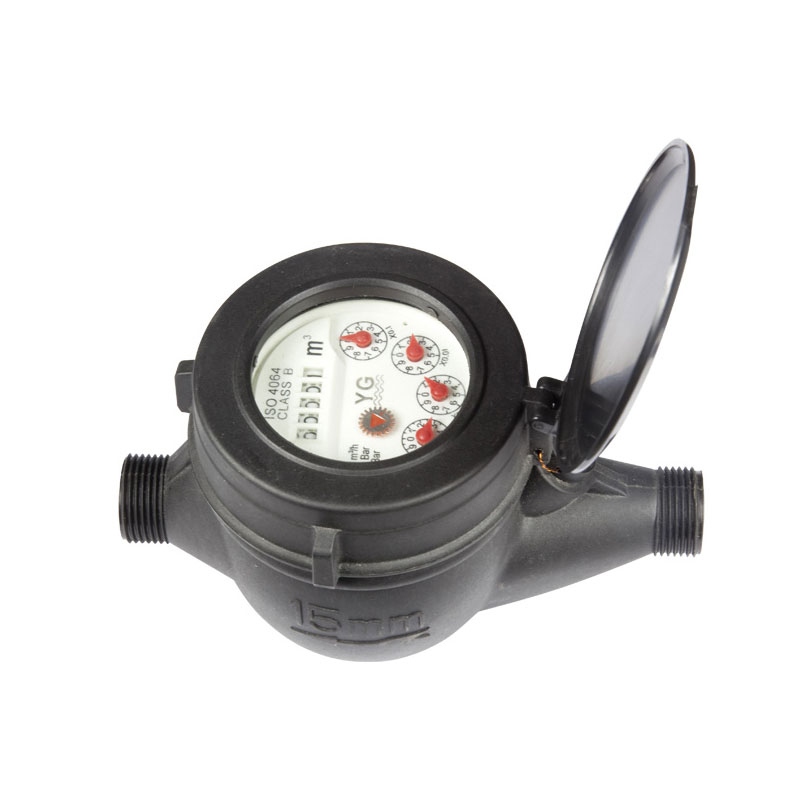

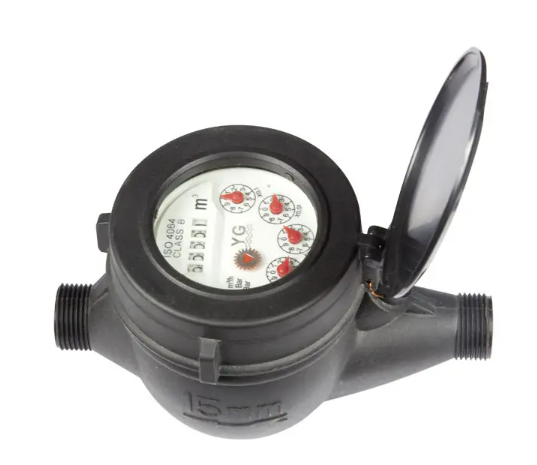

Our LXSG-15S-50S dry anti-magnetic multi-jet water meter is a high-precision flow measurement solution built for reliable water consumption monitoring in residential and industrial scenarios. Manufactured by Ningbo Zhiyitong Energy Technology Co., Ltd., a leading high-tech enterprise specializing in R&D, production and sales of flow measurement equipment, this multi-jet water meter series strictly conforms to ISO9001 and ISO4064 international standards, ensuring consistent performance and global market compliance.
Crafted from high-strength engineering nylon, the meter features an innovative dry dial structure and industry-leading anti-magnetic design, effectively preventing metering tampering and maintaining long-term clear reading without fogging. Available in nominal diameters from DN15 to DN50 (½” – 2”), this residential multi-jet water meter supports bulk wholesale, full customization and OEM/ODM services, making it the ideal choice for commercial clients, bulk purchasers, project contractors and industry distributors worldwide.
The full-range anti-magnetic structure of this industrial multi-jet water meter blocks magnetic interference and tampering, eliminating metering deviations from external magnetic fields. The fully sealed dry dial isolates the counting mechanism from water flow, ensuring permanent clear reading without fogging, scaling or wear, greatly cutting after-sales maintenance costs for project operators and distributors.
This ISO4064 compliant water meter delivers stable accurate metering, with an error of ±5% in the low flow zone (from qmin to qt, exclusive boundary) and ±2% in the high flow zone (from qt to qs). It fully meets ISO9001 and ISO4064 standards, adapting to global municipal, residential and industrial project requirements, and supporting smooth market access in Europe, Africa, the Middle East, Southeast Asia and other regions.
Made of premium engineering nylon, the nylon multi-jet water meter has excellent corrosion resistance, anti-rust performance and pressure resistance, adapting to complex water quality and working environments. With a service life far exceeding traditional metal meter bodies, it effectively reduces replacement frequency and overall operating costs for long-term cooperative commercial clients.
With a 42,600 square meter manufacturing center and annual output of over 1.5 million meters, we support bulk wholesale, size customization, function adjustment and full OEM/ODM services. Our stable production capacity ensures on-time delivery for large-scale municipal projects, real estate developments and bulk distribution orders, fully meeting diverse client needs.
MAIN TECHNICAL DATA
Meter size | Class | qs | qs | qs | Qmin | Min | Max |
m3/h | 1/h | m3 | |||||
15 | A | 3 | 1.5 | 150 | 60 | 0.0001 | 99999 |
B | 120 | 30 | |||||
20 | A | 5 | 2.5 | 250 | 100 | 0.0001 | 99999 |
B | 200 | 50 | |||||
25 | A | 7 | 3.5 | 350 | 140 | 0.0001 | 99999 |
B | 280 | 70 | |||||
32 | A | 12 | 6.0 | 600 | 240 | 0.0001 | 99999 |
B | 480 | 120 | |||||
40 | A | 20 | 10 | 1000 | 400 | 0.001 | 99999 |
B | 800 | 200 | |||||
50 | A | 30 | 15 | 4500 | 1200 | 0.001 | 99999 |
B | 3000 | 450 | |||||
INDICATING ERROR
At low zone is ±5% from minimum flow rate (qmin) to transitional flow rate (qt) exclusive boundary
At high zone is ±2% from transitional flow rate (qt) to overload flow rate (qs)
DIMENSIONS AND WEIGHT
Meter size | Length | Width | Height | Connecting Thread | Weight |
mm | |||||
15 | 165/190 | 99 | 104 | G 3/4B | 1.5/1.6 |
20 | 190/195 | 99 | 106 | G 1B | 1.7/1.8 |
25 | 260/225 | 104 | 120 | G1 1/4B | 2.6/2.4 |
32 | 260/230 | 104 | 120 | G1 1/2B | 2.8/2.7 |
40 | 300/245 | 125 | 155 | G 2'B | 5.4/4.5 |
50 | 300 | 125 | 155 | G2 1/2 B | 7.2 |
280 | 165 | 175 | FLANGE CONNECTING CONFORM TO | 14 | |
WORKING CONDITION
Water temperature：≤50℃ for cold water meter
Working pressure：≤1.0Mpa
Residential water supply projects for commercial housing, apartment complexes and residential communities, ideal for real estate developers and property management companies.
Industrial and commercial water measurement for factories, office buildings, shopping malls and hotels, providing accurate data for cost control and energy management.
Municipal water utility projects including water supply network construction, old community renovation and rural drinking water safety projects, supporting bulk supply for water utilities and engineering contractors.
Global distribution and brand customization for industry distributors, importers and brand operators, with full OEM/ODM support for localized market demands.
This dry type multi-jet water meter is designed for cold water measurement, with long-term working temperature ≤30℃ and maximum allowable temperature ≤50℃.
Yes, we provide full customization for size, function, appearance and logo printing, as well as professional OEM/ODM solutions for bulk cooperative clients.
The error is ±5% in the low flow zone (qmin to qt, exclusive boundary) and ±2% in the high flow zone (qt to qs).
This anti-magnetic multi-jet water meter strictly complies with ISO9001 quality management system standards and ISO4064 international water meter standards, suitable for global market access.
