Wholesale Remote Reading Water Meters LXSGY-15E2-50E2

Remote Reading Water Meters LXSGY-15E2-50E2

0
Views: 129

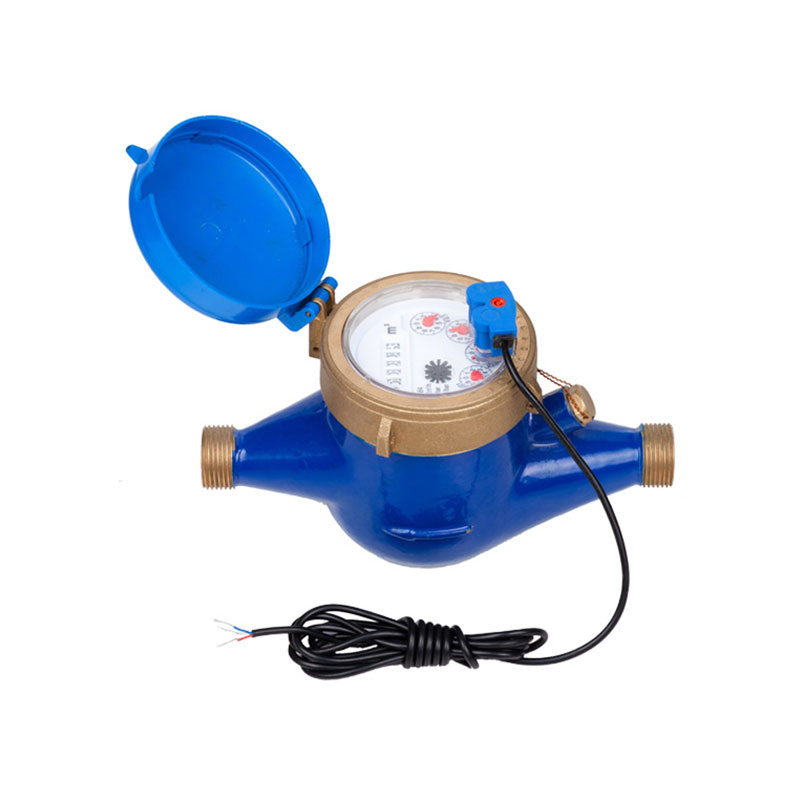

Remote Reading Water Meters LXSGY-15E2-50E2
Location: China Minimum order quantity: -
Business Type: - Price: -
Brands: - Packing details: -
Certificate: - Delivery time: -
Model: - Payment method: -

Product Details

Feature:

●Multi Jet Dry type

●Material body: Brass or cast iron for option

●Szes Ø15 to 50mm, (½” – 2”), Available for cold water (30°C), hot(90°C)

●ISO 4064, Class B Standard

●Universal use. Easy for interchange & maintenance



Specification:

Pulse content: 1 liter/pulse, 10 liters/pulse, 100 liters/pulse for option.

Type: Multi jet dry type romote reading, reed switch



MAIN TECHNICAL DATA

Meter size
Dia
DN
(mm)
Class qs
Overload
Flow
qs
Nominal
Flow
qs
Transitional
Flow
Qmin
Min
Flow
Min
Reading
Lectura
Max
Reading
Lectura
m3/h 1/h m3
8 A 1.2 0.6 9 6L 0.01(L) 9999999(L)
B 7 4.5
15 A 3 1.5 150 60 0.0001 99999
B 120 30
20 A 5 2.5 250 100 0.0001 99999
B 200 50
25 A 7 3.5 350 140 0.0001 99999
B 280 70
32 A 12 6.0 600 240 0.0001 99999
B 480 120
40 A 20 10 1000 400 0.001 99999
B 800 200
50 A 30 15 4500 1200 0.001 99999
B 3000 450



INDICATING ERROR

At low zone is ±5% from minimum flow rate  (qmin)  to transitional flow rate (qt) exclusive boundary

At high zone is ±2% from transitional flow rate (qt) to overload flow rate (qs)



SELECTED METER TYPE

1. Connecting wire 1.5m

2. Sensor connecting means:

Three cores wire for output,red for voltage positive polar, white for output,black for common ground



WORKING CONDITION

Water temperature:≤50℃ for cold water meter

Water temperature:≤90℃ for hot water meter

Working pressure:≤1.6Mpa

About Zhiyitong Energy

Ningbo Zhiyitong Energy Technology Co., Ltd. is a set of production, research and development, sales and technical services as one of the high-tech enterprises. The company is located in the west industrial park, xinpu town, cixi city, south bank of the world-famous hangzhou bay bridge, with a large manufacturing center of 42,600 square meters.The company has a registered capital of 50 million yuan, with an annual output of more than 1.5 million meters of various types, and its products are sold to more than 20 countries and regions such as Europe, Africa, the Middle East and southeast Asia.

As well known Remote Reading Water Meters LXSGY-15E2-50E2 suppliers in China, Our products mainly involve residential water and industrial water flow measurement, heating system heat measurement and other applications. We also wholesle Remote Reading Water Meters LXSGY-15E2-50E2 in bulk. Besides the customized parts,we also produce all kinds of conventional water and heat meters in line with international standards. OEM/ODM available.

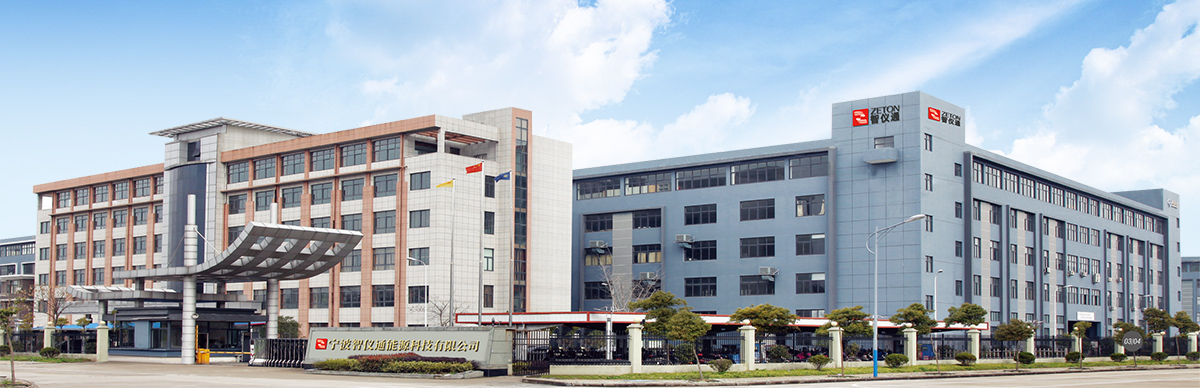

factory of Ningbo Zhiyitong Energy Technology Co., Ltd
