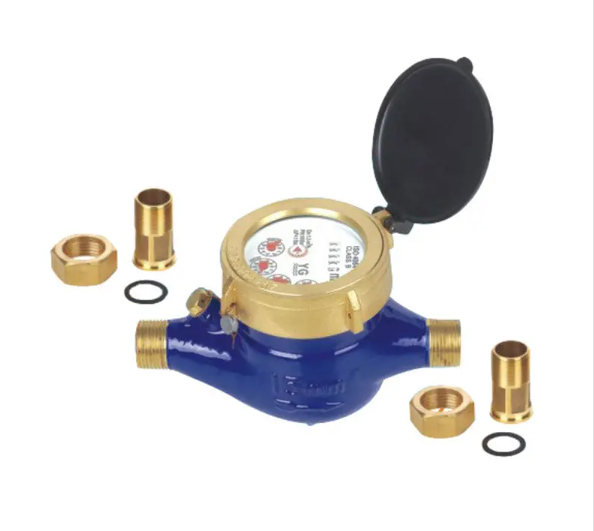

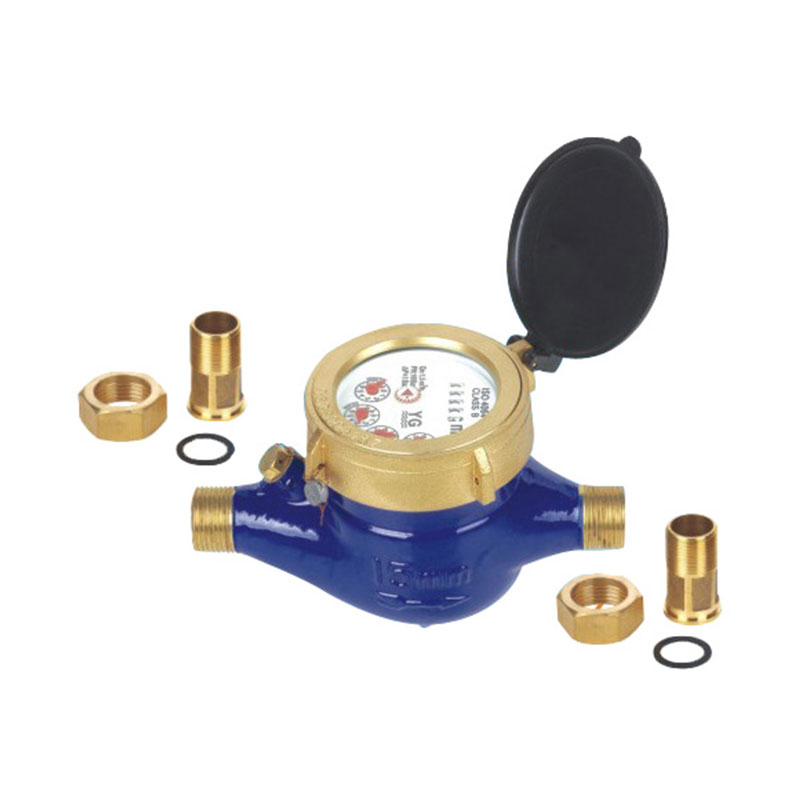

The Multi-jet Series Water Meter LXSG-15E2-50E2 is a versatile, high-adaptability flow measurement solution developed and produced by Ningbo Zhiyitong Energy Technology Co., Ltd., a professional high-tech manufacturer with 42,600 square meters of production capacity and over 1.5 million units annual output. This multi-jet meter series, covering DN15 to DN50 (½” – 2”) diameters, supports both cold and hot water measurement, with optional dry-dial, wet-dial, and liquid-sealed configurations. Fully compliant with ISO 4064 standards, it is built to serve the diverse needs of industrial buyers, system integrators, and bulk procurement partners, with full OEM/ODM customization support for global projects.
Unlike single-function cold water meters, this multi-jet hot and cold water meter supports dual-scenario usage, with a temperature resistance of up to 50℃ for cold water and 90℃ for hot water. This all-in-one design eliminates the need for separate product procurement for cold and hot water systems, greatly simplifying inventory management and project sourcing for bulk purchasers.
This customizable residential and industrial water meter offers flexible structural options, including multiple dial types, connection methods, and accuracy classes (Class A and Class B) to match regional standards and project-specific requirements. We provide full OEM/ODM services, from customized parts to branded packaging, to help our business partners build their product lines and meet local market demands.
Made with a high-density brass body, the ISO 4064 compliant flow meter delivers superior resistance to corrosion, pressure fluctuations, and mechanical wear, maintaining stable performance even in harsh industrial and heating system environments. It can withstand a maximum working pressure of 1.0Mpa, with a wide flow measurement range to cover low-flow residential usage and high-flow industrial applications.
With standardized dimensions that align with international pipeline specifications, the DN15-DN50 multi-jet water meter offers excellent interchangeability for global projects. It supports both threaded and flange connections for DN50 models, conforming to GB4216.4 standards, making it suitable for installation in Europe, Africa, the Middle East, Southeast Asia, and more than 20 countries and regions worldwide.
MAIN TECHNICAL DATA
Meter size | Class | qs | qs | qs | Qmin | Min | Max |
m3/h | 1/h | m3 | |||||
15 | A | 3 | 1.5 | 150 | 60 | 0.0001 | 99999 |
B | 120 | 30 | |||||
20 | A | 5 | 2.5 | 250 | 100 | 0.0001 | 99999 |
B | 200 | 50 | |||||
25 | A | 7 | 3.5 | 350 | 140 | 0.0001 | 99999 |
B | 280 | 70 | |||||
32 | A | 12 | 6.0 | 600 | 240 | 0.0001 | 99999 |
B | 480 | 120 | |||||
40 | A | 20 | 10 | 1000 | 400 | 0.001 | 99999 |
B | 800 | 200 | |||||
50 | A | 30 | 15 | 4500 | 1200 | 0.001 | 99999 |
B | 3000 | 450 | |||||
INDICATING ERROR
At low zone is ±5% from minimum flow rate (qmin) to transitional flow rate (qt) exclusive boundary
At high zone is ±2% from transitional flow rate (qt) to overload flow rate (qs)
DIMENSIONS AND WEIGHT
Meter size | Length | Width | Height | Connecting Thread | Weight |
mm | |||||
15 | 165/190 | 99 | 104 | G 3/4B | 1.5/1.6 |
20 | 190/195 | 99 | 106 | G 1B | 1.7/1.8 |
25 | 260/225 | 104 | 120 | G1 1/4B | 2.6/2.4 |
32 | 260/230 | 104 | 120 | G1 1/2B | 2.8/2.7 |
40 | 300/245 | 125 | 155 | G 2'B | 5.4/4.5 |
50 | 300 | 125 | 155 | G2 1/2 B | 7.2 |
280 | 165 | 175 | FLANGE CONNECTING CONFORM TO | 14 | |
WORKING CONDITION
Water temperature：≤50℃ for cold water meter
Water temperature：≤90℃ for hot water meter
Working pressure：≤1.0Mpa
The OEM/ODM supported multi-jet water meter is perfectly suited for business partners across various industrial and commercial sectors, including:
Industrial facility operation and factory water management systems
District heating system integrators and heating supply operators
Cross-border engineering contractors and international project developers
Bulk procurement specialists and regional exclusive distributors
Custom flow measurement solution providers and equipment integrators
Yes, this multi-jet meter series is designed for dual-purpose use, supporting cold water measurement up to 50℃ and hot water measurement up to 90℃, making it suitable for both water supply and heating system applications.
We offer full OEM/ODM customization services, including customized structural parts, dial design, packaging, and branding, to meet the specific needs of our business partners and local market requirements.
This series is available in both ISO 4064 Class A and Class B accuracy options, allowing our partners to select the appropriate grade based on their project’s billing and measurement requirements.
The DN50 model supports both threaded connection (G2 1/2"B) and flange connection, which conforms to GB4216.4 standards, to adapt to different industrial pipeline installation requirements.
