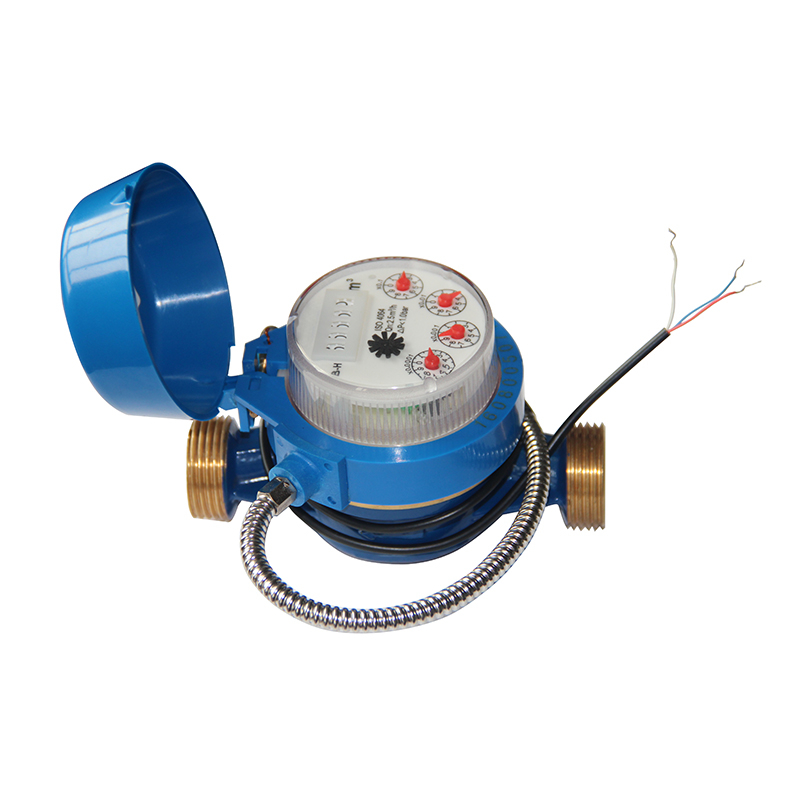

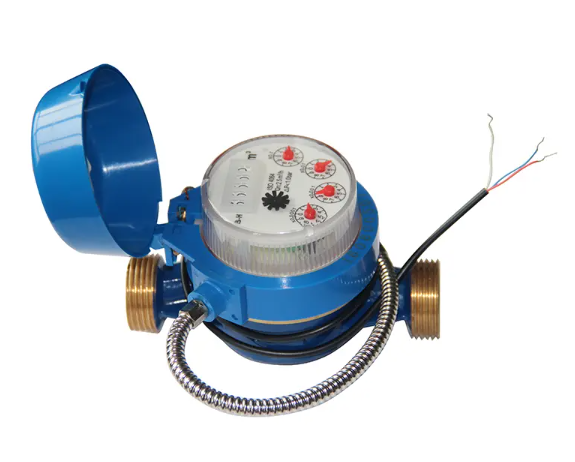

Remote Reading Water Meters LXSG-13D2-25D2

Product Details

Main Features

●Transmisson sensor: Reed switch

●Single-jet, Dry-dial, Magnetic drive, Anti-magnetic

●Available for cold water (30°C) and hot water (90°C), sizes Ø 15  to 25 mm (½” – 1”).

●Body material: Brass

●Conform to ISO 4064, Class B

●Applicable to data collector, Reed switch



Specification:

DN15mm 1 liter/pulse or 10 liters/pulse  for option

DN20mm 1 liter/pulse or 10 liters/pulse  for option

DN25mm 1 liter/pulse or 10 liters/pulse  for option



MAIN TECHNICAL DATA

Meter size Dia DN (mm)	Class	qs Overload Flow	qs Nominal Flow	qs Transitional Flow	Qmin Min Flow	Min Reading Lectura	Max Reading Lectura
		m3/h		1/h		m3
13	A	3	1.5	150	60	0.0001	99999
	B			120	30
20	A	5	2.5	250	100	0.0001	99999
	B			200	50
25	A	7	3.5	350	140	0.0001	99999
	B			280	70



INDICATING ERROR

At low zone is ±5% from minimum flow rate  (qmin)  to transitional flow rate (qt) exclusive boundary

At high zone is ±2% from transitional flow rate (qt) to overload flow rate (qs)



DIMENSIONS AND WEIGHT

Meter size Dia DN (mm)	Length(L)	Width(B)	Height(H)	Connecting Thread D	Weight Kg
	mm
13	110	80	80	G 3/4B	0.7
20	130	80	80	G 1''B	0.95
25	160	80	93	G 11/4''B	1.4



SELECTED METER TYPE

1. Reed switch

2. Connecting wire 1.5m

3. Sensor connecting means:

Two cores wire for reed switch



WORKING CONDITION

Water temperature：≤50℃ for cold water meter

Water temperature：≤90℃ for hot water meter

Working pressure：≤1.6Mpa
