The LXH-15A-20A series brass volumetric piston water meters are heavy-duty, high-precision flow measurement solutions built for long-term reliable performance in residential water metering applications. Featuring a solid forged brass main body and advanced volumetric rotary piston technology, these ISO4064 Class C water meters deliver exceptional accuracy and durability, even in harsh operating environments. Designed for commercial purchasers, engineering contractors, and high-end real estate developers, our brass residential water meters meet the strictest international standards, providing a dependable metering solution for bulk project deployment and long-term water management. With DN15 and DN20 size options, these meters are fully compatible with global residential pipeline systems, and we offer end-to-end support for bulk orders, including customized production and technical guidance.
The core structure of these brass piston water meters is made of high-purity forged brass, which offers superior mechanical strength, high pressure resistance, and excellent anti-corrosion performance. Unlike plastic or low-grade metal alternatives, the brass body can withstand long-term high-pressure water supply environments, resist impact damage during installation and use, and eliminate the risk of leaks and ruptures. This robust construction ensures a service life far exceeding industry averages, drastically reducing lifecycle costs for property management firms and water utility operators.
Engineered to ISO4064 Class C accuracy specifications, our volumetric rotary piston water meters maintain consistent measurement precision throughout their entire service life, with no performance drift over time. The meter achieves a ±2% error margin in the high flow zone (from transitional flow to overload flow) and a ±5% error margin in the low flow zone (from minimum flow to transitional flow). This exceptional sensitivity captures even minimal water flow, effectively eliminating unmeasured water loss and ensuring accurate billing for water service providers and property managers.
The LXH-15A-20A brass volumetric water meters are available in DN15 and DN20 specifications, with industry-standard G-thread connections and dual optional installation lengths, ensuring seamless compatibility with most existing residential and light commercial pipeline systems worldwide. The modular internal design allows for quick inspection and maintenance without removing the entire meter from the pipeline, significantly reducing maintenance time and labor costs for bulk installation projects. The meters support a maximum working pressure of 1Mpa, with cold water models rated for temperatures up to 50℃, and optional hot water models for temperatures up to 90℃.

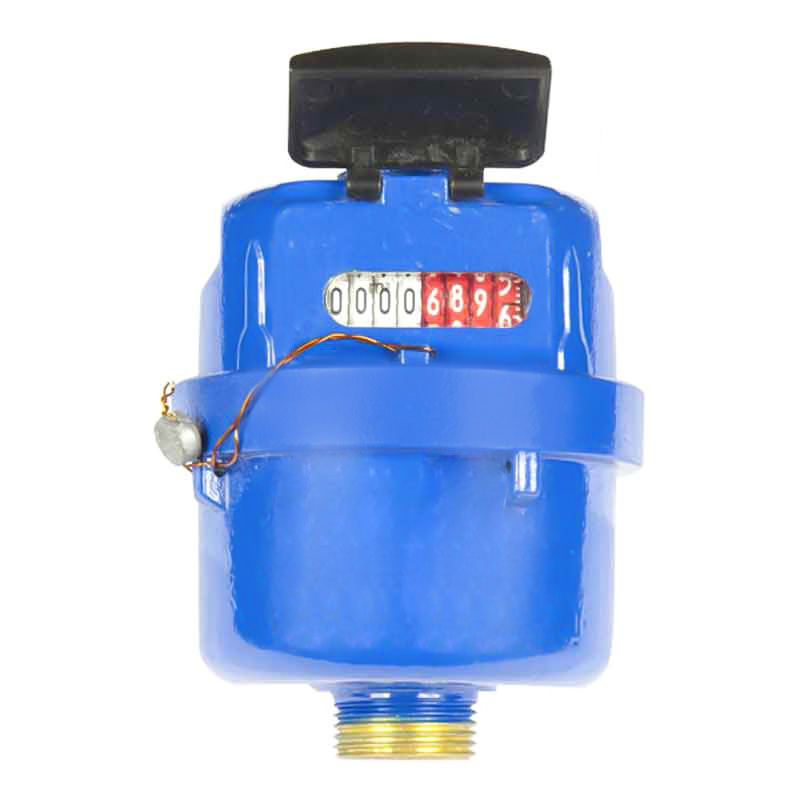

Volumetric rotary piston Water Meter
Model: LXH-15A-20A
Main Features
Volumetric water meter, Brass body
Sizes Ø 15 to 20 mm (½” – 3/4”), Available for cold water (30°C)
Selected high quality materials for steady & reliable characteristic and good looking
Especially suitable for the area ot bad water quality Note:technical data conform to ISO4064 Class C standard
MAIN TECHNICAL DATA
Meter size | Class | qs | qs | qs | Qmin | Min | Max |
m3/h | 1/h | m3 | |||||
15 | C | 3 | 1.5 | 22.5 | 15 | 0.0001 | 99999 |
20 | C | 5 | 2.5 | 37.5 | 25 | 0.0001 | 99999 |
INDICATING ERROR
At low zone is ±5% from minimum flow rate (qmin) to transitional flow rate (qt) exclusive boundary
At high zone is ±2% from transitional flow rate (qt) to overload flow rate (qs)
DIMENSIONS AND WEIGHT
Meter size | Length | Width | Height | Connecting Thread | Weight |
mm | D | D | |||
15 | 115/165 | 86 | 115 | G 3/4B | 1.1/1.3 |
20 | 130/190 | 94/103 | 115 | G 1B | 1.7/2.0 |
WORKING CONDITION
Water temperature：≤50℃ for cold water meter
Water temperature：≤90℃ for hot water meter
Working pressure：≤1Mpa
Our LXH-15A-20A brass piston water meters are optimized for high-demand commercial bulk use across a wide range of scenarios, including:
High-end residential real estate developments, including luxury apartments and villa communities
Urban commercial-residential complex projects and urban renewal meter upgrading programs
Coastal area water supply systems, where corrosion resistance is critical for long-term use
Water utility companies for premium metering solutions in urban core areas
Property management firms for high-end residential and mixed-use commercial properties
Domestic hot water metering systems in hotels, serviced apartments, and residential complexes
This series of volumetric piston water meters features a high-purity forged brass main body, which delivers exceptional mechanical strength, corrosion resistance, and long-term durability, making it ideal for demanding residential and light commercial water metering applications.
The LXH-15A-20A brass water meters are certified to ISO4064 Class C accuracy standards, with strict error control across all flow ranges to ensure reliable, accurate water consumption measurement for billing and management purposes.
Yes. The solid brass body provides excellent resistance to environmental corrosion, temperature fluctuations, and UV exposure, making it suitable for both indoor and outdoor installation, including outdoor meter boxes and exposed pipeline systems.
We provide full-cycle support for bulk project orders from business clients, including pre-sales technical consultation, customized OEM/ODM production, bulk logistics arrangement, and after-sales technical guidance, to ensure seamless integration with your project timeline and requirements.
