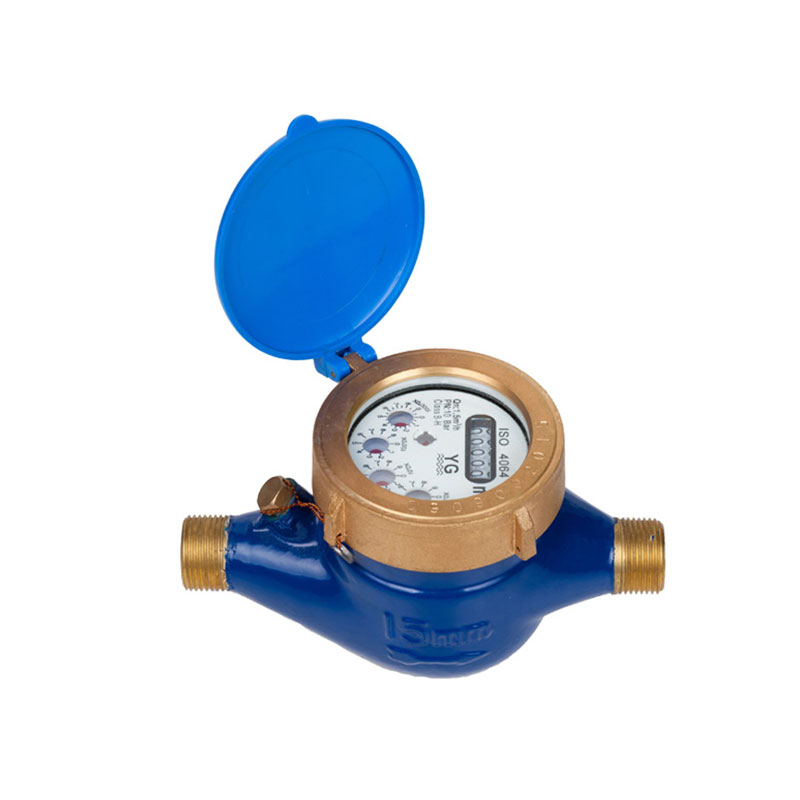

Multi-jet Series Water Meter LXSY-15E2-50E2
Location: |
China |
Minimum order quantity: |
- |
Business Type: |
- |
Price: |
- |
Brands: |
- |
Packing details: |
- |
Certificate: |
- |
Delivery time: |
- |
Model: |
- |
Payment method: |
- |
Product Details
Main Features
●Dial full liquid sealed or half liquid sealed for option.
●Szes Ø15 to 50mm, (½” – 2”), Available for cold water (30°C), hot(90°C)
●Brass body or iron body for option, ISO4064, Class B
●Universal use. Easy for interchange & maintenance
MAIN TECHNICAL DATA
Meter size
Dia
DN
(mm) |
Class |
qs
Overload
Flow |
qs
Nominal
Flow |
qs
Transitional
Flow |
Qmin
Min
Flow |
Min
Reading
Lectura |
Max
Reading
Lectura |
m3/h |
1/h |
m3 |
15 |
A |
3 |
1.5 |
150 |
60 |
0.0001 |
99999 |
B |
120 |
30 |
20 |
A |
5 |
2.5 |
250 |
100 |
0.0001 |
99999 |
B |
200 |
50 |
25 |
A |
7 |
3.5 |
350 |
140 |
0.0001 |
99999 |
B |
280 |
70 |
32 |
A |
12 |
6.0 |
600 |
240 |
0.0001 |
99999 |
B |
480 |
120 |
40 |
A |
20 |
10 |
1000 |
400 |
0.001 |
99999 |
B |
800 |
200 |
50 |
A |
30 |
15 |
4500 |
1200 |
0.001 |
99999 |
B |
3000 |
450 |
INDICATING ERROR
At low zone is ±5% from minimum flow rate (qmin) to transitional flow rate (qt) exclusive boundary
At high zone is ±2% from transitional flow rate (qt) to overload flow rate (qs)
DIMENSIONS AND WEIGHT
Meter size
Dia
DN
(mm) |
Length |
Width |
Height |
Connecting Thread
D |
Weight
Kg |
mm |
15 |
165/190 |
99 |
104 |
G 3/4B |
1.5/1.6 |
20 |
190/195 |
99 |
106 |
G 1B |
1.7/1.8 |
25 |
260/225 |
104 |
120 |
G1 1/4B |
2.6/2.4 |
32 |
260/230 |
104 |
120 |
G1 1/2B |
2.8/2.7 |
40 |
300/245 |
125 |
155 |
G 2'B |
5.4/4.5 |
50 |
300 |
125 |
155 |
G2 1/2 B |
7.2 |
280 |
165 |
175 |
FLANGE CONNECTING CONFORM TO
GB4216.4 D=165 D1=125 |
14 |
WORKING CONDITION
Water temperature:≤50℃ for cold water meter
Working pressure:≤1.6Mpa
