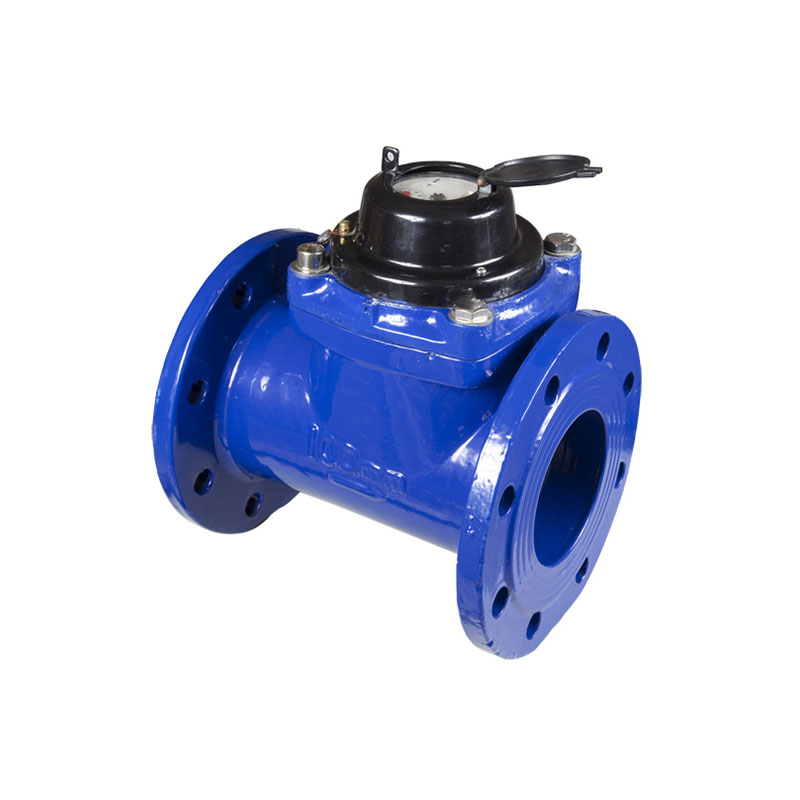

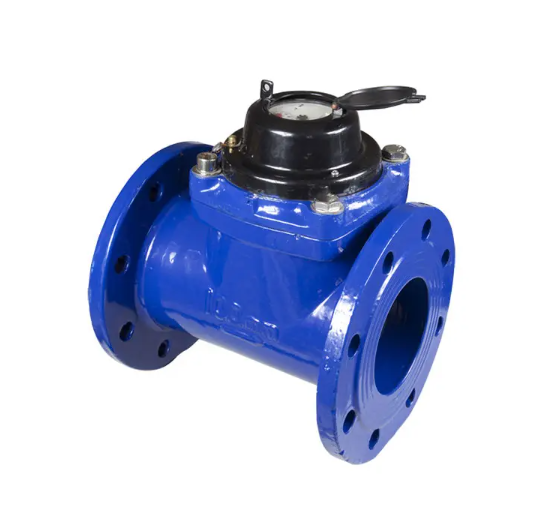

The LXLC-50-200 Dry-dial Magnetic-drive Woltman Water Meter is a professional-grade industrial water meter engineered for high-volume water flow measurement in demanding commercial and industrial environments. Designed to comply with ISO 4064 Class B standards, this horizontal Woltman meter delivers reliable, long-term performance for total cold and hot water consumption monitoring, with a size range covering DN50 to DN200 (2” – 8”) to fit diverse pipeline requirements. Built with a robust iron cover and fully sealed mechanism, this bulk water meter is optimized for continuous operation in industrial and mining enterprises, ensuring accurate billing and water resource management for business clients.
This flange water meter adheres strictly to ISO 4064 Class B accuracy requirements, with a ±2% error margin in the high flow zone and ±5% in the low flow zone, delivering consistent readings for precise cost allocation and compliance monitoring for industrial operators.
The vacuum-sealed dry-dial register eliminates moisture intrusion and fogging, ensuring the numbered roll direct reading system remains clear and legible over decades of service, eliminating the need for frequent dial cleaning or replacement for enterprise customers.
With an optimized flow channel design, this industrial water flow meter features ultra-low head loss, reducing pumping energy consumption and operational costs for high-volume water distribution systems, a critical benefit for large-scale industrial facilities.
Size | Class | Norminal | Transitional | Min | Min | Max |
m3/h | m3 | |||||
mm | ||||||
50 | A | 15 | 4.5 | 1.2 | 0.01 | 999999.99 |
B | 3 | 0.45 | ||||
80 | A | 40 | 12 | 3.2 | 0.01 | |
B | 8 | 1.2 | ||||
100 | A | 60 | 18 | 4.8 | 0.01 | |
B | 12 | 1.8 | ||||
150 | A | 150 | 45 | 12 | 0.01 | 999999.9 |
B | 30 | 4.5 | ||||
200 | A | 250 | 75 | 20 | 0.01 | |
B | 50 | 7.5 | ||||
Specification | L | D | D1 | H | Flange bolt | Weight |
m3/h | d x n | Kg | ||||
50 | 190 | Φ 195 | Φ 160 | Φ 239 | M16 x 8 | 13 |
80 | 225 | Φ 195 | Φ 160 | Φ 239 | M16 x 8 | 17 |
100 | 250 | Φ 215 | Φ 180 | Φ 259 | M16 x 8 | 20 |
150 | 300 | Φ 280 | Φ 240 | Φ 300 | M25 x 8 | 33 |
200 | 350 | Φ 335 | Φ 295 | Φ 361 | M20 x 8 | 47 |
At low zone is ±5% from minimum flow rate (qmin) to transitional flow rate (qt) exclusive boundary
At high zone is ±2% from transitional flow rate (qt) to overload flow rate (qs) exclusive boundary
Dry-dial structure with magnetic drive transmission, isolating the measuring mechanism from the register for stable performance
Corrosion-resistant high-quality materials, ensuring durability in harsh industrial water environments
Pre-equipped for impulse emitter device installation, compatible with smart water monitoring systems even after meter installation
Universal register design compatible with all sizes in the range, simplifying inventory management for commercial water service providers
Removable measuring insert without removing the meter from the pipeline, enabling streamlined maintenance and part replacement
This dry-dial magnetic drive water meter is ideal for:
Industrial and mining enterprise water consumption monitoring
Bulk water supply and distribution systems
Manufacturing plant water usage management
Agricultural irrigation bulk flow measurement
Water treatment plant inlet and outlet flow monitoring
As a leading China-based manufacturer of industrial Woltman water meters, we operate a 42,600 square meter state-of-the-art production facility with an annual output of over 1.5 million meters, serving enterprise customers across more than 20 countries and regions in Europe, Africa, the Middle East, and Southeast Asia. We hold full production, R&D, and technical service capabilities, offering bulk wholesale orders, custom component design, and full OEM/ODM support to meet your unique project requirements. Our in-house quality control team ensures every meter meets international standards before shipment, delivering reliable products for your business operations.
Our LXLC-50-200 bulk water meter conforms to ISO 4064 Class B standards, with certified accuracy across all specified flow ranges for industrial use.
Yes, we offer dedicated models for cold water (≤50℃) and hot water (≤90℃) to fit your specific operational needs.
Yes, the meter is pre-equipped for impulse emitter device installation, allowing seamless integration with remote monitoring and smart metering systems, even after the meter has been installed in the pipeline.
The meter is rated for a maximum working pressure of 1.6MPa, suitable for most industrial and commercial water distribution systems.
