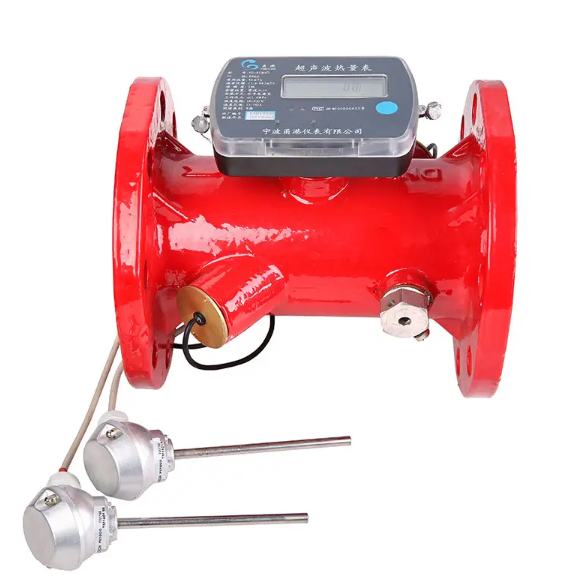

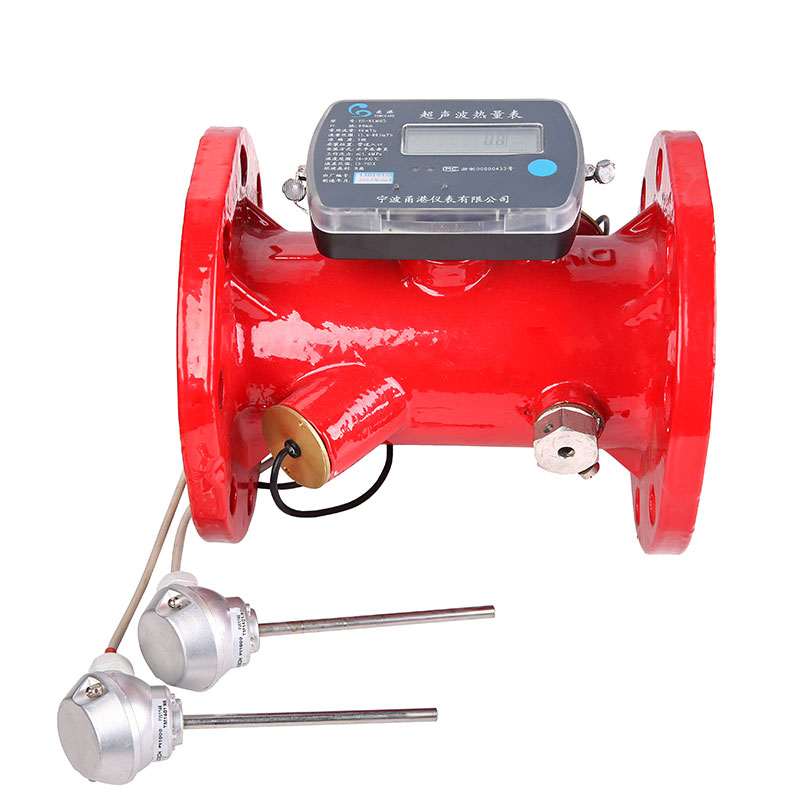

Wholesale Ultrasonic Heat Meters YG-RLM(C)-50-200

Ultrasonic Heat Meters YG-RLM(C)-50-200

0
Views: 99
Ultrasonic Heat Meters YG-RLM(C)-50-200
Location: China Minimum order quantity: -
Business Type: - Price: -
Brands: - Packing details: -
Certificate: - Delivery time: -
Model: - Payment method: -

Product Details

Main Features

●Water will release heat if temperature decreases.Released heat is ratable with temperature difference and flowing volume through meter.

●Flowing volume signal comes from flow sensor, temperature difference comes from temperature sensor pair,as result the calculator will calculate heat according to the flowing volume and temperature difference.

●Measurement unit: Kwh, Gcal for option

●For Ultrasonic heat meter, communication via M-BUS, RS-485



Models and Specifications

DN(mm)

Qn(m3/h)

Flow range
(m3/h)

Working

pressure

Temp range
(℃)

Temp difference
(℃)

50

15

0.6-30

1.6

4-95

3-70

65

25

1-50

80

40

1.6-80

100

60

2.4-120

125

100

4-200

150

150

6-300

200 250 10-500



Features:

1.Minimum temperature difference is 3℃
2.Can be mounted in both horizontal and vertical running pipes
3.Intelligent design and can record energy and flowing volume.
4.Small size, Light weight and beautiful appearance.
5.Measuring device have no motion parts and no abrasion.It won’t be affected by working time.
6.High accuracy and meet EN 1434 metrological class B and CJ128 metrological .
7.class 2 10 years long-life battery
8.M-BUS, RS-485 remote system.
9.Not affected by external magnet field and steady
10.function.Electronic parts can be took down from flow sensor and
11.easy reading.
12.Total flow range(q s/q i =50:1)
13.Low start flow volume
14.Can calculate both heat and cold energy.Installation in the return flow line(optionally in
15.forward flow line)
16.Temperature sensor pair Pt1000.
17. Environment temperature grade:B

Main Technical Parameters:

DN(mm)

Length

(W)

(H) Flange connection
Bolt Diameter

50

200

170

185

4-M16

125

65

200

185

200

4-M16

145
80 225 250 220 8-M16 16
100 250 270 250 8-M16 180
125 250 300 270 8-M16 210
150 300 330 320 4-M20 240
200 350 380 360 4-M20 295



Temperature sensor pair

Temperature sensor pair PT1000 meets Norm. DIN EN60751

Sensor is soldered on PCB. The length of sensor lead is 3m. (Optional 10m)

Diameter of sensor is Ф5.2mm(optional Ф8.0mm )



Measuring Features:

Water will release heat if temperature decreases. Released heat is ratable with temperature difference and flow volume through meter. Flow volume signal comes from flow sensor, temerature difference comes from temperature sensor pair, as result the calculator will calculate heat according to the flowing volume and temperature difference.



Water pressure: ≤1.6Mpa
Measuring accuracy: Class 2
The max tolerance is shown in the curve below:
E=±(3+4Δθmin/Δθ+0.02qp/q)%
Therein,Δθmin means the minimum temperature difference, and Δθthe actual temperature difference.



I    instruction for Mounting

Before installation, please clean the pipe so sundries like stone have not be in the pipeline

During installation, please don’t rotate the electronic componets.And during moving, please don’t catch the indicator.

During installation,don’t catch, rotate and touch the spare parts in the pipeline. Avoid touching the meter body and damage the wire.

During installation and using, don’t pull the wire and prevent it damage.

During installation, please leave enough space for checking and repairing.



II    Heat meter installation instructions

Please leave the installation place according to the actual size of heat meter.

Please put the bilateral flange on the pipeline.(don’t weld)

Install the heat meter and sealing gaskets on the pipeline simply.

Use electrode holder to locate the flange.

Take down heat meter

Weld the flange of pipe and avoid it leak water.

Install heat meter

Strongly recommend to install the expansion pipe on the place which the distance satisfy 2 times pipe diameter behind the installation postion of heat meter. Convenience installation.

Recommend install valve in front of meter,valve behind meter and instrainer.Easy check and repair.



Mounting for heat meters:



About Zhiyitong Energy

Ningbo Zhiyitong Energy Technology Co., Ltd. is a set of production, research and development, sales and technical services as one of the high-tech enterprises. The company is located in the west industrial park, xinpu town, cixi city, south bank of the world-famous hangzhou bay bridge, with a large manufacturing center of 42,600 square meters.The company has a registered capital of 50 million yuan, with an annual output of more than 1.5 million meters of various types, and its products are sold to more than 20 countries and regions such as Europe, Africa, the Middle East and southeast Asia.

As well known Ultrasonic Heat Meters YG-RLM(C)-50-200 suppliers in China, Our products mainly involve residential water and industrial water flow measurement, heating system heat measurement and other applications. We also wholesle Ultrasonic Heat Meters YG-RLM(C)-50-200 in bulk. Besides the customized parts,we also produce all kinds of conventional water and heat meters in line with international standards. OEM/ODM available.
