Wholesale Wireless Remote Valve Control Cold Water Meter LORA

Wireless Remote Valve Control Cold Water Meter LORA

0
Views: 173
Wireless Remote Valve Control Cold Water Meter LORA
Location: China Minimum order quantity: -
Business Type: - Price: -
Brands: - Packing details: -
Certificate: - Delivery time: -
Model: - Payment method: -

Product Details

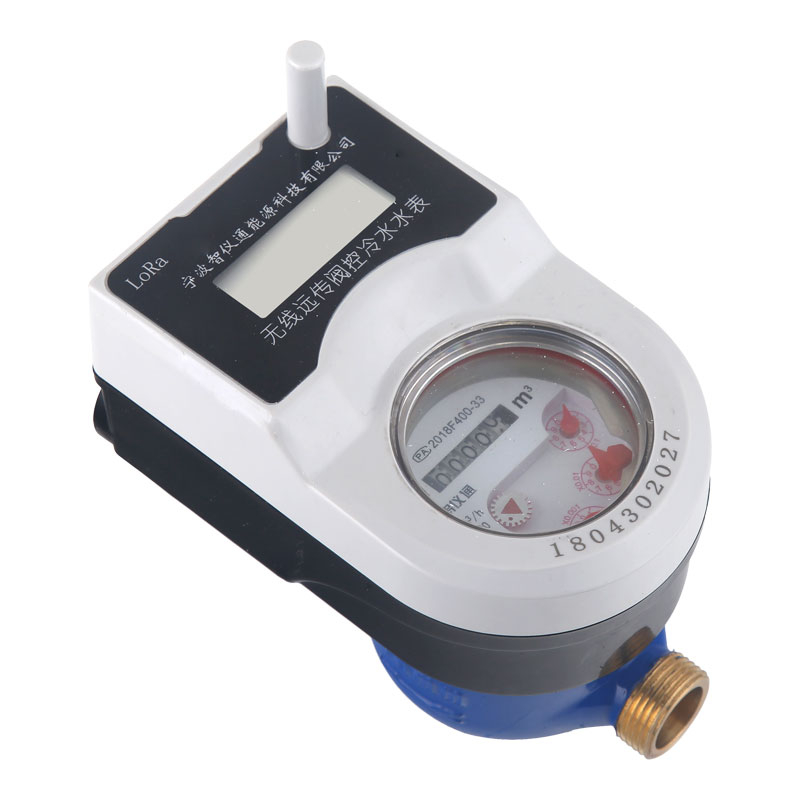

Wireless remote valve control cold water meter  LORA

LXSWF-15A~25A



Wireless meter reading, remote management, ladder water price, prepayment, Internet of things LORA communication technology, wide coverage, stable and reliable data transmission.

It is applicable to the flow measurement of water pipes in various buildings and can realize intelligent water management such as prepayment, remote meter reading and remote management.

Seamless access to multi-meter integration (electricity, water, gas and heat) intelligent management system, to achieve intelligent energy management of the Internet of things



Description



Wireless remote transmission valve-controlled cold water meter is used for measuring the total volume of water flowing through the tap water pipeline. This new water meter adopts new technology, has novel design, reasonable design, excellent material selection, beautiful appearance, precise assembly and convenient maintenance.This series of wireless remote valve controlled cold water meter is in the mature mechanical cold water meter on the basis of the increase of electronic automatic sampling count, data wireless transmission, remote valve control and other functions, to facilitate the management of remote monitoring and management departments.



Features



1.Anti-theft water function: when there is strong magnetic interference metering signal, the water meter automatically closes the valve until the strong magnetic disappear, to prevent the use of strong magnetic water theft.
2.Under voltage prompt function: when the built-in battery voltage is insufficient, the automatic reporting system prompts for timely battery replacement.
3.Anti-rust dead valve function: automatic switch valve twice a month to prevent the valve from rust dead phenomenon caused by long time action, improve the stability of operation.
4.LORA spread spectrum wireless communication technology is adopted to ensure the normal transmission of data due to its wide signal coverage.
5.Battery compartment with convenient battery replacement for on-site battery replacement.
6.Support real-time data communication for remote monitoring and management.
7.Protection level: IP68



MAIN TECHNICAL DATA



Meter size Dia DN (mm)

Class

Q4

Q3

Q2

Q1

m3/h

L/h

DN15

2

3.125

2.5

50

31.25

DN20

5

4

80

50

DN25

7.875

6.3

100.8

0.063



Working condition:



Cold Water temperature ≤30°C

Working pressure≤1.0Mpa

Power supply: 3.6v lithium battery



INDICATING ERROR



At low zone is ±5% from minimum flow rate (qmin) to transitional flow rate (qt) exclusive boundary

At high zone is ±2% from transitional flow rate (qt) to overload flow rate(qs)

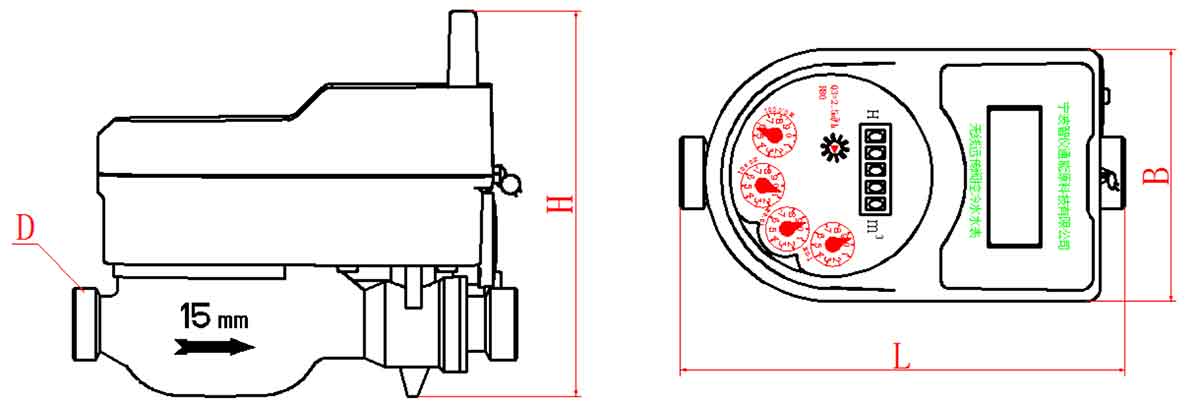

DIMENSIONS AND WEIGHT



Meter size Dia DN

L

B

H

Connecting Thread

Weight

length

Width

Height

mm

D

kg

15

165

91

145

G3/4

1.3

20

195

91

145

G1

1.4

25

225

91

142

G11/4

1.75



Installation and maintenance

1.Choose the diameter of water meter, should be decided according to pipe and use flow rate, and unfavorable use hot water
2.Installation location should avoid exposure, freezing, pollution and water flooding, so as to disassemble and read the meter
3.Horizontal water meter installed horizontally, so that literally up, and make the arrow on the case and flow direction the same
4.The newly installed pipe must be cleaned of stones, silt, hemp and other sundries in the pipe before the water meter can be installed to avoid the use of water meter fault
5.To measure correctly, the tap should be higher than the meter
6.Water meter and pipe should be connected by connecting pipe, sealing washer, connecting nut, do not violently disassemble and install, to avoid human damage to the normal use of water meter
7.Do not put anything on the top of the meter.Pay attention to moisture-proof and strictly prohibit water droplets from infiltrating into the water meter controller to damage the control system and affect the normal use of users

About Zhiyitong Energy

Ningbo Zhiyitong Energy Technology Co., Ltd. is a set of production, research and development, sales and technical services as one of the high-tech enterprises. The company is located in the west industrial park, xinpu town, cixi city, south bank of the world-famous hangzhou bay bridge, with a large manufacturing center of 42,600 square meters.The company has a registered capital of 50 million yuan, with an annual output of more than 1.5 million meters of various types, and its products are sold to more than 20 countries and regions such as Europe, Africa, the Middle East and southeast Asia.

As well known Wireless Remote Valve Control Cold Water Meter LORA suppliers in China, Our products mainly involve residential water and industrial water flow measurement, heating system heat measurement and other applications. We also wholesle Wireless Remote Valve Control Cold Water Meter LORA in bulk. Besides the customized parts,we also produce all kinds of conventional water and heat meters in line with international standards. OEM/ODM available.
