Product Details

Main Features

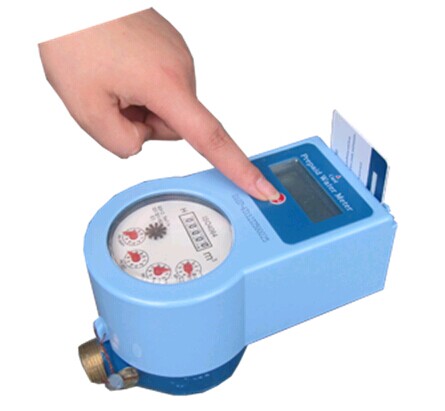

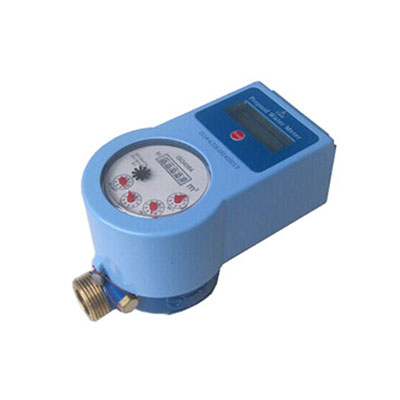

●Prepaid  water  meter,  one  meter  accepts  one  user  card  only,  blocking  illegal  cards

●Available for cold water (30°C) and hot water (90°C), sizes Ø 15  to 25 mm (½” – 1”).

●One price/ multi price of water is available

●Inquiring, statistics, Refund, Re-issuing card, replacing meter

●Body material: Brass



PREPAID WATER METER

Key features:

* ISO 4064 Class B* Made of Brass

* LCD and Dry-Dial display

* Horizontal installation





Advantage:

* Made of Brass which is up to the mustard of drinking water;

* Due to easily being operated by touch less card, this meter is all-sealed and good at water proof.

* Safely data save, 10 years data save after power off.

* Periodic open/close valve to prevent valve from rust buildup

* Battery can be used for 6 years due to low consumption design.

* Automatic close valve when being effected by strong magnet.

* Batter is easy to be replaced

* Patented ball valve which has high-temperature resistance, costs low consumption and causes low pressure loss





METER FUNCTION:

* Prepaid water meter, one meter accepts one user card only, blocking illegal cards

* One price/ multi price of water is available

* Inquiring, statistics, Refund, Re-issuing card, replacing meter

* Low credit alarm, Low battery alarm



REPLACING BATTERY



1- Take off meter seal Remove meter cover



PARAMETERS:

Maximum permissible error:

1- ± 5% error limit from minimum flow rate (q min) to transitional flow rate (qt) (included)

2- ± 2% error limit from transitional flow rate (qt) to overload flow rate (q Max)



Type

Accuracy

Class

Max.Operating Pressure

Max.Operating Loss at Q3

Temperature Class

(Q4) Max. Flow

(Q3) Nominal Flow

(Q2)Transitional Flow

(Q1) Min. Flow

Min.Reading

Max.Reading

Pa

(P)

(℃)

m3/h

m3

Cold

water

meter

Hot

water

meter

DN 15

B

16

0.63

30

90

3.125

2.5

0.050

0.031

0.0001

99999

DN 20

B

16

0.63

30

90

5.0

4.0

0.080

0.050

0.0001

99999

DN25

B

16

0.63

30

90

7.875

6.3

0.126

0.0787

0.0001

99999

Installation size:

TYPE

D1

D2

H

DN15

190

94

113

DN20

195

94

113

DN25

225

94

113



Service environment:

Indoor, Dry place Outdoor with meter box, being sheltered from direct sunlight

Widely used in charges for tap water, hot water in the house, apartment, commercial buildings and other place.
