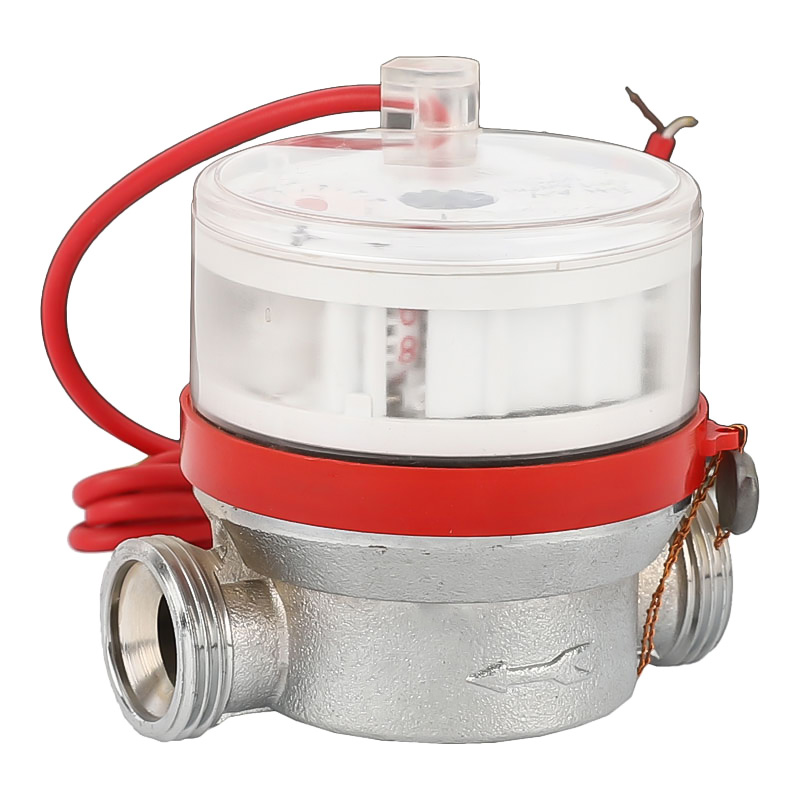

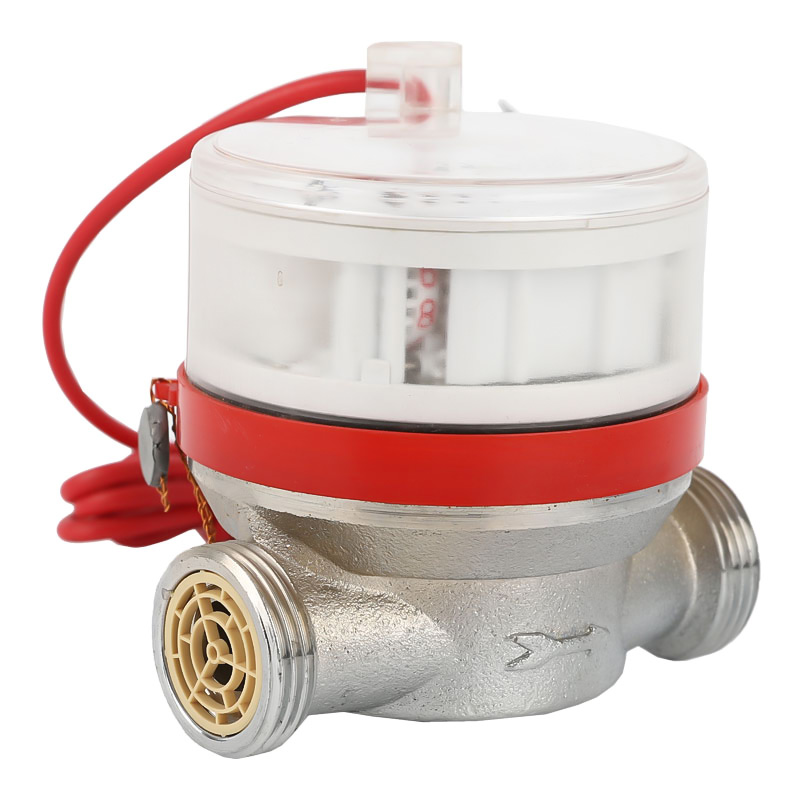

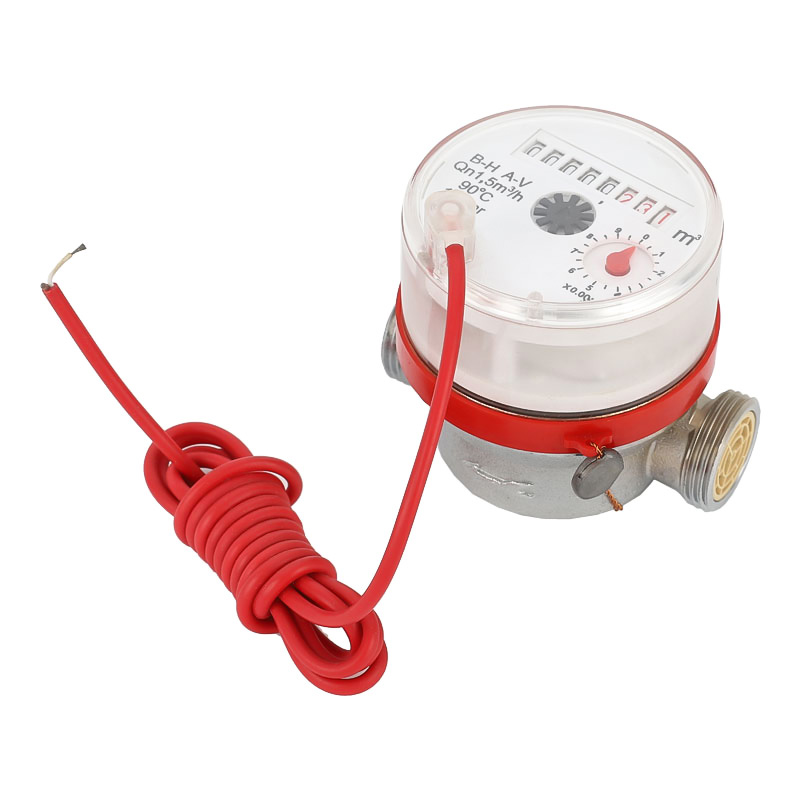

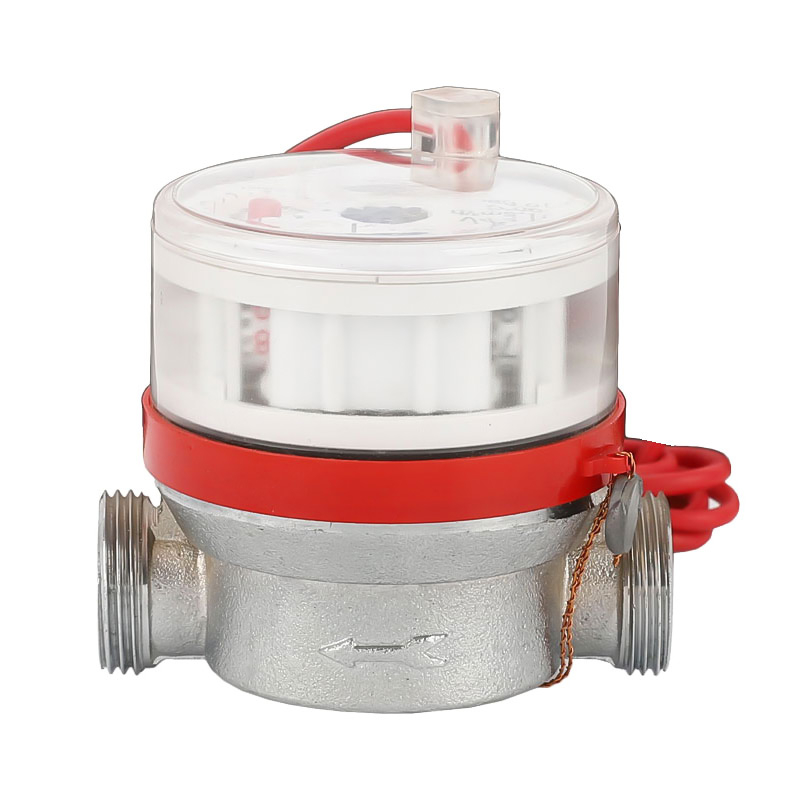

Wholesale Water Meters For Pulse Output Hot LXSGY-13D5

Water Meters For Pulse Output Hot LXSGY-13D5

0
Views: 156
Water Meters For Pulse Output Hot LXSGY-13D5
Location: China Minimum order quantity: -
Business Type: - Price: -
Brands: - Packing details: -
Certificate: - Delivery time: -
Model: - Payment method: -

Product Details

Pulse water meter

Model: LXSGY-13D



Main Features

Single-jet, Dry-dial, Magnetic drive, Anti-magnetic

Available for cold water (30°C) and hot water (90°C), sizes Ø 15  ( ½” ).

Body material: Brass

Conform to ISO 4064, Class B

Applicable to data collector, Reed switch



Technical specification

 Pulse option: 10 liters/pulse



MAIN TECHNICAL DATA



Meter size
Dia
DN
(mm)

Class

qs
Overload
Flow

qs
Nominal
Flow

qs
Transitional
Flow

Qmin
Min
Flow

Min
Reading
Lectura

Max
Reading
Lectura

m3/h

1/h

m3

13

A

3

1.5

150

60

0.0001

99999

B

120

30



INDICATING ERROR



At low zone is ±5% from minimum flow rate  (qmin)  to transitional flow rate (qt) exclusive boundary

At high zone is ±2% from transitional flow rate (qt) to overload flow rate (qs)



DIMENSIONS AND WEIGHT



Meter size
Dia
DN
(mm)

Length(L)

Width(B)

Height(H)

Connecting Thread
D

Weight
Kg

mm





13

110

80

80

G 3/4B

0.7



SELECTED METER TYPE

1.Reed switch

2.Connecting wire 1.5m

3.Sensor connecting means:

Two cores wire for Reed Switch



WORKING CONDITION

Water temperature:≤50℃ for cold water meter

Water temperature:≤90℃ for hot water meter

Working pressure:≤1.0Mpa

About Zhiyitong Energy

Ningbo Zhiyitong Energy Technology Co., Ltd. is a set of production, research and development, sales and technical services as one of the high-tech enterprises. The company is located in the west industrial park, xinpu town, cixi city, south bank of the world-famous hangzhou bay bridge, with a large manufacturing center of 42,600 square meters.The company has a registered capital of 50 million yuan, with an annual output of more than 1.5 million meters of various types, and its products are sold to more than 20 countries and regions such as Europe, Africa, the Middle East and southeast Asia.

As well known Water Meters For Pulse Output Hot LXSGY-13D5 suppliers in China, Our products mainly involve residential water and industrial water flow measurement, heating system heat measurement and other applications. We also wholesle Water Meters For Pulse Output Hot LXSGY-13D5 in bulk. Besides the customized parts,we also produce all kinds of conventional water and heat meters in line with international standards. OEM/ODM available.
