Water Meters For Pulse Output LXSGY-15E-50E

Product Details

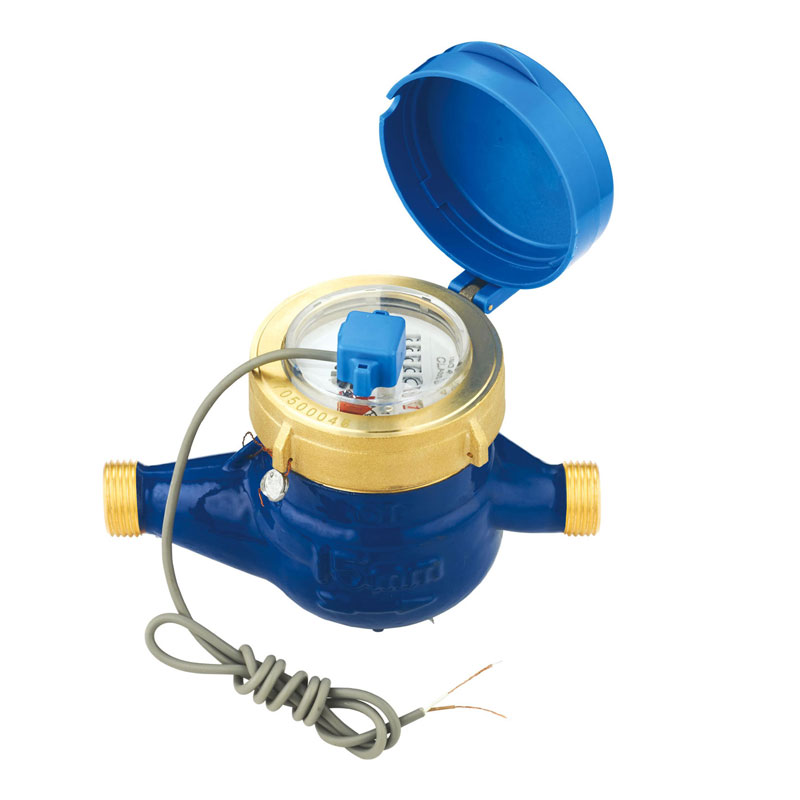

Multi jet dry type water meter with pulse output

Model: LXSGY-15E-50E



Main Features

Transmisson sensor: Reed switch

Multi jet Dry dial

Material body: Cast iron

Szes Ø15  to  50mm, (½” – 2”), Available for cold water (30°C), hot(90°C)

ISO 4064, Class B Standard

Universal use. Easy for interchange & maintenance

Specification:



Pulse constant: 1 liters/pulse, 10 liters/pulse or 100 liters/pulse for option

Type: Multi jet dry type water meter



MAIN TECHNICAL DATA



Meter size Dia DN (mm)	Class	qs Overload Flow	qs Nominal Flow	qs Transitional Flow	Qmin Min Flow	Min Reading Lectura	Max Reading Lectura
		m3/h		1/h		m3
15	A	3	1.5	150	60	0.0001	99999
	B			120	30
20	A	5	2.5	250	100	0.0001	99999
	B			200	50
25	A	7	3.5	350	140	0.0001	99999
	B			280	70
32	A	12	6.0	600	240	0.0001	99999
	B			480	120
40	A	20	10	1000	400	0.001	99999
	B			800	200
50	A	30	15	4500	1200	0.001	99999
	B			3000	450



INDICATING ERROR



At low zone is ±5% from minimum flow rate  (qmin)  to transitional flow rate (qt) exclusive boundary

At high zone is ±2% from transitional flow rate (qt) to overload flow rate (qs)



SELECTED METER TYPE



1.Reed switch

2.Connecting wire 1.5m

3.Sensor connecting means:

Three cores wire for reed switch



WORKING CONDITION



Water temperature：≤50℃ for cold water meter

Water temperature：≤90℃ for hot water meter

Working pressure：≤1.0Mpa
