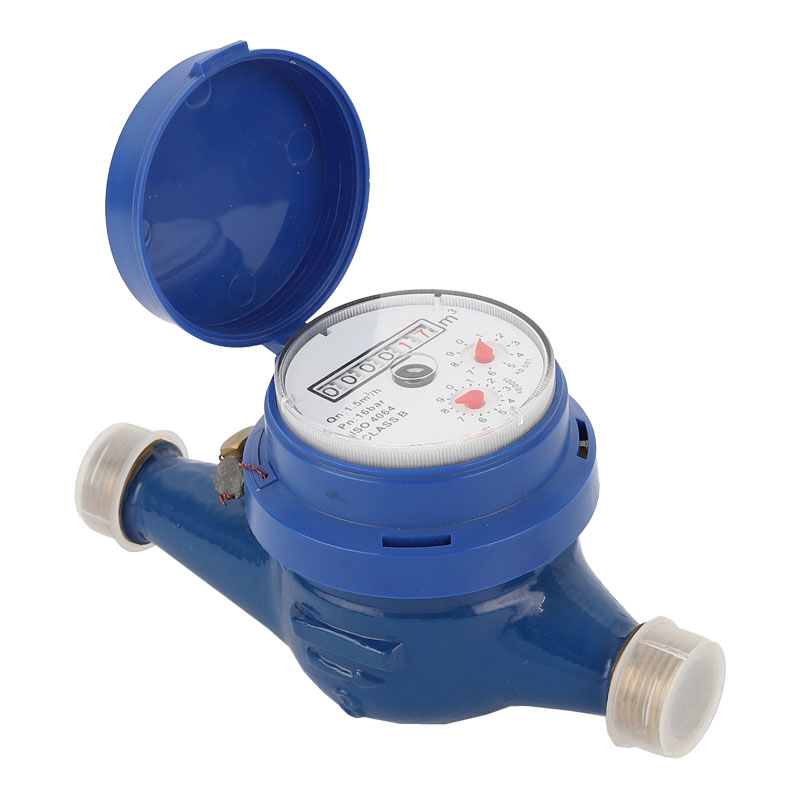

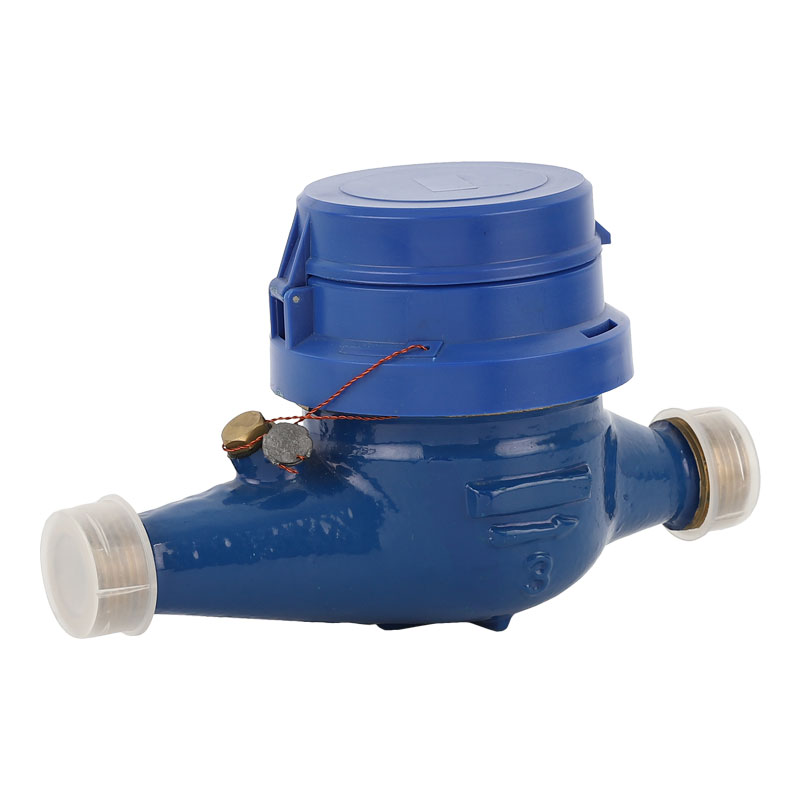

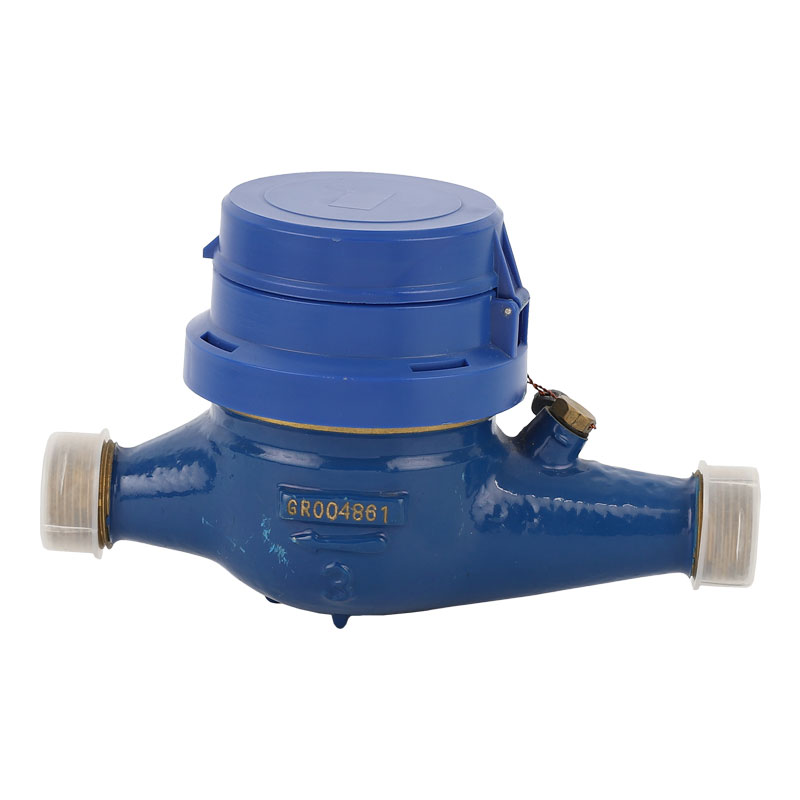

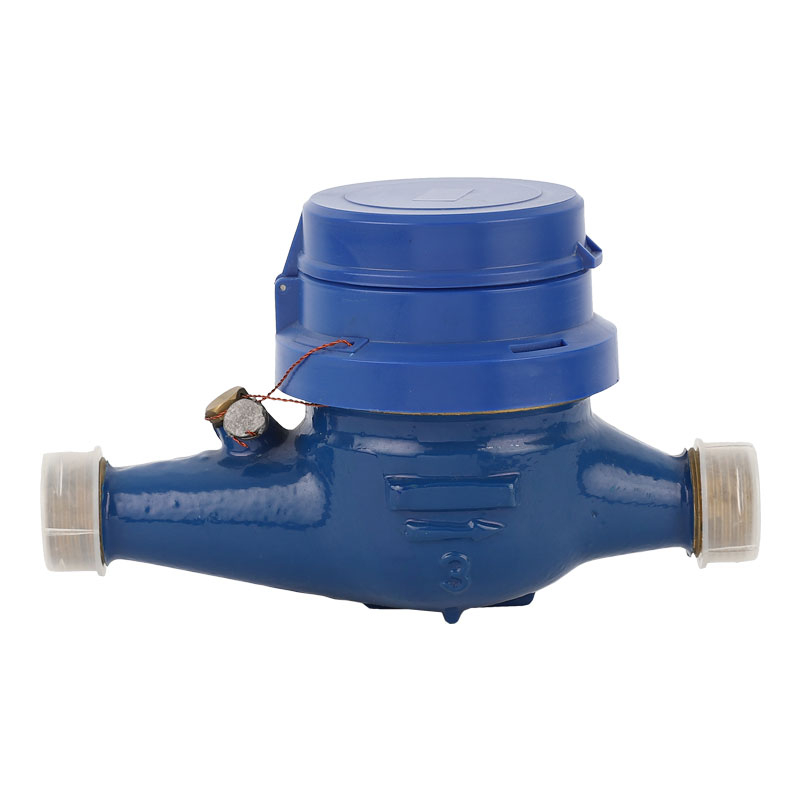

Rotary vane wheel dry dial cold water meter
Model: LXSG-15E5~20E5
Main Features
●Multi jet, Dry-dial, Magnetic drive, Anti-magnetic
●Multi-jet
●Szes Ø15 to 20mm, (½” – 3/4”), Available for cold water (30°C)
●Vacuum sealed register ensures the dial kept free from fog and keep the reading clear in a long term service
●Measuring accuracy conform to ISO 4064 class B Standard
●Universal use.Easy for interchange & maintenance
MAIN TECHNICAL DATA
| Meter size Dia DN(mm) | Class | qs Overload Flow | qs Nominal Flow | qs TransitionalFlow | Qmin Min Flow | Min Reading Lectura | Max Reading Lectura |
| m3/h | 1/h | m3 | |||||
| 15 | A | 3 | 1.5 | 150 | 60 | 0.0001 | 99999 |
| B | 120 | 30 | |||||
| 20 | A | 5 | 2.5 | 250 | 100 | 0.0001 | 99999 |
| B | 200 | 50 | |||||
INDICATING ERROR
At low zone is ±5% from minimum flow rate (qmin) to transitional flow rate (qt) exclusive boundary
At high zone is ±2% from transitional flow rate (qt) to overload flow rate (qs)
DIMENSIONS AND WEIGHT
| Meter size Dia DN (mm) | Length | Width | Height | Connrcting Thread D | Weight Kg |
| mm | |||||
| 15 | 165 | 80 | 102 | G3/4B | 1.1 |
| 20 | 190 | 80 | 105 | G 1B | 1.4 |
WORKING CONDITION
Water temperature：≤50℃ for cold water meter
Water temperature：≤90℃ for hot water meter
Working pressure：≤1.6Mpa
