Wholesale Woltman Water Meters Type LXLC-50~200

Woltman Water Meters Type LXLC-50~200

0
Views: 144
Woltman Water Meters Type  LXLC-50~200
Location: China Minimum order quantity: -
Business Type: - Price: -
Brands: - Packing details: -
Certificate: - Delivery time: -
Model: - Payment method: -

Product Details

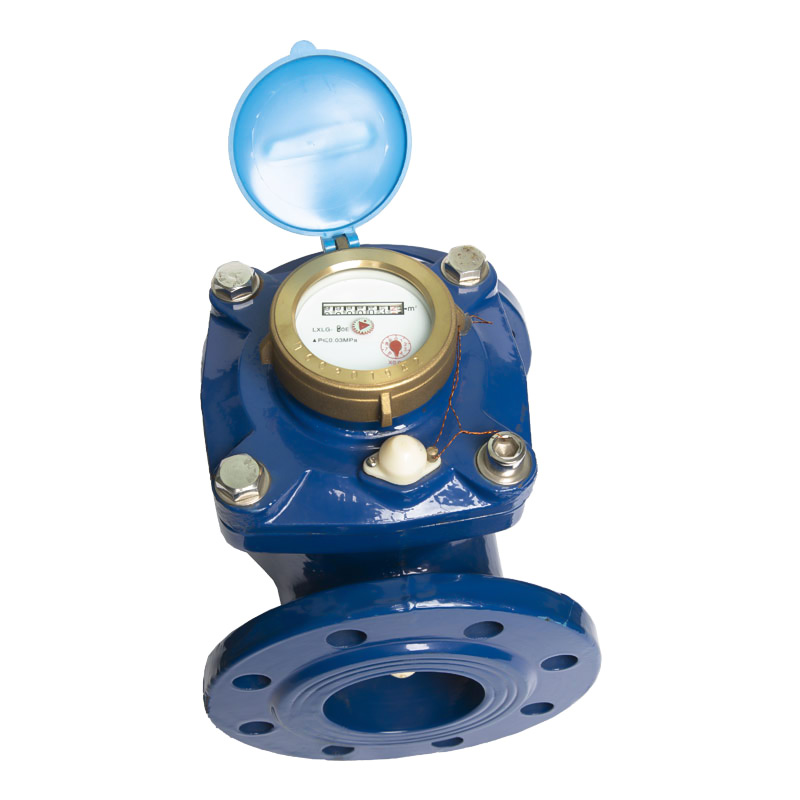

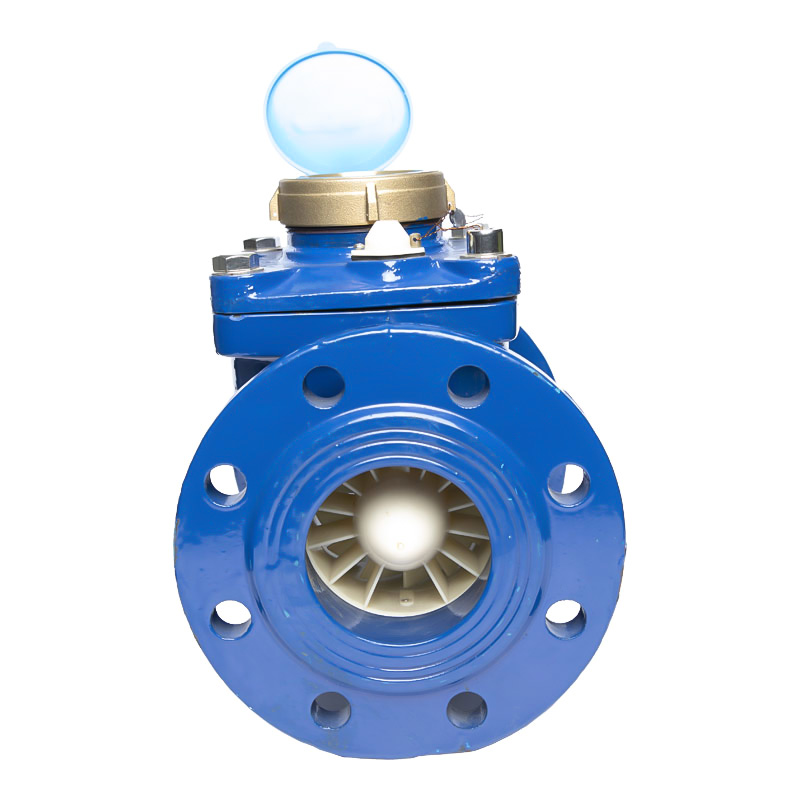

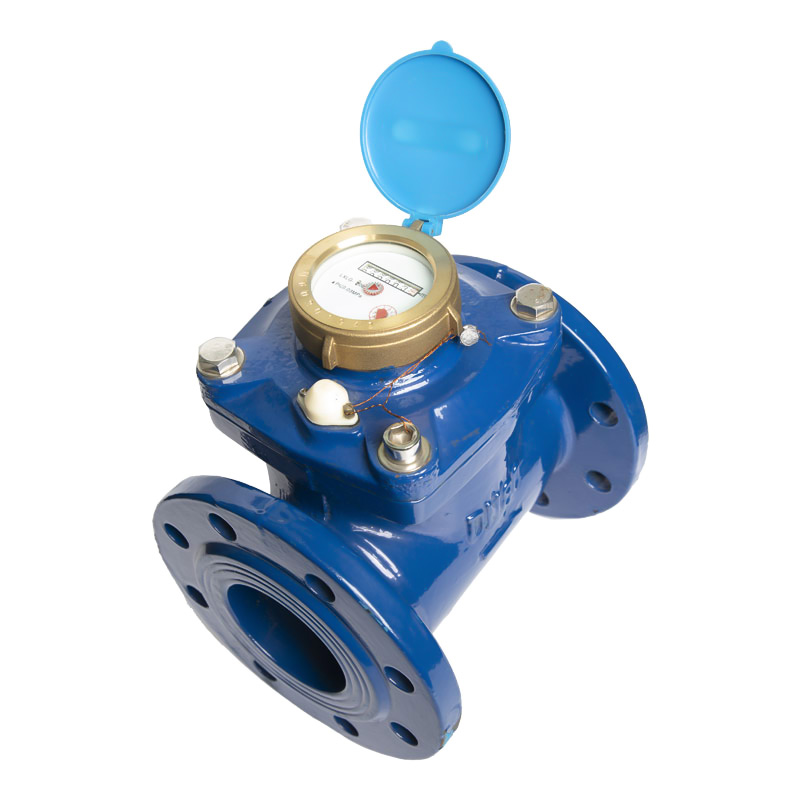

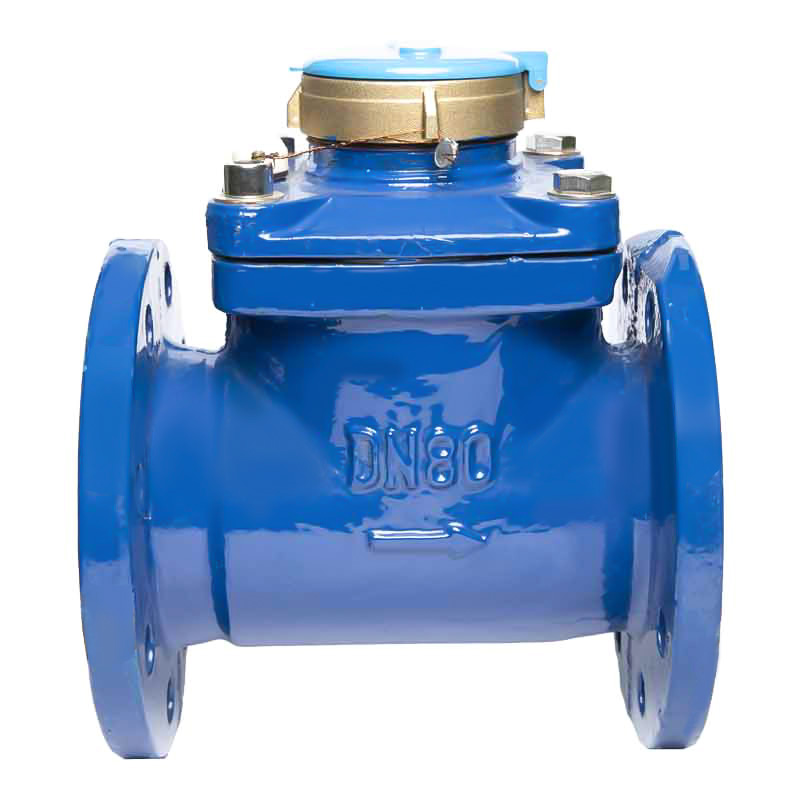

Detachable Woltman Type Water Flow Meter

Model: LXLC-50-200



Dry dial with magnetic transmission, Available for cold water (30°C) and hot water (90°C), sizes Ø 50  to 200 mm (2” – 8”). sealed mechanism with direct reading on numbered rolls. Brass ring. Horizontal Woltmann with removable insert. Used in industry. Pre-equipped for impulse emitter device (applicable even after installation). First quality materials resistant to corrosion.



Main Features

1.Dry-dial,Magnetic drive

2.Vacuum sealed register ensures the dial kept free from fog and keep the reading clear in a long term service

3.Selected high quality materials for steady & reliable characteristic

4.Measuring accuracy conform to ISO 4064 class B Standard

5.Low head loss

6.Register for universal use within this range detachable without removing the meter from the pipeline for a easy maintenance and replacement



Description

This range of water meter is used to measure the total quantity of cold water which consumed in industrial enterprise & mining,passing through the pipeline.



Working condition

Water temperature of cold water meter:≤50℃

Water temperature of hot water meter: ≤90℃

Working pressure:≤1.6MPa



MAIN TECHNICAL DATA

Meter size Dia

DN

(mm)

Class





Nominal

Flow

Transitional

Flow

Qmin Min

Flow

Min Reading

Lectura

Max Reading

Lectura

m3/h

m3

50

15



4.5

12

0.01

999999.99

3

0.45

80

40



12

3.2

0.01

8

1.2

100

60



18

4.8

0.01

12

1.8

150

150



45

12

0.1

9999999.9

30

4.5

200

250



75

20

0.1

50

7.5



INDICATING ERROR

At low zone is ±5% from minimum flow rate  (qmin)  to transitional flow rate (qt) exclusive boundary

At high zone is ±2% from transitional flow rate (qt) to overload flow rate (qs)



DIMENSIONS AND WEIGHT

Meter size Dia
DN
(mm)

L

D

D1

H

Flange bolt

Weight

mm

dxn

kg

50

190

Φ195

Φ160

Φ239

M16*8

13

80

225(250)

Φ195

Φ160

Φ239

M16*8

17

100

250

Φ215

Φ180

Φ259

M16*8

20

200

300

Φ280

Φ240

Φ300

M25*8

33

250

350

Φ335

Φ295

Φ361

M20*8

47
