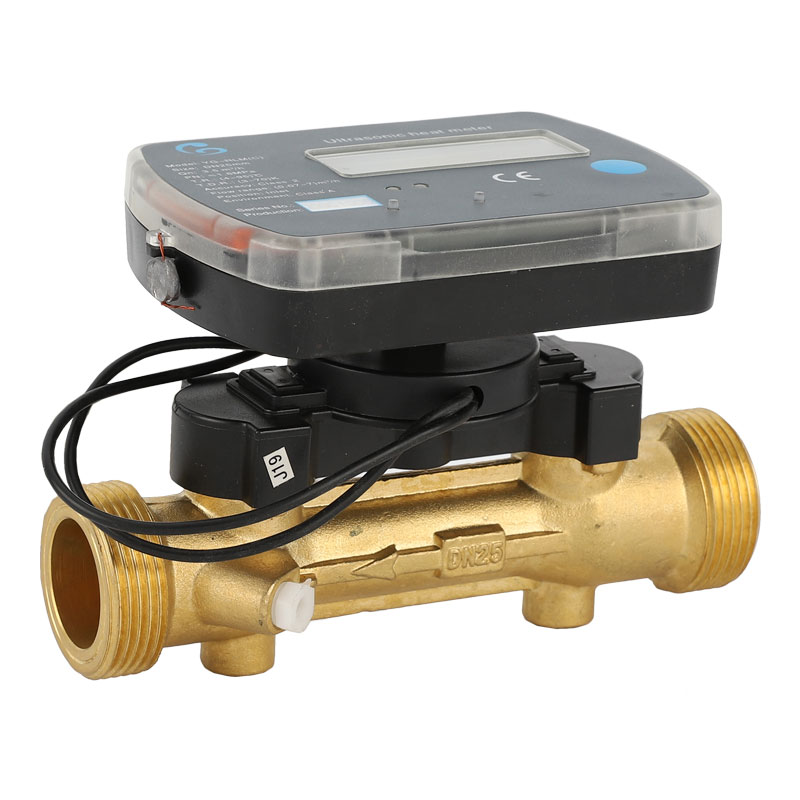

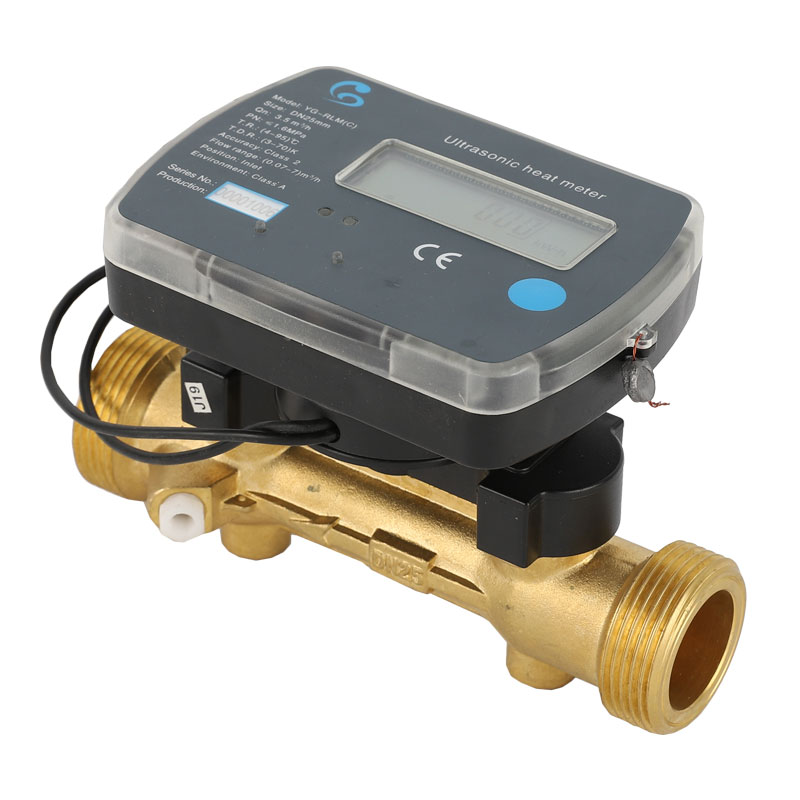

heat energy meter( ultrasonic), M-BUS, RS-485, Pulse output
Model: YG-RLM(C)-15-40
1) Water will release heat if temperature decreases. Released heat is ratable with temperature difference and flowing volume through meter.
2) Flowing volume signal comes from flow sensor, temperature difference comes from temperature sensor pair,as result the calculator will calculate heat according to the flowing volume and temperature difference.
3) Measurement unit: Kwh, Gcal for option
4) For Ultrasonic heat meter, communication via M-BUS, RS-485 for option.
Models and Specifications
Model
|
Qn(m3/h)
|
Length(mm)
|
DN(mm)
|
Sensor length
|
Display
|
Romote
|
Class
|
RLM(C)-15-0.6
|
0.6
|
110
|
15
|
1.5m
|
kw/h
|
M-BUS
|
2
|
RLM(C)-15-1.5
|
1.5
|
110
|
15
|
1.5m
|
kw/h
|
M-BUS
|
2
|
RLM(C)-20-2.5
|
2.5
|
130
|
20
|
1.5m
|
kw/h
|
M-BUS
|
2
|
RLM(C)-25-3.5
|
3.5
|
160
|
25
|
1.5m
|
kw/h
|
M-BUS
|
2
|
RLM(C)-32-6.0
|
6
|
180
|
32
|
1.5m
|
kw/h
|
M-BUS
|
2
|
RLM(C)-40-10
|
10
|
200
|
40
|
1.5m
|
kw/h
|
M-BUS
|
2
|
Features:
1.Flow range:0.03~20m3/h
2.Minimum temperature difference is 3℃
3.Can be mounted in both horizontal and vertical running pipes
4.Intelligent design and can record energy and flowing volume.
5.Small size, Light weight and beautiful appearance.
6.Measuring device have no motion parts and no abrasion.It won’t be affected by working time.
7.High accuracy and meet EN 1434 metrological class B and CJ128 metrological class 2.
8.More than 10 year long-life battery
9.M-BUS, RS-485 remote system.
10.Not affected by external magnet field and steady

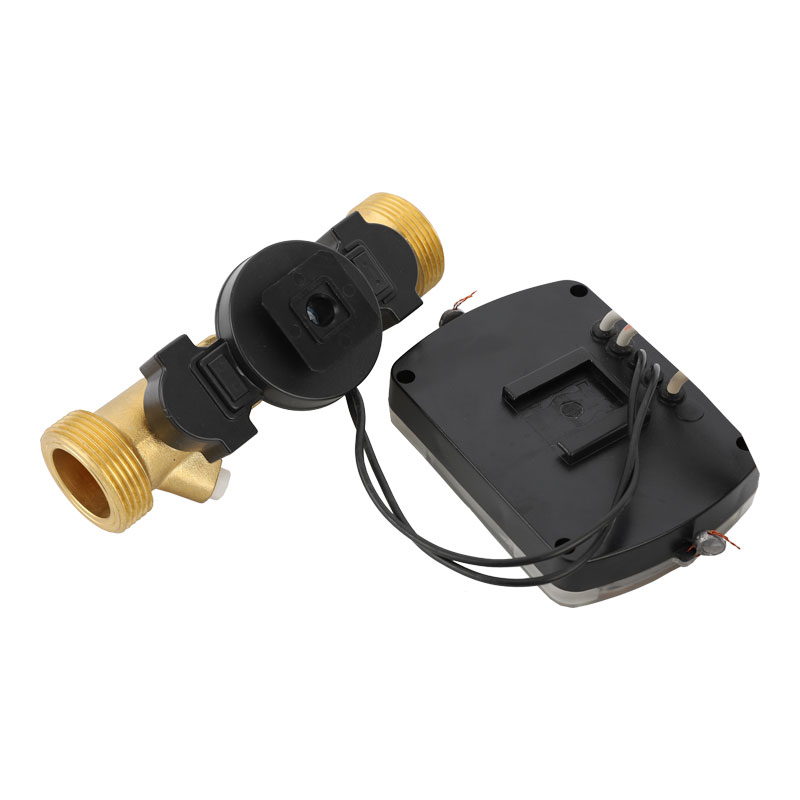

11.function.Electronic parts can be took down from flow sensor and
12.easy reading.
13.Total flow range(q s/q i =100:1)
14.Low start flow volume
15.Can calculate both heat and cold energy.Installation in the return flow line(optionally in
16.forward flow line)
17.Temperature sensor pair Pt1000.
18. Environment temperature grade:A
Main Technical Parameters:
Normal Flow(Qn)
|
0.6m3/h
|
1.5m3/h
|
2.5m3/h
|
Flow range(m3/h)
|
0.012~1.2
|
0.03~3
|
0.05~5
|
Pressure loss(KPa/Qp)
Reference diagram I
|
24
|
24
|
24
|
Max. Pressure(MPa)
|
1.6
|
Temperature range(℃)
|
4~95
|

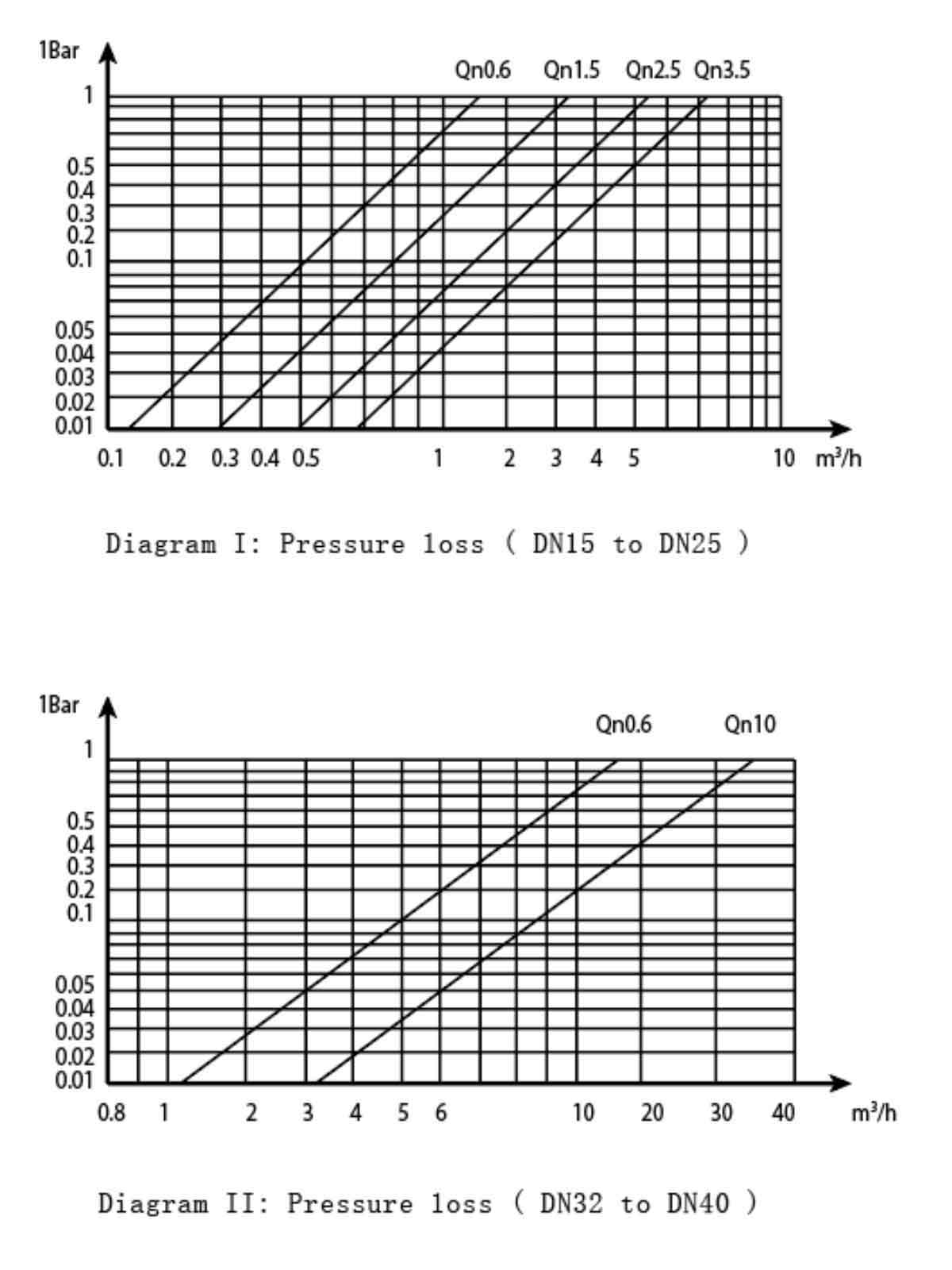

Pressure Loss Diagram:
Measuring Features:
Water will release heat if temperature decreases. Released heat is ratable with temperature difference and flow volume through meter. Flow volume signal comes from flow sensor, temerature difference comes from temperature sensor pair, as result the calculator will calculate heat according to the flowing volume and temperature difference.
Water pressure: ≤1.6Mpa
Measuring accuracy: Class 2
The max tolerance is shown in the curve below:
E=±(3+4Δθmin/Δθ+0.02qp/q)%
Therein,Δθmin means the minimum temperature difference, and Δθthe actual temperature difference.
Dimensional Parameters:
Normal flow(Qn)
|
m3/h
|
0.6
|
1.5
|
2.5
|
3.5
|
Normal DN
|
mm
|
15
|
15
|
20
|
25
|
Body thread
|
----
|
G3/4”B
|
G3/4”B
|
G1”B
|
G1 1/4”B
|
Connection thread
|
----
|
1/2”
|
1/2”
|
3/4”
|
1"
|
Height
|
mm
|
115
|
115
|
105
|
110
|
Length
|
mm
|
110
|
110
|
130
|
160
|
Temperature sensor pair
Temperature sensor pair PT1000 meets Norm. DIN EN60751
Sensor is soldered on PCA. The length of sensor lead is 1.5m. (Optional 3m, 10m)
Diameter of sensor is diameter 5.0mm(optional diameter 5.2mm )
Mounting for heat meters:

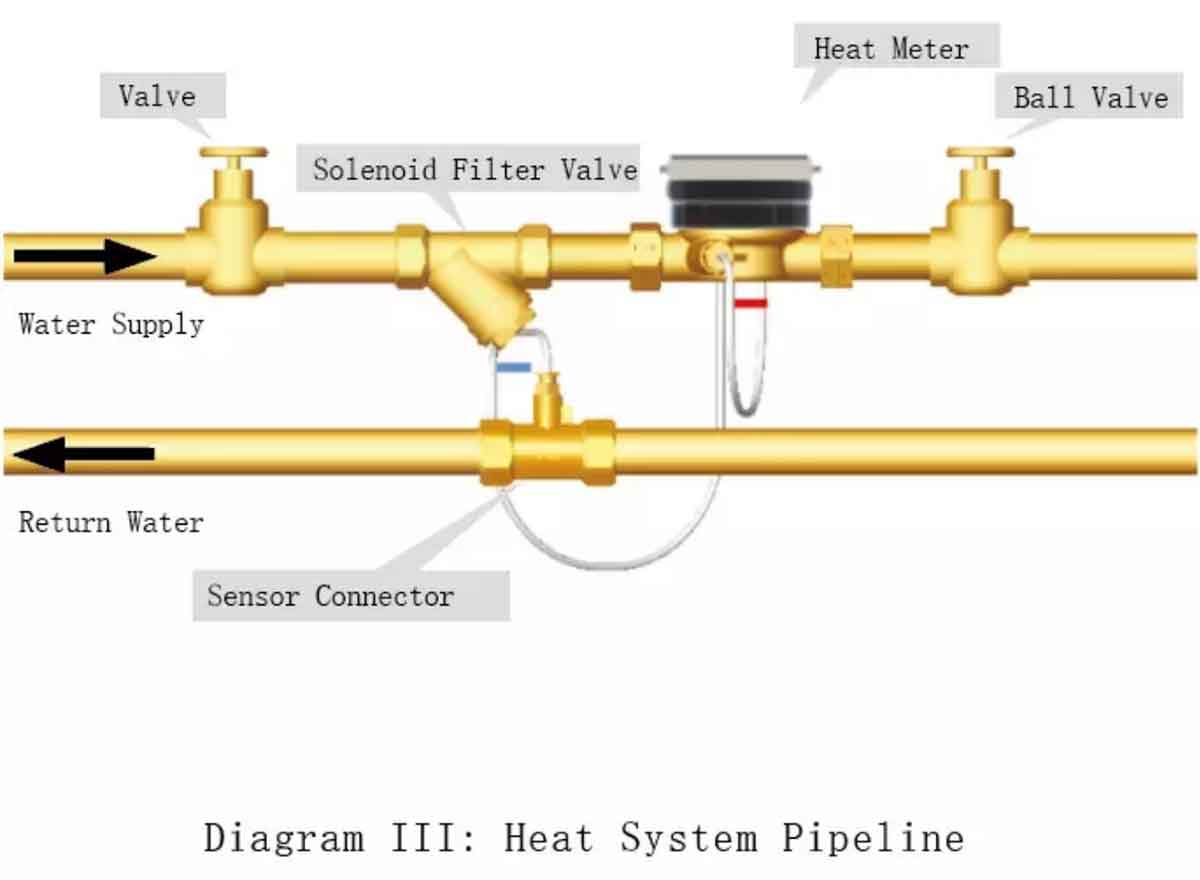

Heat system pipeline
