Wholesale Multi-jet Series Water Meter LXSG-15E-50E

Multi-jet Series Water Meter LXSG-15E-50E

0
Views: 111

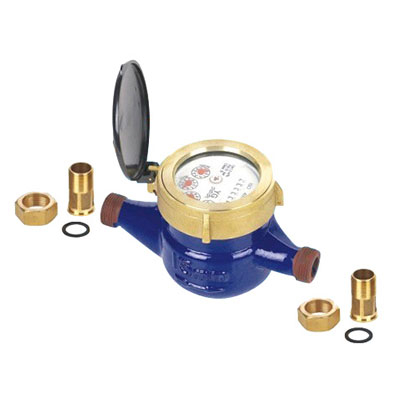

Multi-jet Series Water Meter LXSG-15E-50E
Location: China Minimum order quantity: -
Business Type: - Price: -
Brands: - Packing details: -
Certificate: - Delivery time: -
Model: - Payment method: -

Product Details

Main Features

●Multi jet, Dry-dial, wet dial and liquid sealed for option

●Material body: Cast gray iron or ductile iron for option

●Szes Ø15 to 50mm, (½” – 2”), Available for cold water (30°C), hot(90°C)

●Measuring accuracy conform to ISO 4064 class B Standard

●Universal use. Easy for interchange & maintenance



MAIN TECHNICAL DATA

Meter size
Dia
DN
(mm)
Class qs
Overload
Flow
qs
Nominal
Flow
qs
Transitional
Flow
Qmin
Min
Flow
Min
Reading
Lectura
Max
Reading
Lectura
m3/h 1/h m3
15 A 3 1.5 150 60 0.0001 99999
B 120 30
20 A 5 2.5 250 100 0.0001 99999
B 200 50
25 A 7 3.5 350 140 0.0001 99999
B 280 70
32 A 12 6.0 600 240 0.0001 99999
B 480 120
40 A 20 10 1000 400 0.001 99999
B 800 200
50 A 30 15 4500 1200 0.001 99999
B 3000 450



INDICATING ERROR

At low zone is ±5% from minimum flow rate  (qmin)  to transitional flow rate (qt) exclusive boundary

At high zone is ±2% from transitional flow rate (qt) to overload flow rate (qs)



DIMENSIONS AND WEIGHT

Meter size
Dia
DN
(mm)
Length Width Height Connecting Thread
D
Weight
Kg
mm
15 165/190 99 104 G 3/4B 1.5/1.6
20 190/195 99 106 G 1B 1.7/1.8
25 260/225 104 120 G1 1/4B 2.6/2.4
32 260/230 104 120 G1 1/2B 2.8/2.7
40 300/245 125 155 G 2'B 5.4/4.5
50 300 125 155 G2 1/2 B 7.2
280 165 175 FLANGE CONNECTING CONFORM TO
GB4216.4 D=165 D1=125
14



WORKING CONDITION

Water temperature:≤50℃ for cold water meter

Water temperature:≤90℃ for hot water meter

Working pressure:≤1.0Mpa

About Zhiyitong Energy

Ningbo Zhiyitong Energy Technology Co., Ltd. is a set of production, research and development, sales and technical services as one of the high-tech enterprises. The company is located in the west industrial park, xinpu town, cixi city, south bank of the world-famous hangzhou bay bridge, with a large manufacturing center of 42,600 square meters.The company has a registered capital of 50 million yuan, with an annual output of more than 1.5 million meters of various types, and its products are sold to more than 20 countries and regions such as Europe, Africa, the Middle East and southeast Asia.

As well known Multi-jet Series Water Meter LXSG-15E-50E suppliers in China, Our products mainly involve residential water and industrial water flow measurement, heating system heat measurement and other applications. We also wholesle Multi-jet Series Water Meter LXSG-15E-50E in bulk. Besides the customized parts,we also produce all kinds of conventional water and heat meters in line with international standards. OEM/ODM available.

factory of Ningbo Zhiyitong Energy Technology Co., Ltd
