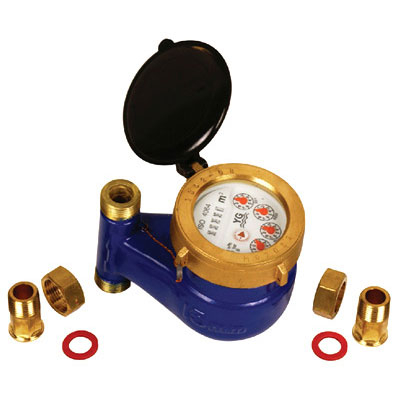

Main Features
●Multi-jet, Dry-dial, vertical type
●Iron body or Brass body for option.
●Available for cold water (30°C) and hot water (90°C), sizes Ø 15 to 25 mm (½” – 1”).
●Installed in vertical pipeline and is suitable for household as branch meter
●Conform to ISO4064 standard
MAIN TECHNICAL DATA
| Meter size Dia DN (mm) | Class | qs Overload Flow | qs Nominal Flow | qs Transitional Flow | Qmin Min Flow | Min Reading Lectura | Max Reading Lectura |
| m3/h | 1/h | m3 | |||||
| 15 | A | 3 | 1.5 | 150 | 60 | 0.0001 | 99999 |
| B | 120 | 30 | |||||
| 20 | A | 5 | 2.5 | 250 | 100 | 0.0001 | 99999 |
| B | 200 | 50 | |||||
| 25 | A | 7 | 3.5 | 350 | 140 | 0.0001 | 99999 |
| B | 280 | 70 | |||||
INDICATING ERROR
At low zone is ±5% from minimum flow rate (qmin) to transitional flow rate (qt) exclusive boundary
At high zone is ±2% from transitional flow rate (qt) to overload flow rate (qs)
DIMENSIONS AND WEIGHT
| Meter size Dia DN (mm) | Length | Width | Height | Connrcting Thread D | Weight Kg |
| mm | |||||
| 15 | 95 | 135 | 120 | G3/4B | 1.5 |
| 20 | 99 | 150 | 130 | G 1B | 1.7 |
| 25 | 110 | 160 | 130 | G1 1/4 B | 3 |
WORKING CONDITION
Water temperature：≤50℃ for cold water meter
Water temperature：≤90℃ for hot water meter
Working pressure：≤1.0Mpa
Ningbo Zhiyitong Energy Technology Co., Ltd. is a set of production, research and development, sales and technical services as one of the high-tech enterprises. The company is located in the west industrial park, xinpu town, cixi city, south bank of the world-famous hangzhou bay bridge, with a large manufacturing center of 42,600 square meters.The company has a registered capital of 50 million yuan, with an annual output of more than 1.5 million meters of various types, and its products are sold to more than 20 countries and regions such as Europe, Africa, the Middle East and southeast Asia.
As well known Multi-jet Series Water Meter LXSGL-15E-25E suppliers in China, Our products mainly involve residential water and industrial water flow measurement, heating system heat measurement and other applications. We also wholesle Multi-jet Series Water Meter LXSGL-15E-25E in bulk. Besides the customized parts,we also produce all kinds of conventional water and heat meters in line with international standards. OEM/ODM available.
