Piston Water Meters LXH-15A-20A

Product Details

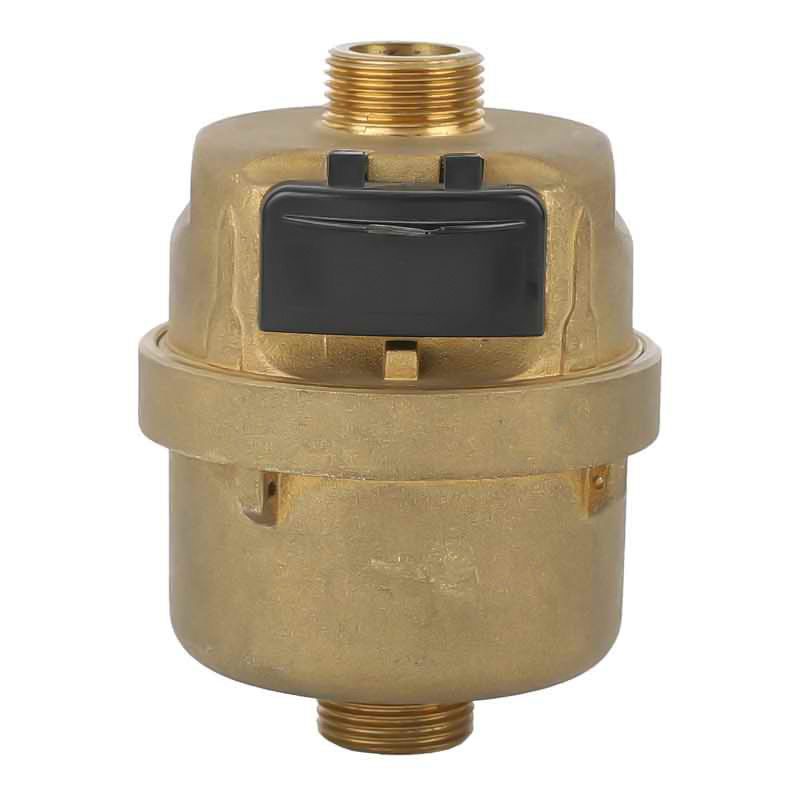

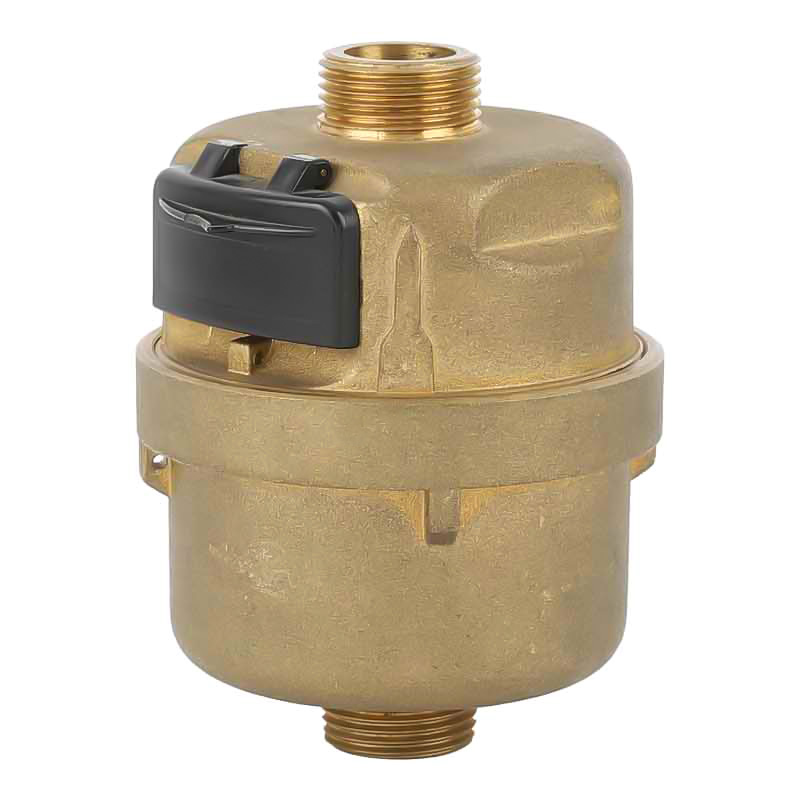

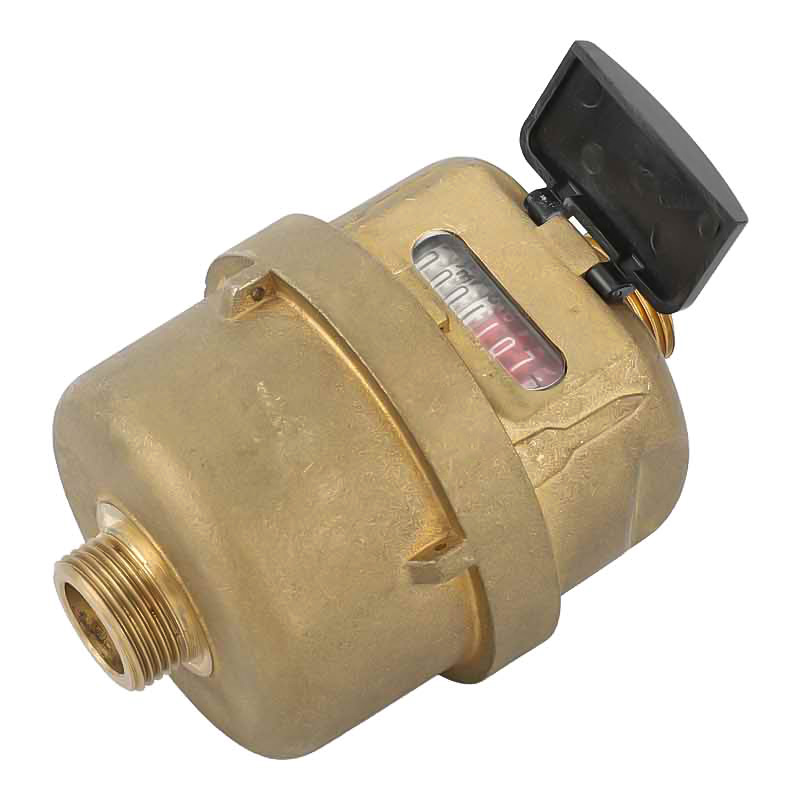

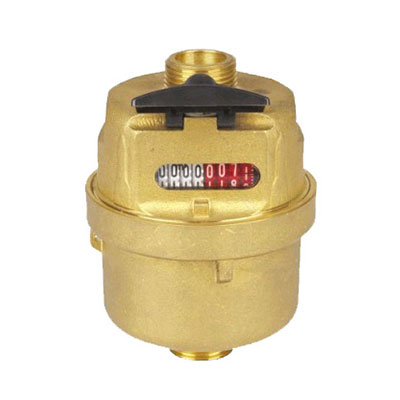

Volumetric rotary piston Water Meter

Model: LXH-15A-20A



Main Features

Volumetric water meter, Brass body

Sizes Ø 15  to 20 mm (½” – 3/4”), Available for cold water (30°C)

Selected high quality materials for steady & reliable characteristic and good looking

Especially suitable for  the area ot bad water quality Note:technical data conform to ISO4064 Class C standard



MAIN TECHNICAL DATA



Meter size Dia DN (mm)	Class	qs Overload Flow	qs Nominal Flow	qs Transitional Flow	Qmin Min Flow	Min Reading Lectura	Max Reading Lectura
		m3/h		1/h		m3
15	C	3	1.5	22.5	15	0.0001	99999
20	C	5	2.5	37.5	25	0.0001	99999



INDICATING ERROR



At low zone is ±5% from minimum flow rate  (qmin)  to transitional flow rate (qt) exclusive boundary

At high zone is ±2% from transitional flow rate (qt) to overload flow rate (qs)



DIMENSIONS AND WEIGHT



Meter size Dia DN (mm)	Length	Width	Height	Connecting Thread	Weight
	mm			D	D
15	115/165	86	115	G 3/4B	1.1/1.3
20	130/190	94/103	115	G 1B	1.7/2.0



WORKING CONDITION



Water temperature：≤50℃ for cold water meter

Water temperature：≤90℃ for hot water meter

Working pressure：≤1Mpa
