Product Details
Main Features
●Prepaid water meter, one meter accepts one user card only, blocking illegal cards
●Available for cold water (30°C) and hot water (90°C), sizes Ø 15 to 25 mm (½” – 1”).
●One price/ multi price of water is available
●Inquiring, statistics, Refund, Re-issuing card, replacing meter
●Body material: PPO

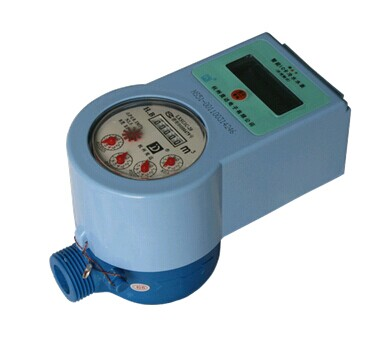

PREPAID WATER METER
Key features:
* ISO 4064 Class B* Made of PPO

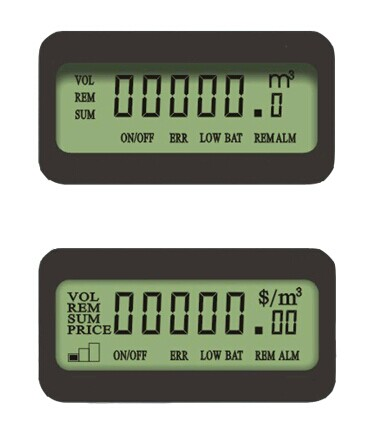

* LCD and Dry-Dial display
* Horizontal installation
Advantage:
* Made of PPO which is up to the mustard of drinking water;

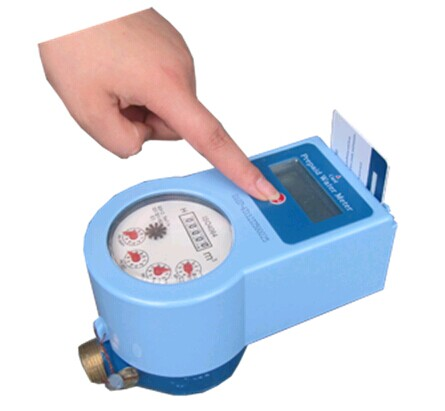

* Due to easily being operated by touch less card, this meter is all-sealed and good at water proof.
* Safely data save, 10 years data save after power off.
* Periodic open/close valve to prevent valve from rust buildup
* Battery can be used for 6 years due to low consumption design.
* Automatic close valve when being effected by strong magnet.
* Batter is easy to be replaced
* Patented ball valve which has high-temperature resistance, costs low consumption and causes low pressure loss
METER FUNCTION:
* Prepaid water meter, one meter accepts one user card only, blocking illegal cards
* One price/ multi price of water is available
* Inquiring, statistics, Refund, Re-issuing card, replacing meter
* Low credit alarm, Low battery alarm

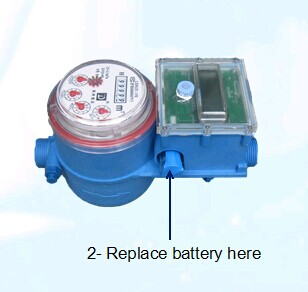

REPLACING BATTERY
1- Take off meter seal Remove meter cover
PARAMETERS:
Maximum permissible error:
1- ± 5% error limit from minimum flow rate (q min) to transitional flow rate (qt) (included)
2- ± 2% error limit from transitional flow rate (qt) to overload flow rate (q Max)
|
Type
|
Accuracy
Class
|
Max.Operating Pressure
|
Max.Operating Loss at Q3
|
Temperature Class
|
(Q4) Max. Flow
|
(Q3) Nominal Flow
|
(Q2)Transitional Flow
|
(Q1) Min. Flow
|
Min.Reading
|
Max.Reading
|
|
Pa
|
(P)
|
(℃)
|
m3/h
|
m3
|
|
Cold
water
meter
|
Hot
water
meter
|
|
DN 15
|
B
|
16
|
0.63
|
30
|
90
|
3.125
|
2.5
|
0.050
|
0.031
|
0.0001
|
99999
|
|
DN 20
|
B
|
16
|
0.63
|
30
|
90
|
5.0
|
4.0
|
0.080
|
0.050
|
0.0001
|
99999
|
|
DN25
|
B
|
16
|
0.63
|
30
|
90
|
7.875
|
6.3
|
0.126
|
0.0787
|
0.0001
|
99999
|

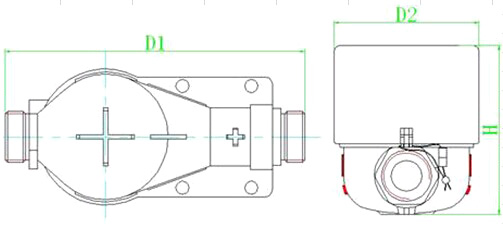

Installation size:
|
TYPE
|
D1
|
D2
|
H
|
|
DN15
|
190
|
94
|
113
|
|
DN20
|
195
|
94
|
113
|
|
DN25
|
225
|
94
|
113
|
Service environment:
Indoor, Dry place Outdoor with meter box, being sheltered from direct sunlight
Widely used in charges for tap water, hot water in the house, apartment, commercial buildings and other place.
