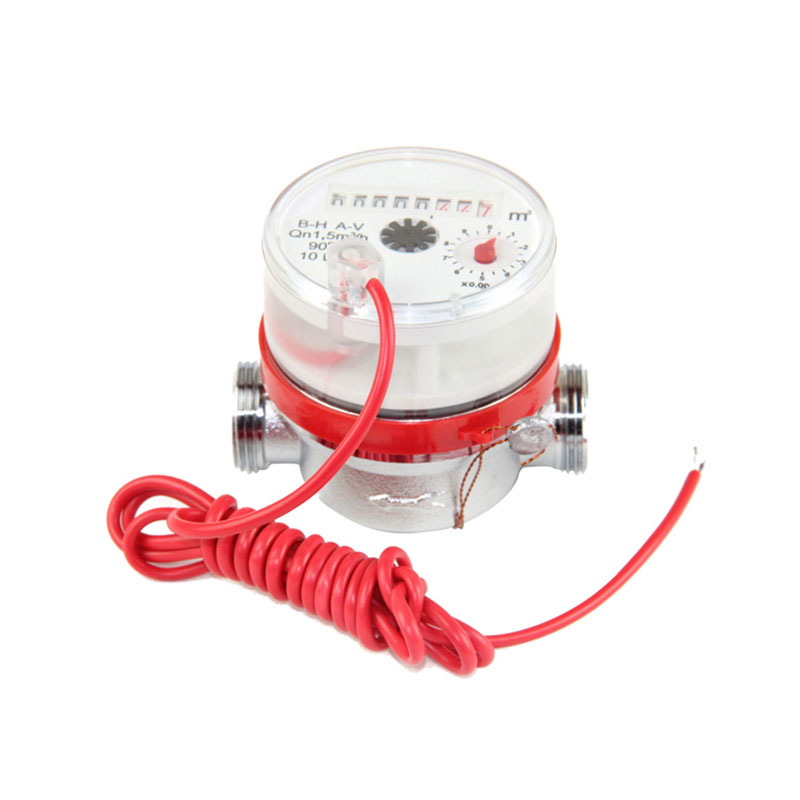

Remote Reading Water Meters LXSGY-13D5

Product Details

Main Features

●Single-jet, Dry-dial, Magnetic drive, Anti-magnetic

●Available for cold water (30°C) and hot water (90°C), sizes Ø 15  ( ½” ).

●Body material: Brass

●Conform to ISO 4064, Class B

●Applicable to data collector, Reed switch



Specification:

10 liters/pulse



MAIN TECHNICAL DATA

Meter size Dia DN (mm)	Class	qs Overload Flow	qs Nominal Flow	qs Transitional Flow	Qmin Min Flow	Min Reading Lectura	Max Reading Lectura
		m3/h		1/h		m3
13	A	3	1.5	150	60	0.0001	99999
	B			120	30



INDICATING ERROR

At low zone is ±5% from minimum flow rate  (qmin)  to transitional flow rate (qt) exclusive boundary

At high zone is ±2% from transitional flow rate (qt) to overload flow rate (qs)



DIMENSIONS AND WEIGHT

Meter size Dia DN (mm)	Length(L)	Width(B)	Height(H)	Connecting Thread D	Weight Kg
	mm
13	110	80	80	G 3/4B	0.7



SELECTED METER TYPE

1. Reed switch

2. Connecting wire 1.5m

3. Sensor connecting means:

Two cores wire for Reed Switch



WORKING CONDITION

Water temperature：≤50℃ for cold water meter

Water temperature：≤90℃ for hot water meter

Working pressure：≤1.6Mpa
