Wholesale Single-Jet Dry-Dial Cold(Hot) Water Meter LXSG-13D1-25D1

Single-Jet Dry-Dial Cold(Hot) Water Meter LXSG-13D1-25D1

0
Views: 281
Single-Jet Dry-Dial Cold(Hot) Water Meter LXSG-13D1-25D1
Location: China Minimum order quantity: -
Business Type: - Price: -
Brands: - Packing details: -
Certificate: - Delivery time: -
Model: - Payment method: -

Product Details

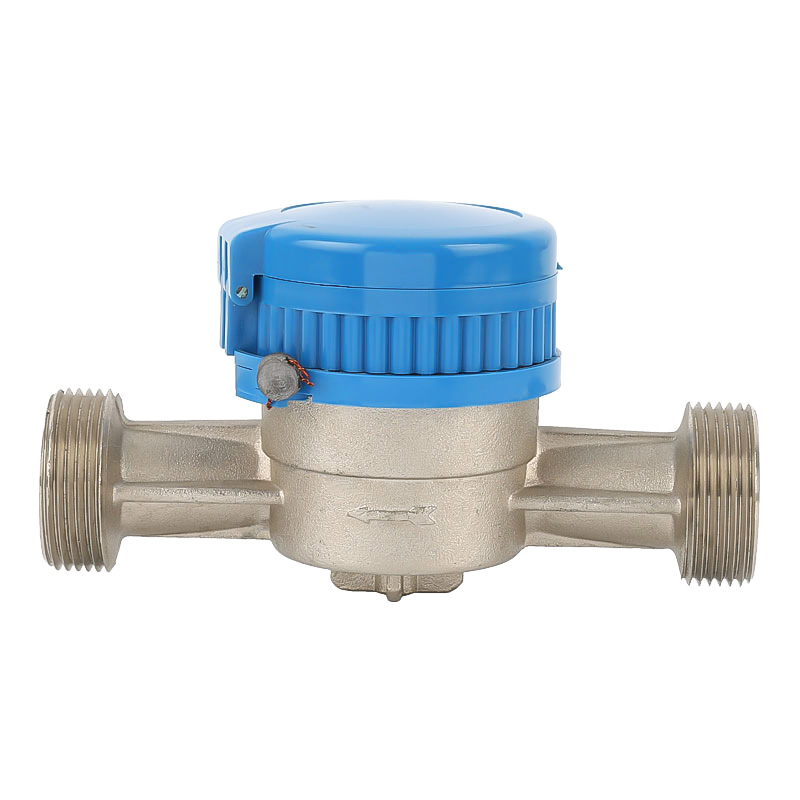

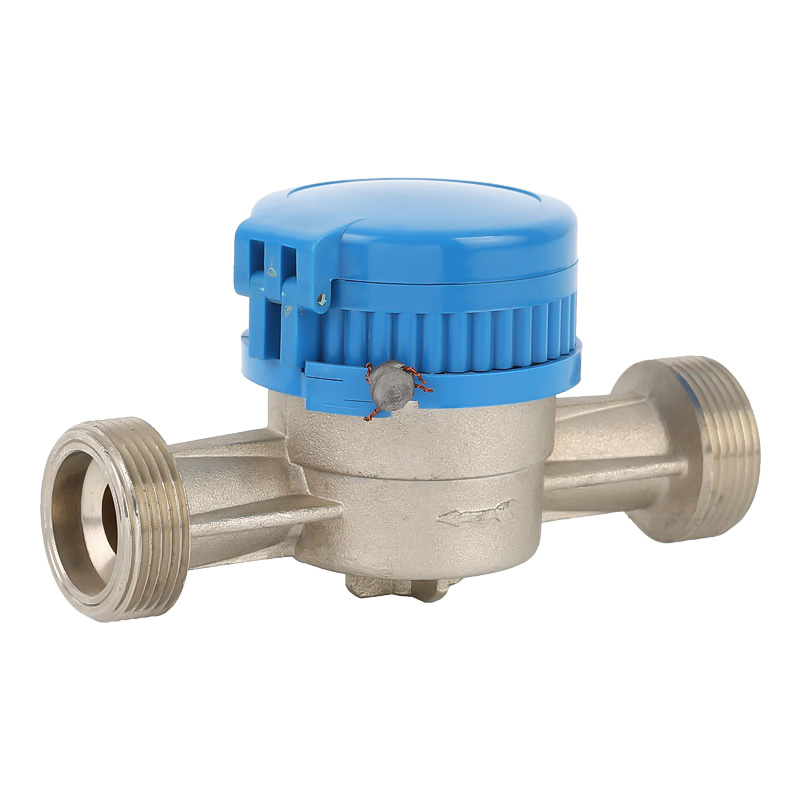

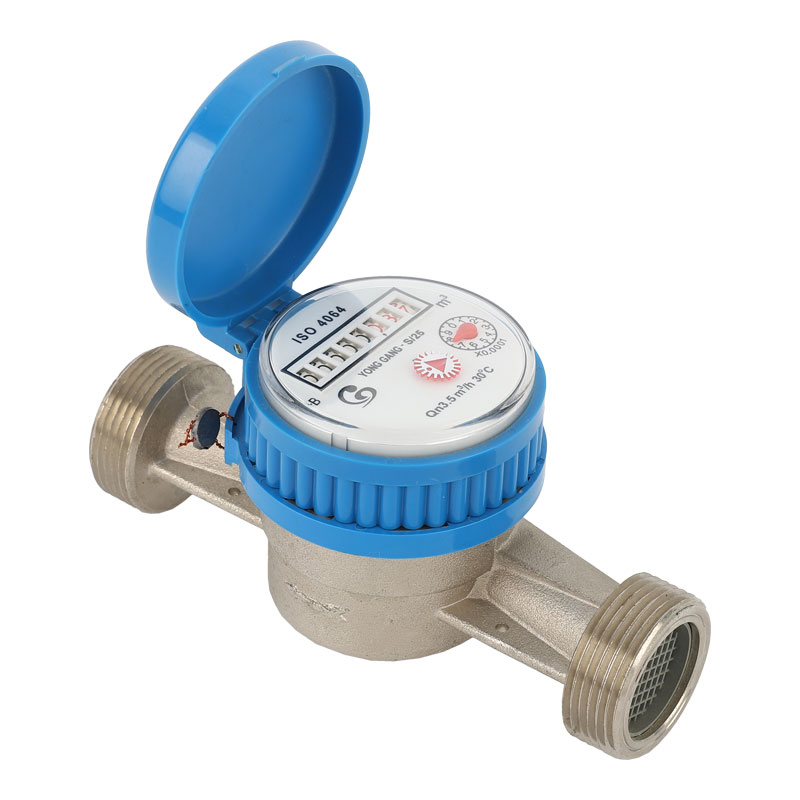

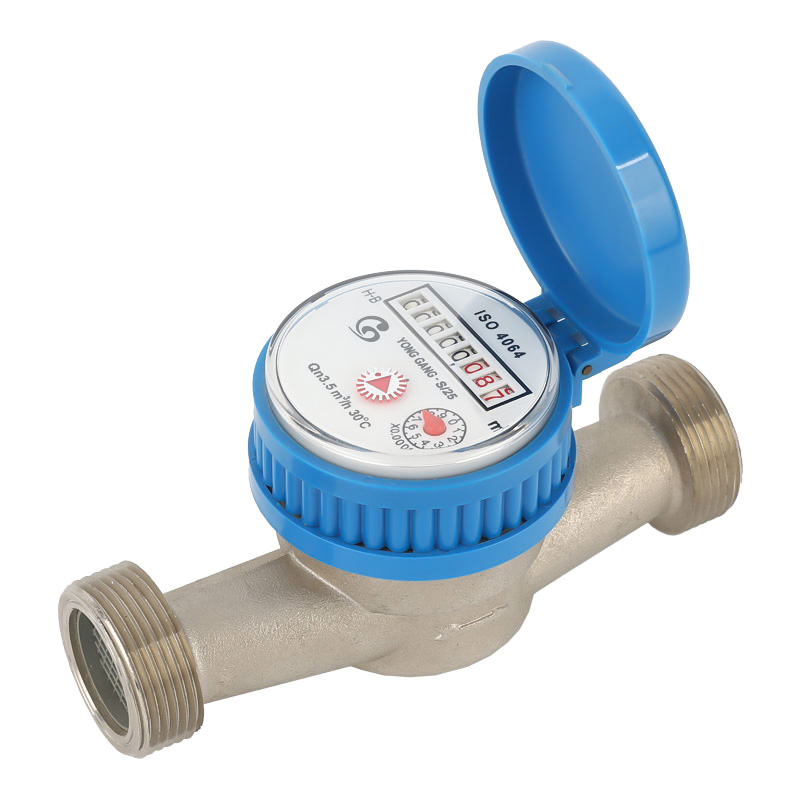

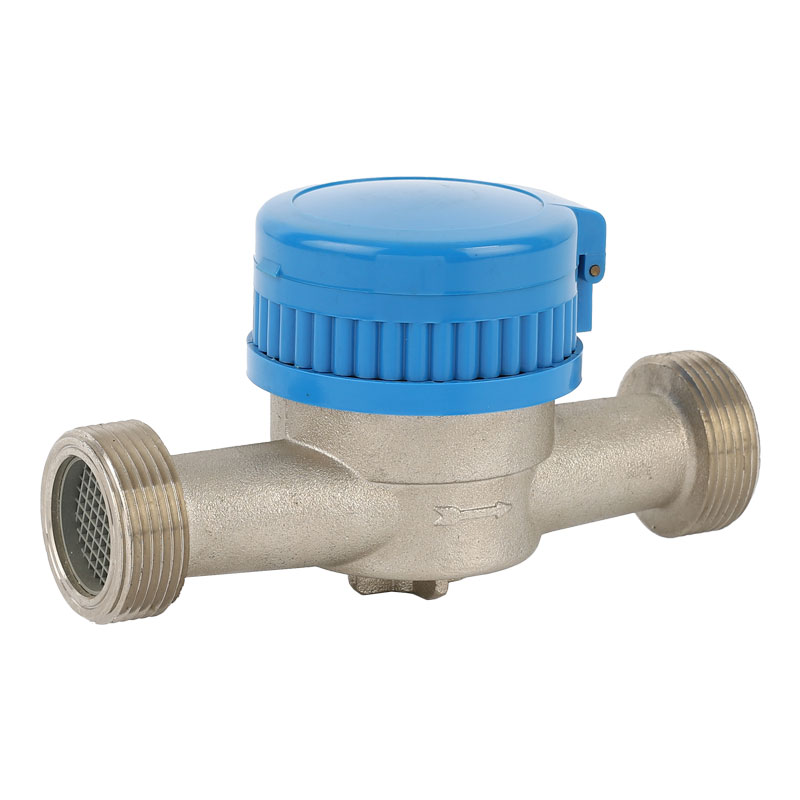

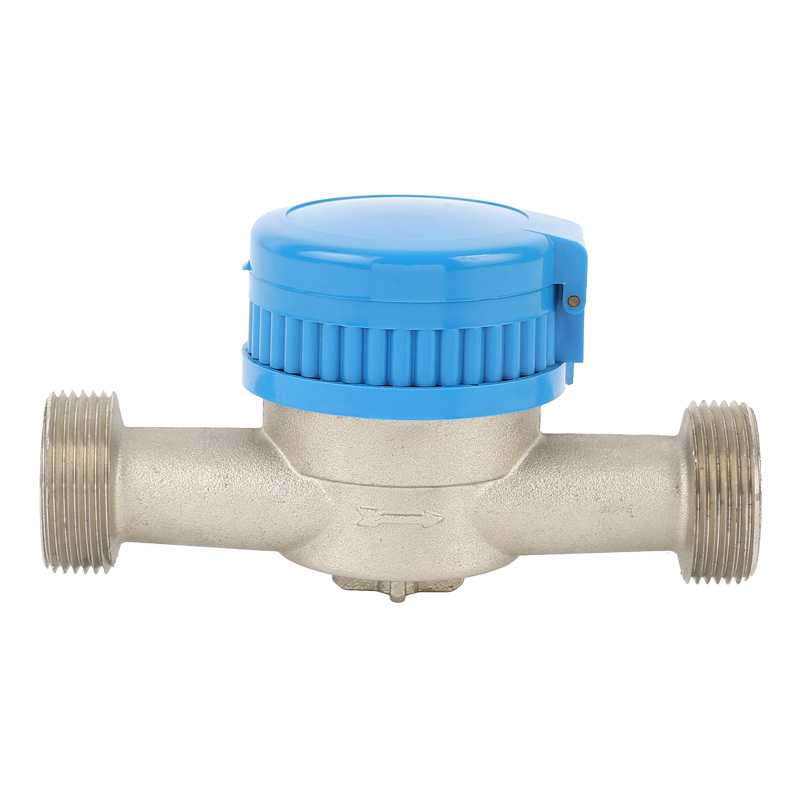

Single-jet dry-dial cold(hot) water meter

Model: LXSG-13D1-25D1



Main Features

●Single-jet, Dry-dial, Magnetic drive, Anti-magnetic or non-magnetic for option.

●Available for cold water (30°C) and hot water (90°C), sizes Ø 15  to 25 mm (½” – 1”).

●Body material: Brass, nickel plated

●Measuring accuracy conform to ISO 4064 class B Standard

●Inner adjusting device



MAIN TECHNICAL DATA



Meter sizeDia
DN
(mm)

Class

Qs
Overload Flow

Qp
Nominal Flow

Qt
Transitional
Flow

Qmin
Min
Flow

Min
Reading
Lectura

Max
Reading
Lectura

m3/h

1/h

m3

13

A

3

1.5

150

60

0.0001

99999

B

120

30

20

A

5

2.5

250

100

0.0001

99999

B

200

50

25

A

7

3.5

350

140

0.0001

99999

B

280

70



INDICATING ERROR



At low zone is ±5% from minimum flow rate  (qmin)  to transitional flow rate (qt) exclusive boundary

At high zone is ±2% from transitional flow rate (qt) to overload flow rate (qs)



DIMENSIONS AND WEIGHT



Meter sizeDia
DN
(mm)

L

B

H

Connecting Thread

Weight

length

Width

Height

mm

D

kg

13

110

80

80

G3/4"B

0.7

20

130

80

80

G1"B

0.95

25

160

80

93

G11/4"B

1.4



WORKING CONDITION



Water temperature:≤50℃ for cold water meter

Water temperature:≤90℃ for hot water meter

Working pressure:≤1.0Mpa

About Zhiyitong Energy

Ningbo Zhiyitong Energy Technology Co., Ltd. is a set of production, research and development, sales and technical services as one of the high-tech enterprises. The company is located in the west industrial park, xinpu town, cixi city, south bank of the world-famous hangzhou bay bridge, with a large manufacturing center of 42,600 square meters.The company has a registered capital of 50 million yuan, with an annual output of more than 1.5 million meters of various types, and its products are sold to more than 20 countries and regions such as Europe, Africa, the Middle East and southeast Asia.

As well known Single-Jet Dry-Dial Cold(Hot) Water Meter LXSG-13D1-25D1 suppliers in China, Our products mainly involve residential water and industrial water flow measurement, heating system heat measurement and other applications. We also wholesle Single-Jet Dry-Dial Cold(Hot) Water Meter LXSG-13D1-25D1 in bulk. Besides the customized parts,we also produce all kinds of conventional water and heat meters in line with international standards. OEM/ODM available.
