Wholesale Water Meters For Pulse Output LXLCY-50-200

Water Meters For Pulse Output LXLCY-50-200

0
Views: 146
Water Meters For Pulse Output LXLCY-50-200
Location: China Minimum order quantity: -
Business Type: - Price: -
Brands: - Packing details: -
Certificate: - Delivery time: -
Model: - Payment method: -

Product Details

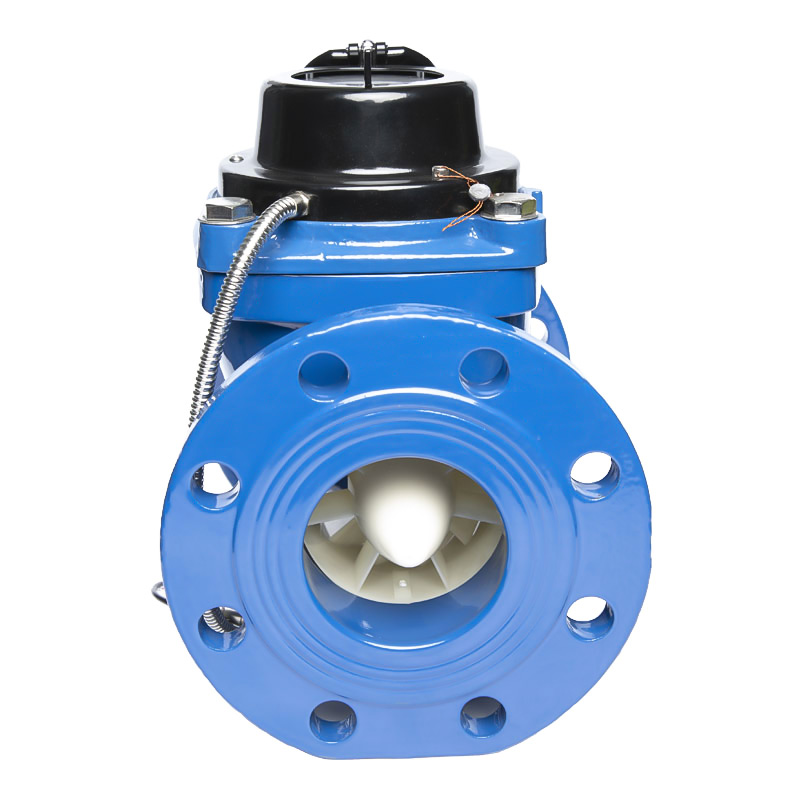

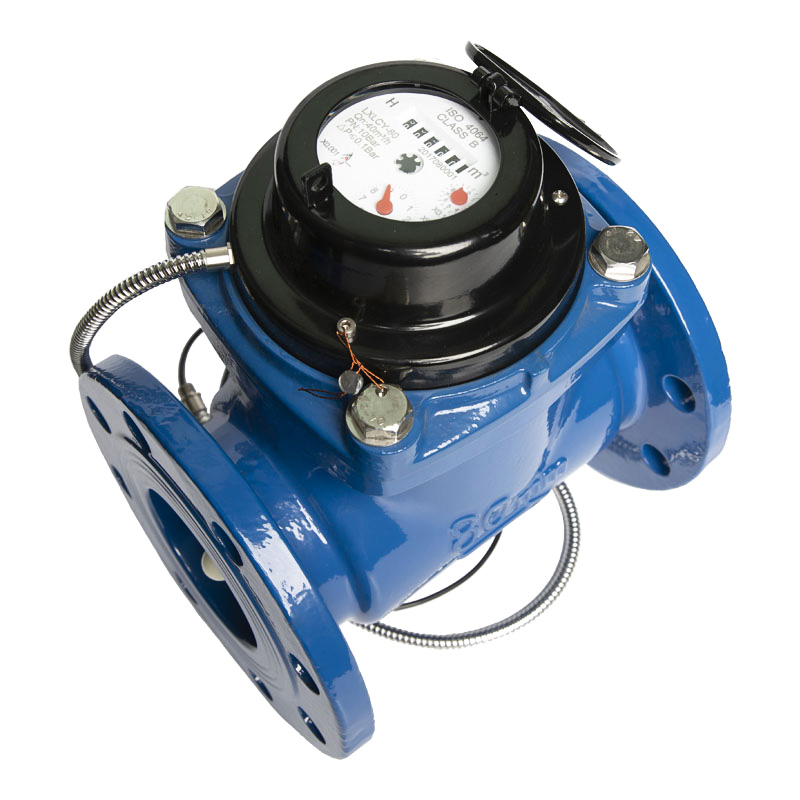

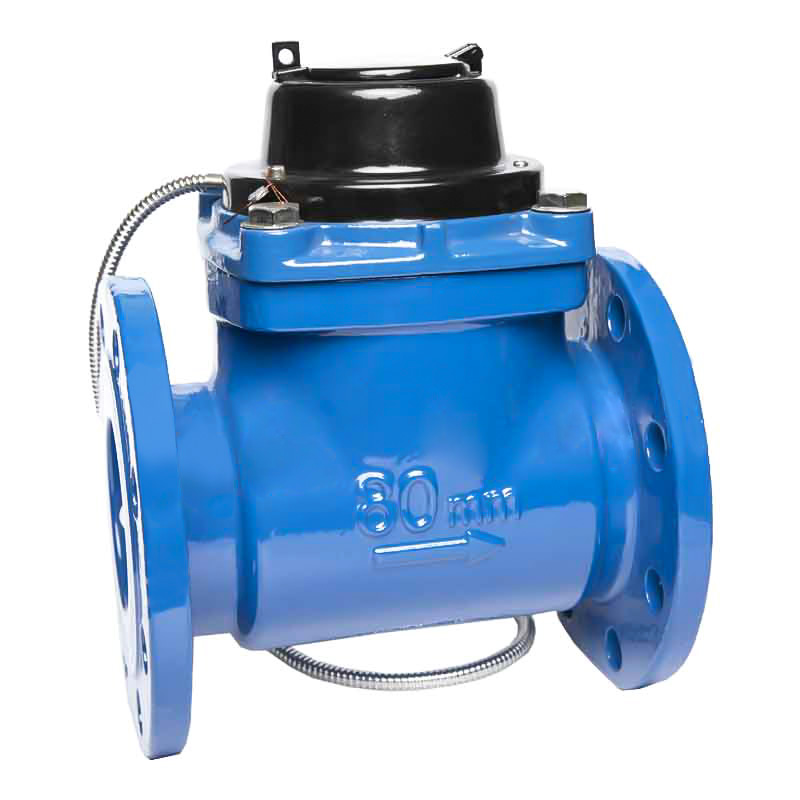

Woltman water meter with pulse output

Model: LXLCY-50-200



Main Features

Woltman type with pulse output

Transmission sensor: Reed switch

Body: Gray cast iron or ductile cast iron for option

Sustain its measuring accuracy and numeral display

Unique design and advanced testing measures ensure a secure transmission

Maximum distance between connected meter and a data collector: 150m

Applicable to various kinds of data collcetor



1.Dry-dial,Magnetic drive
2.Vacuum sealed register ensures the dial kept free from fog and keep the reading clear in a long term service
3.Selected high quality materials for steady & reliable characteristic
4. Measuring accuracy conform to ISO 4064 class B Standard
5. Low head loss
6. Register for universal use within this range detachable without removing the meter from the pipeline for a easy maintenance and replacement



Description



This range of water meter is used to measure the total quantity of cold water which consumed in industrial enterprise & mining,passing through the pipeline.



Working condition



Water temperature of cold water meter:≤50℃

Water temperature of hot water meter: ≤90℃
Working pressure:≤1.0MPa



MAIN TECHNICAL DATA



Size

Class

Norminal
Flow

Transitional
Flow

Min
Flow

Min
Reading

Max
Reading

m3/h

m3

mm

50

A

15

4.5

1.2

0.01

999999.99

B

3

0.45

80

A

40

12

3.2

0.01

B

8

1.2

100

A

60

18

4.8

0.01

B

12

1.8

150

A

150

45

12

0.01

999999.9

B

30

4.5

200

A

250

75

20

0.01

B

50

7.5



DIMENSIONS AND WEIGHT



Speacifcation

L

D

D1

H

Flange boit

Weight

m3/h

d x n

Kg

50

190

Φ 195

Φ 160

Φ 239

M16 x 8

13

80

225

Φ 195

Φ 160

Φ 239

M16 x 8

17

100

250

Φ 215

Φ 180

Φ 259

M16 x 8

20

150

300

Φ 280

Φ 240

Φ 300

M25 x 8

33

200

350

Φ 335

Φ 295

Φ 361

M20 x 8

47



At low zone is ±5% from minimum flow rate (qmin) to transitional flow rate (qt) exclusive boundary
At high zone is ±2% from transitional flow rate (qt) to overload flow rate (qs) exclusive boundary

About Zhiyitong Energy

Ningbo Zhiyitong Energy Technology Co., Ltd. is a set of production, research and development, sales and technical services as one of the high-tech enterprises. The company is located in the west industrial park, xinpu town, cixi city, south bank of the world-famous hangzhou bay bridge, with a large manufacturing center of 42,600 square meters.The company has a registered capital of 50 million yuan, with an annual output of more than 1.5 million meters of various types, and its products are sold to more than 20 countries and regions such as Europe, Africa, the Middle East and southeast Asia.

As well known Water Meters For Pulse Output LXLCY-50-200 suppliers in China, Our products mainly involve residential water and industrial water flow measurement, heating system heat measurement and other applications. We also wholesle Water Meters For Pulse Output LXLCY-50-200 in bulk. Besides the customized parts,we also produce all kinds of conventional water and heat meters in line with international standards. OEM/ODM available.
