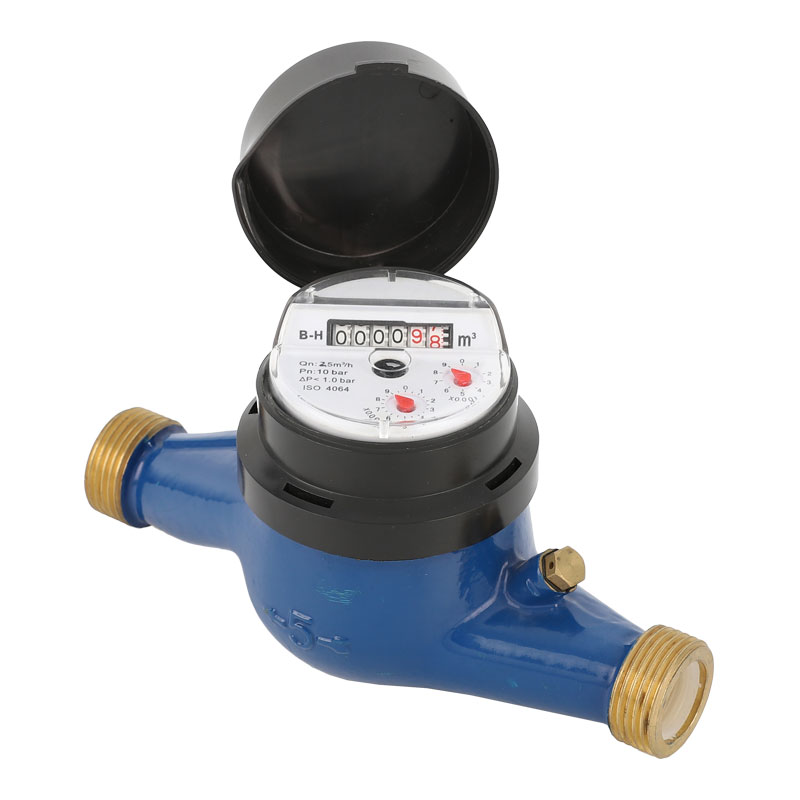

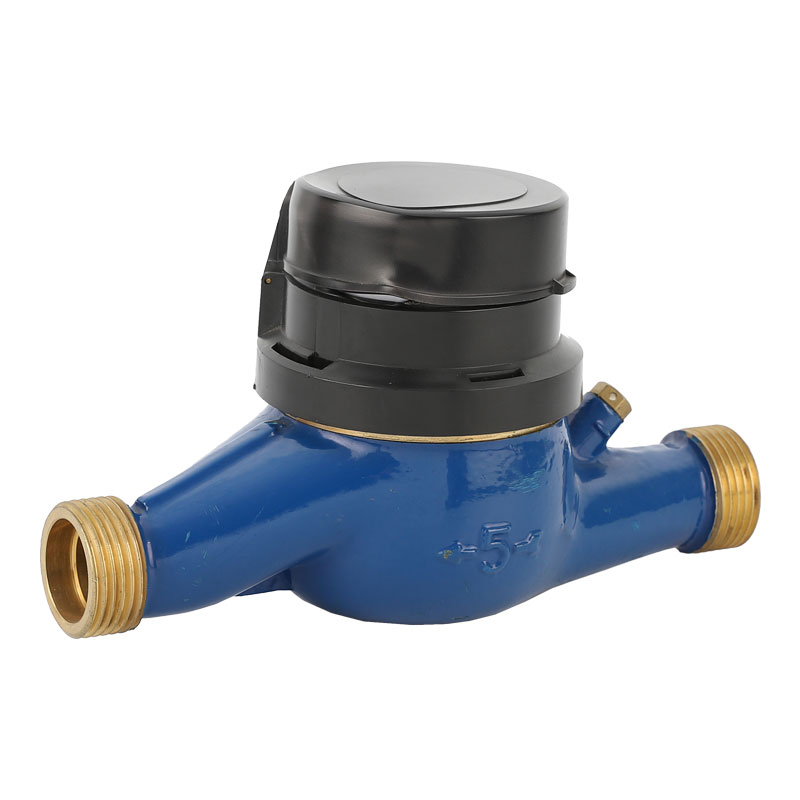

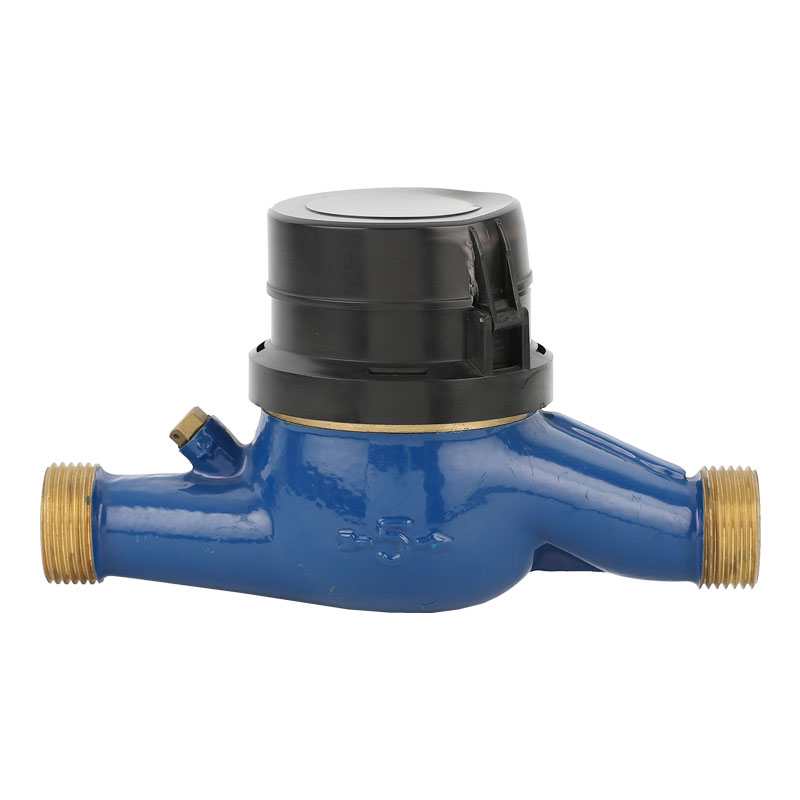

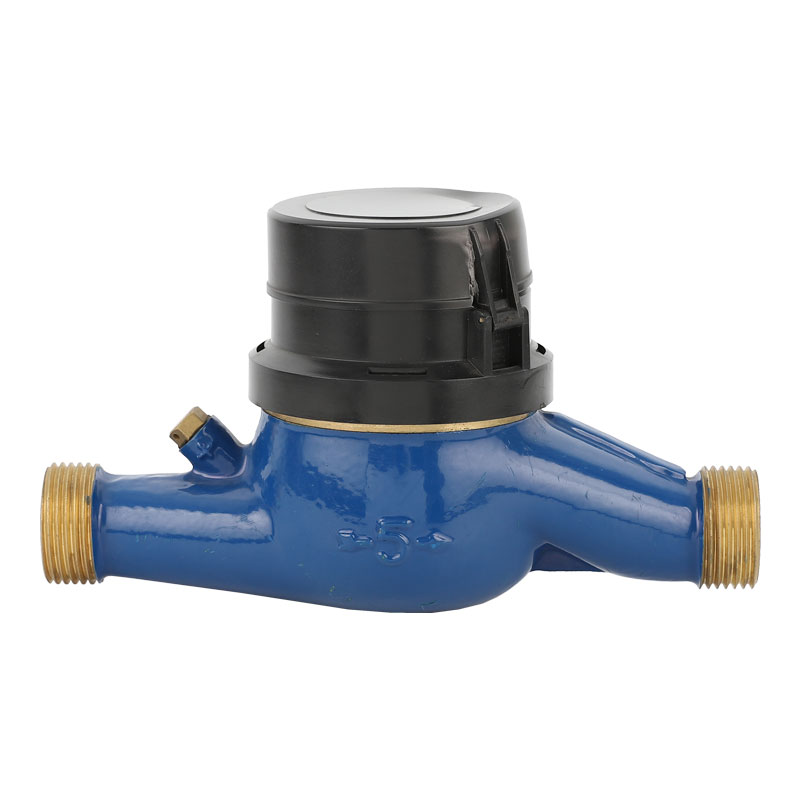

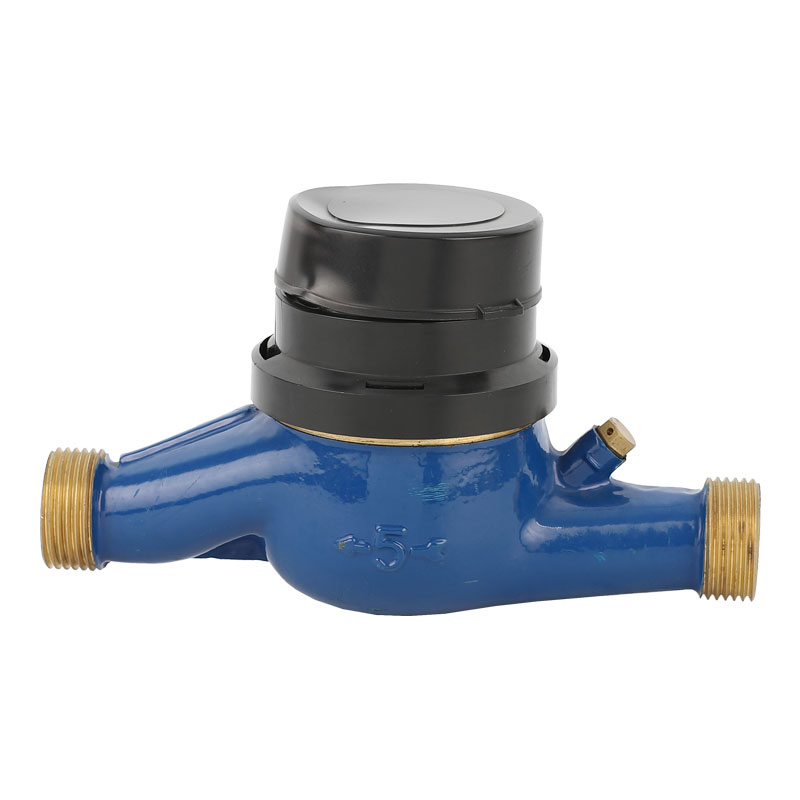

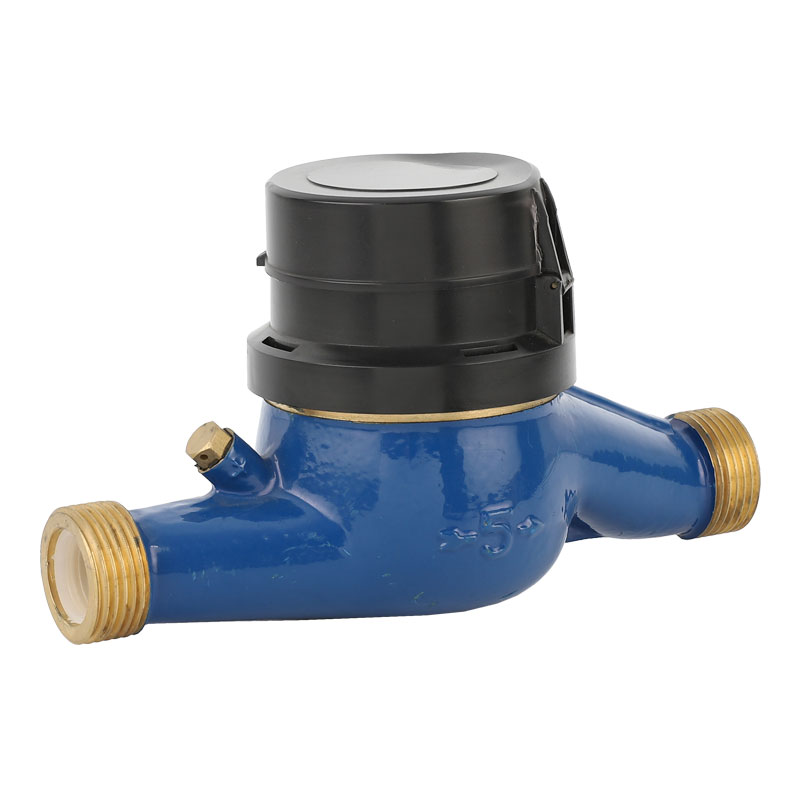

Rotary Vane Wheel Dry Dial Cold Water Meter LXSG-15E7-20E7

Product Details

Rotary vane wheel dry dial cold water meter

Model: LXSG-15E7~20E7



Main Features

●Multi jet, Dry-dial, Magnetic drive, Anti-magnetic

●Multi-jet

●Szes Ø15  to  20mm, (½” – 3/4”), Available for cold water (30°C)

●Vacuum sealed register ensures the dial kept free from fog and keep the reading clear in a long term service

●Measuring accuracy conform to ISO 4064 class B Standard

●Universal use.Easy for interchange & maintenance



MAIN TECHNICAL DATA



Meter size Dia DN(mm)	Class	qs Overload Flow	qs Nominal Flow	qs TransitionalFlow	Qmin Min Flow	Min Reading Lectura	Max Reading Lectura
		m3/h		1/h		m3
15	A	3	1.5	150	60	0.0001	99999
	B			120	30
20	A	5	2.5	250	100	0.0001	99999
	B			200	50



INDICATING ERROR



At low zone is ±5% from minimum flow rate  (qmin)  to transitional flow rate (qt) exclusive boundary

At high zone is ±2% from transitional flow rate (qt) to overload flow rate (qs)



DIMENSIONS AND WEIGHT



Meter size         Dia                    DN                 (mm)	Length	Width	Height	Connrcting Thread     D	Weight   Kg
	mm
15	165	80	102	G3/4B	1.1
20	190	80	105	G 1B	1.4



WORKING CONDITION



Water temperature：≤50℃ for cold water meter

Water temperature：≤90℃ for hot water meter

Working pressure：≤1.6Mpa
