Product Details

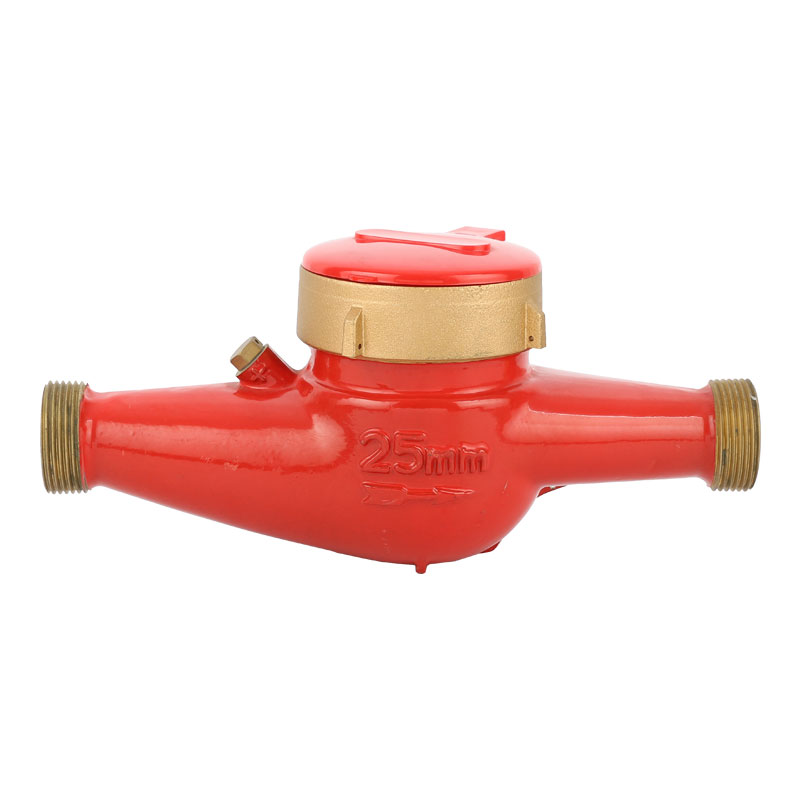

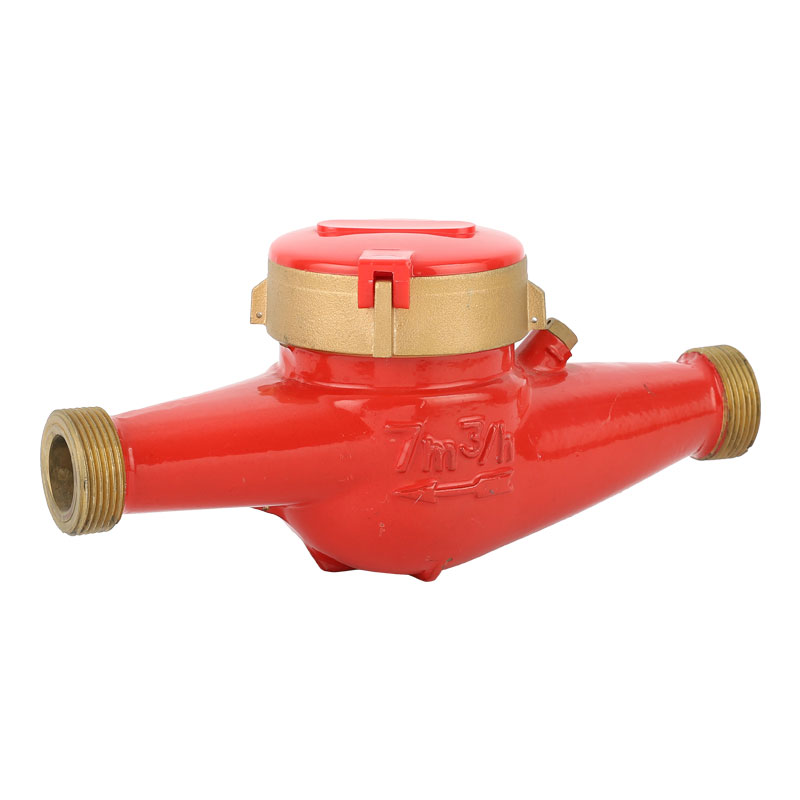

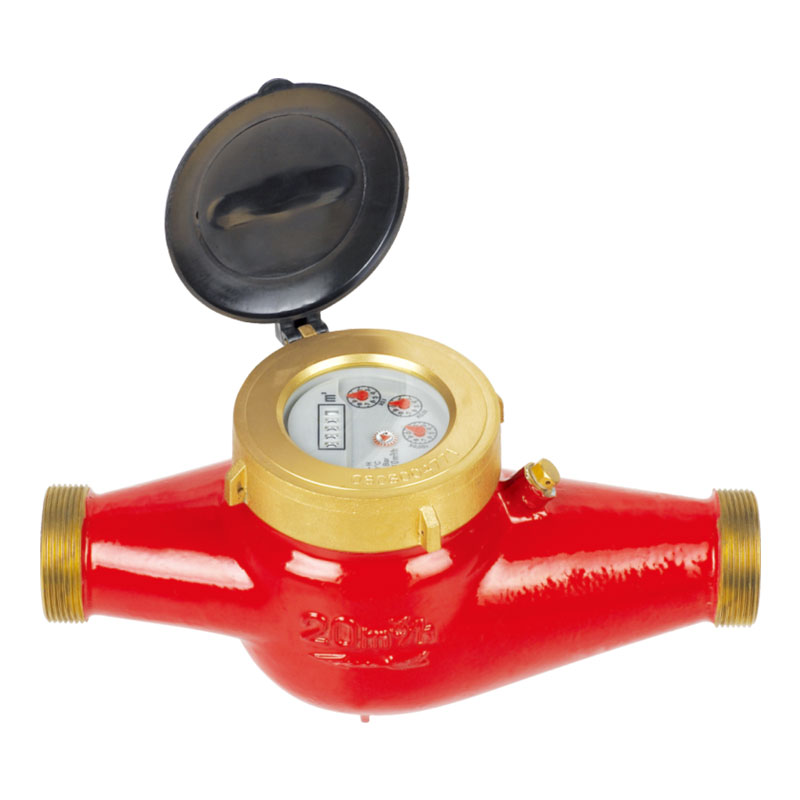

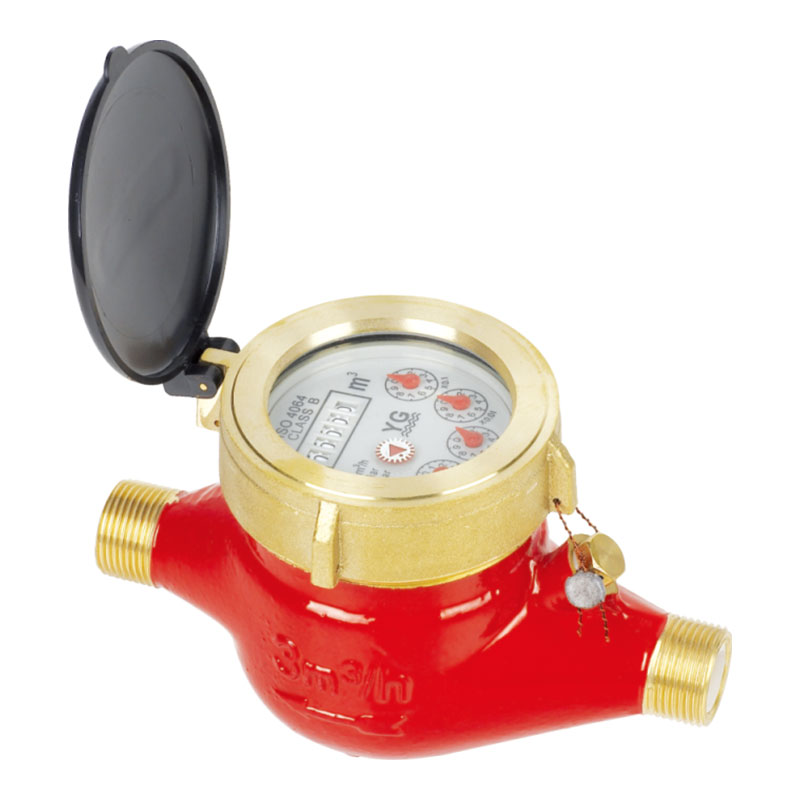

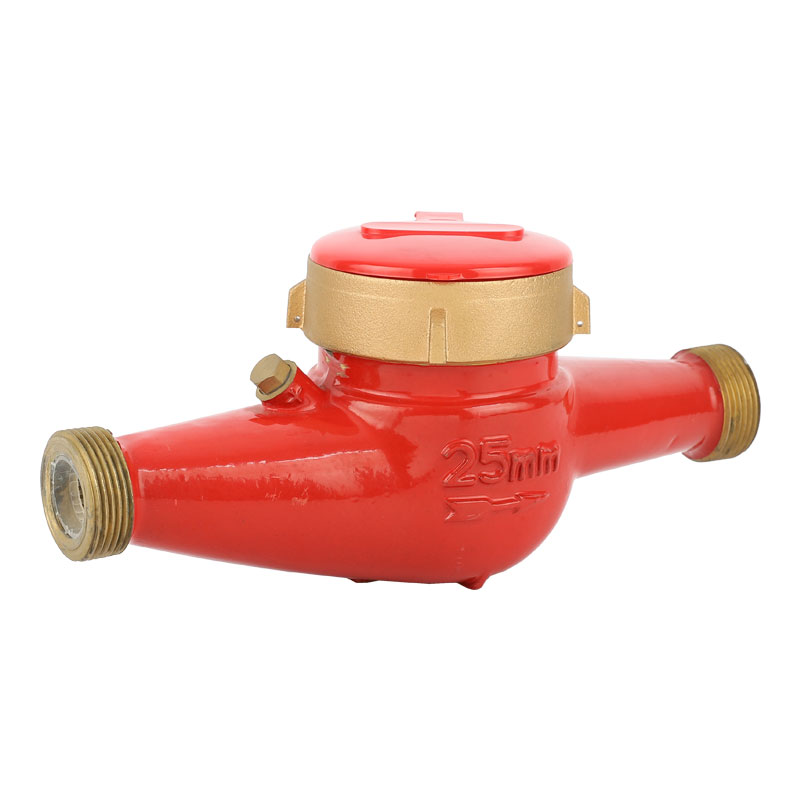

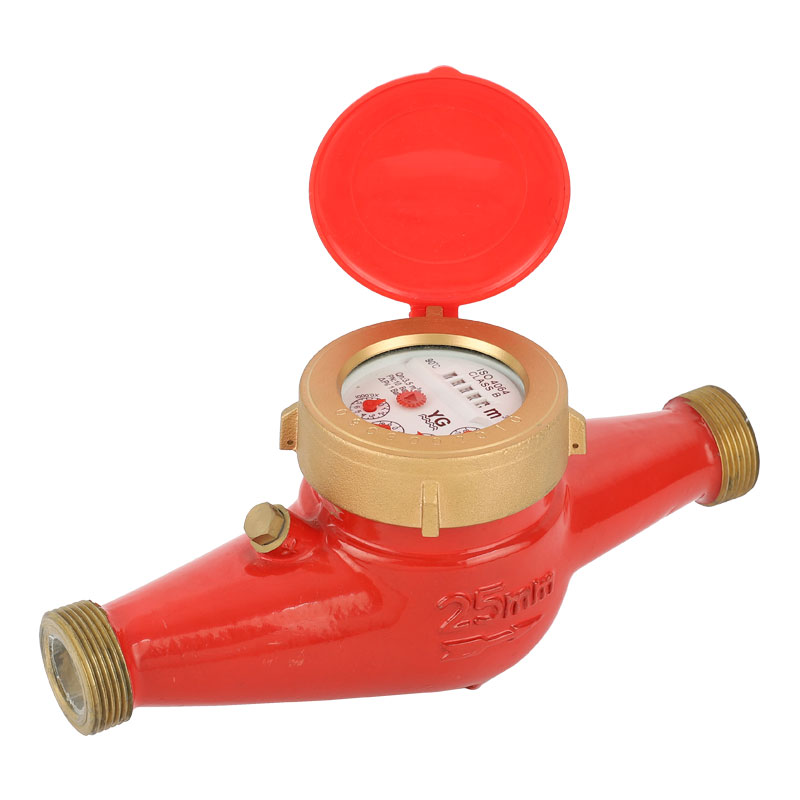

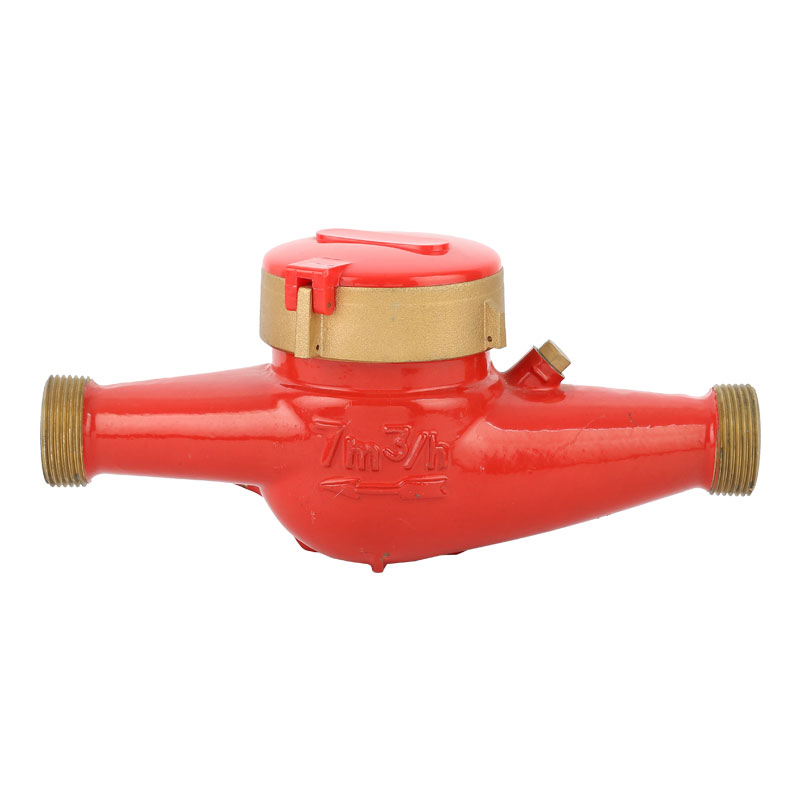

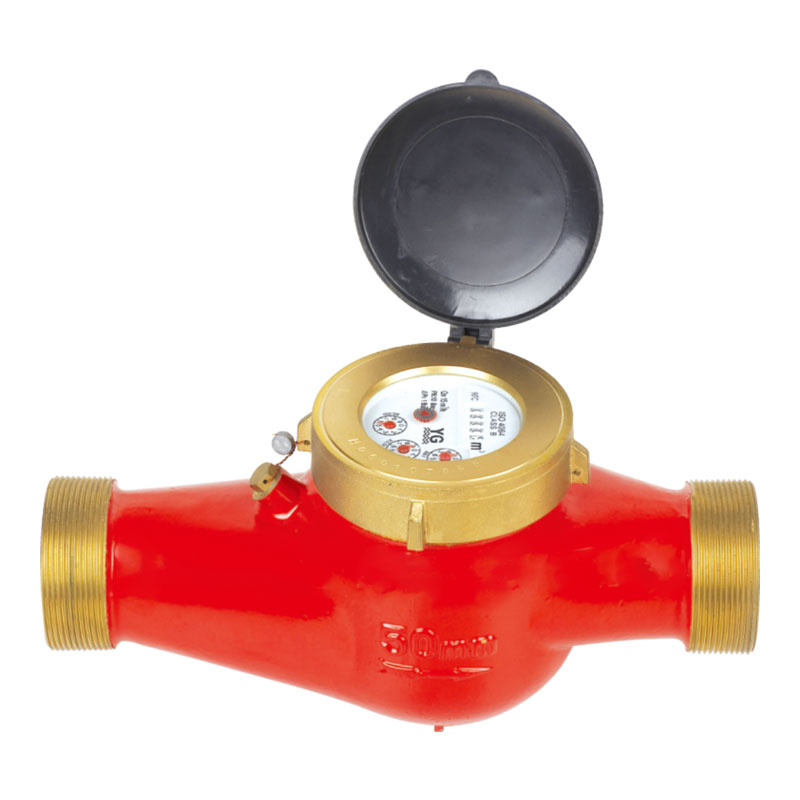

Rotary vane wheel dry dial magnet drive hot water mater
Model: LXSGR-15E~50E
Main Features
●Dry-dial, magnetic drive, Resistance to exterior magnet interference
●Multi-jet
●Selected high quality materials for steady&reliable characteristic
●Vacuum sealed register ensures the dial kept free from fog and keep the reading clear in a long term service
●Measuring accuracy conform to ISO 4064 class B Standard
●universal Use. Easy For Interchange&maintenance
●Easy for interchange & maintenance
MAIN TECHNICAL DATA
|
Meter size
Dia
DN
(mm)
|
Class
|
Qs
Overload Flow
|
Qp
Nominal Flow
|
Qt
Transitional Flow
|
Qmin
Min
Flow
|
Min Reading Lectura
|
Max Reading Lectura
|
|
m3/h
|
1/h
|
m3
|
|
15
|
A
|
3
|
1.5
|
150
|
60
|
0.0001
|
99999
|
|
B
|
120
|
30
|
|
20
|
A
|
5
|
2.5
|
250
|
100
|
0.0001
|
99999
|
|
B
|
200
|
50
|
|
25
|
A
|
7
|
3.5
|
350
|
140
|
0.0001
|
99999
|
|
B
|
280
|
70
|
|
32
|
A
|
12
|
6
|
600
|
240
|
0.0001
|
99999
|
|
B
|
480
|
120
|
|
40
|
A
|
20
|
10
|
1000
|
400
|
0.001
|
99999
|
|
B
|
800
|
200
|
|
50
|
A
|
30
|
15
|
4500
|
1200
|
0.001
|
99999
|
|
B
|
3000
|
450
|
INDICATING ERROR
At low zone is ±5% from minimum flow rate (qmin) to transitional flow rate (qt) exclusive boundary
At high zone is ±2% from transitional flow rate (qt) to overload flow rate (qs)
DIMENSIONS AND WEIGHT
|
Meter size
Dia
DN
(mm)
|
L
|
B
|
H
|
Connecting Thread
|
Weight
|
|
length
|
Width
|
Height
|
|
mm
|
D
|
kg
|
|
15
|
165/190
|
99
|
104
|
G3/4"B
|
1.5/1.6
|
|
20
|
190/195
|
99
|
106
|
G1"B
|
1.7/1.8
|
|
25
|
260/225
|
104
|
120
|
G11/4"B
|
2.6/2.4
|
|
32
|
260/230
|
104
|
120
|
G11/2"B
|
2.8/2.7
|
|
40
|
300/245
|
125
|
155
|
G2"B
|
5.4/4.5
|
|
50
|
300
|
125
|
155
|
G21/2"B
|
7.2
|
|
280
|
165
|
175
|
Flange connecting conform to
GB4216.4
D=165
D1=125
|
14
|
WORKING CONDITION
Water temperature：≤50℃ for cold water meter
Water temperature：≤90℃ for hot water meter
Working pressure：≤1.0Mpa
