Wholesale Multi-jet Series Water Meter LXSG-15E7-20E7

Multi-jet Series Water Meter LXSG-15E7-20E7

0
Views: 129

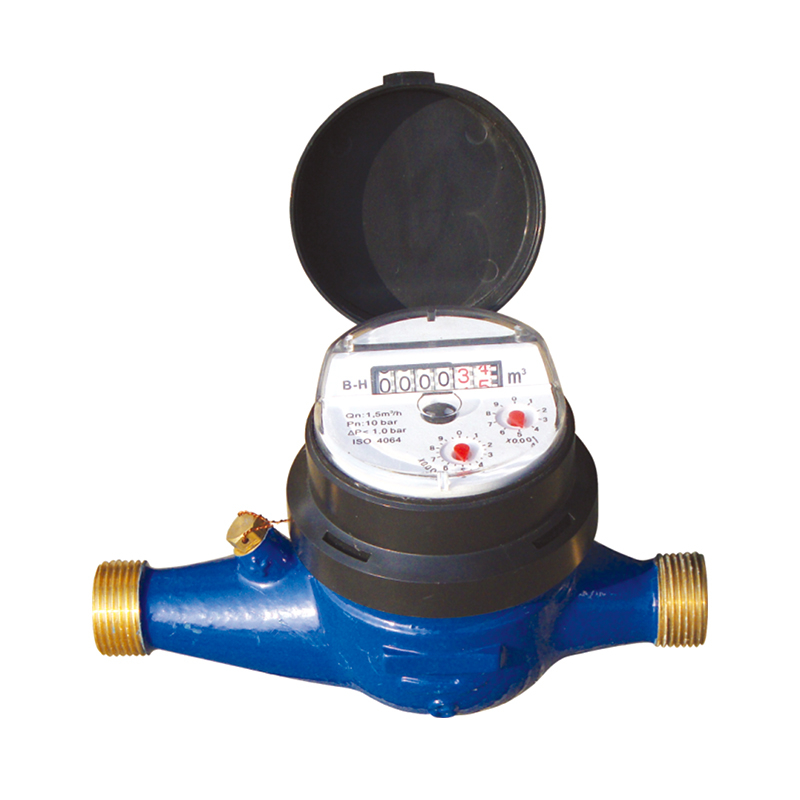

Multi-jet Series Water Meter LXSG-15E7-20E7
Location: China Minimum order quantity: -
Business Type: - Price: -
Brands: - Packing details: -
Certificate: - Delivery time: -
Model: - Payment method: -

Product Details

Main Features

●Multi jet, Dry-dial, Magnetic drive, Anti-magnetic

●Szes Ø15 to 20mm, (½” – 3/4”), Available for cold water (30°C)

●Vacuum sealed register ensures the dial kept free from fog and keep the reading clear in a long term service

●Measuring accuracy conform to ISO 4064 class B Standard

●Universal use.Easy for interchange & maintenance



MAIN TECHNICAL DATA

Meter size
Dia
DN
(mm)
Class qs
Overload
Flow
qs
Nominal
Flow
qs
Transitional
Flow
Qmin
Min
Flow
Min
Reading
Lectura
Max
Reading
Lectura
m3/h 1/h m3
15 A 3 1.5 150 60 0.0001 99999
B 120 30
20 A 5 2.5 250 100 0.0001 99999
B 200 50



INDICATING ERROR

At low zone is ±5% from minimum flow rate  (qmin)  to transitional flow rate (qt) exclusive boundary

At high zone is ±2% from transitional flow rate (qt) to overload flow rate (qs)



DIMENSIONS AND WEIGHT

Meter size
Dia
DN
(mm)
Length Width Height

Connrcting Thread

D

Weight

Kg

mm
15 165 80 102 G3/4B 1.1
20 190 80 105 G 1B 1.4



WORKING CONDITION

Water temperature:≤50℃ for cold water meter

Water temperature:≤90℃ for hot water meter

Working pressure:≤1.6Mpa

About Zhiyitong Energy

Ningbo Zhiyitong Energy Technology Co., Ltd. is a set of production, research and development, sales and technical services as one of the high-tech enterprises. The company is located in the west industrial park, xinpu town, cixi city, south bank of the world-famous hangzhou bay bridge, with a large manufacturing center of 42,600 square meters.The company has a registered capital of 50 million yuan, with an annual output of more than 1.5 million meters of various types, and its products are sold to more than 20 countries and regions such as Europe, Africa, the Middle East and southeast Asia.

As well known Multi-jet Series Water Meter LXSG-15E7-20E7 suppliers in China, Our products mainly involve residential water and industrial water flow measurement, heating system heat measurement and other applications. We also wholesle Multi-jet Series Water Meter LXSG-15E7-20E7 in bulk. Besides the customized parts,we also produce all kinds of conventional water and heat meters in line with international standards. OEM/ODM available.
