Single-Jet Dry-Dial Cold(Hot) Water Meter LXSG-13D4-25D4

Product Details

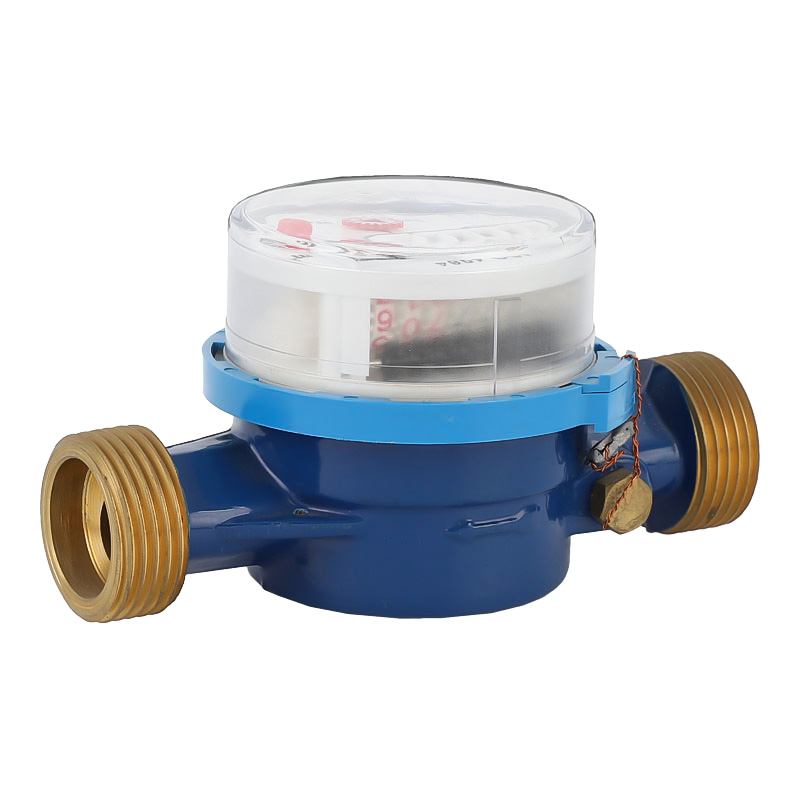

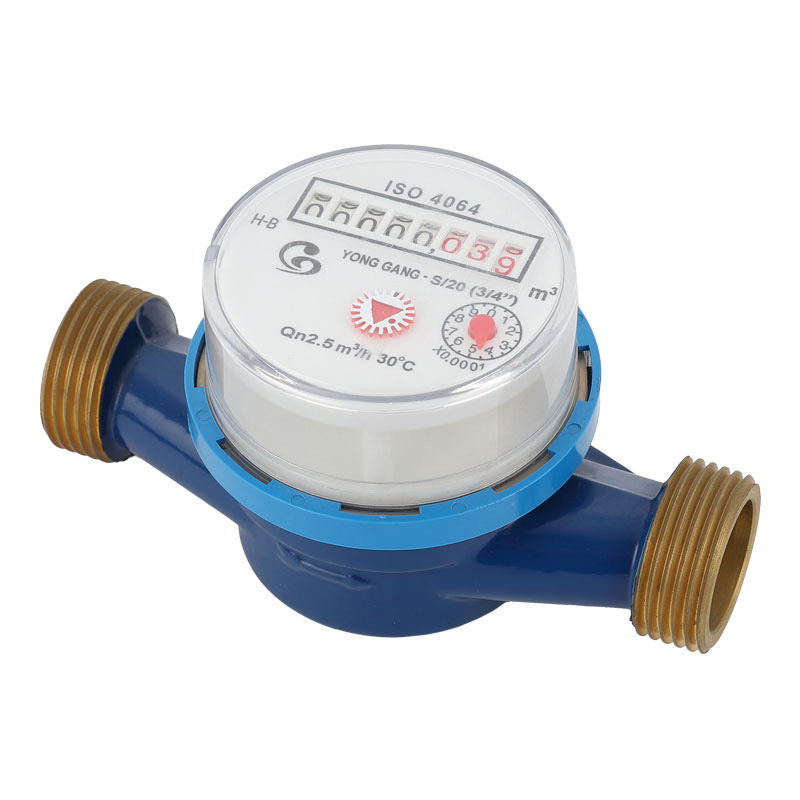

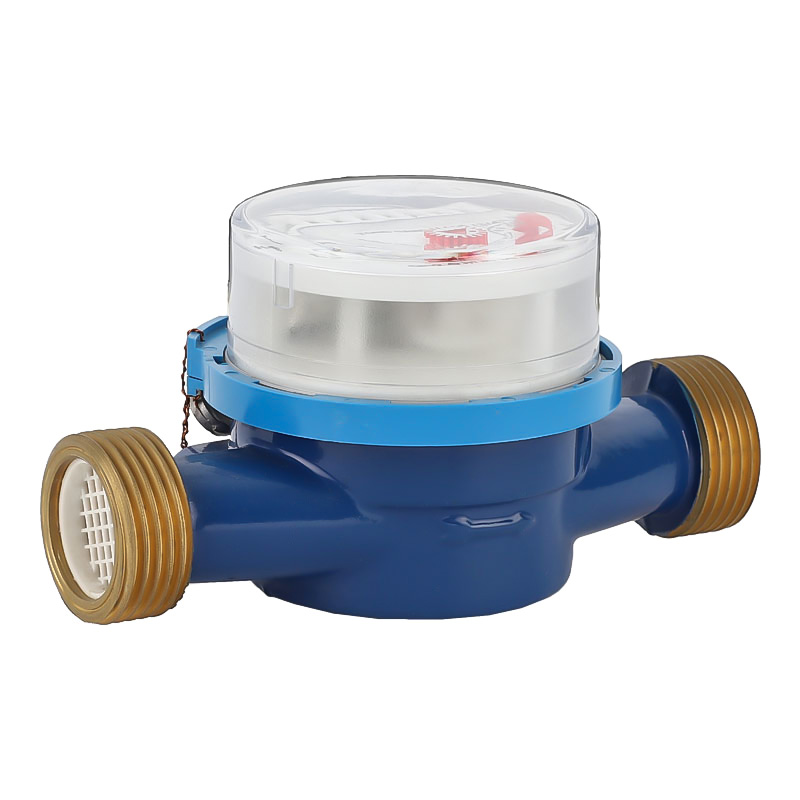

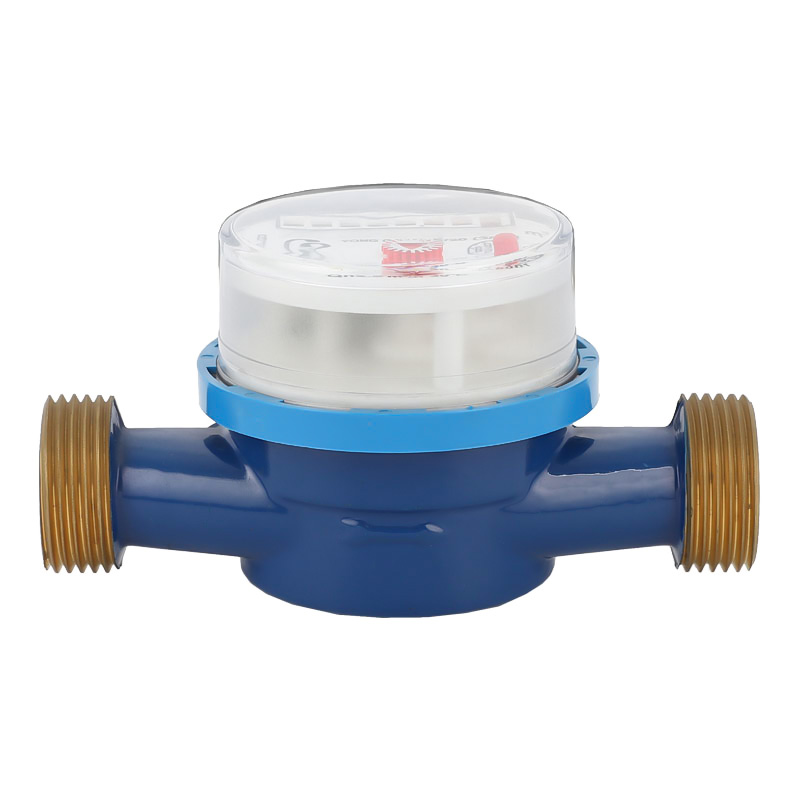

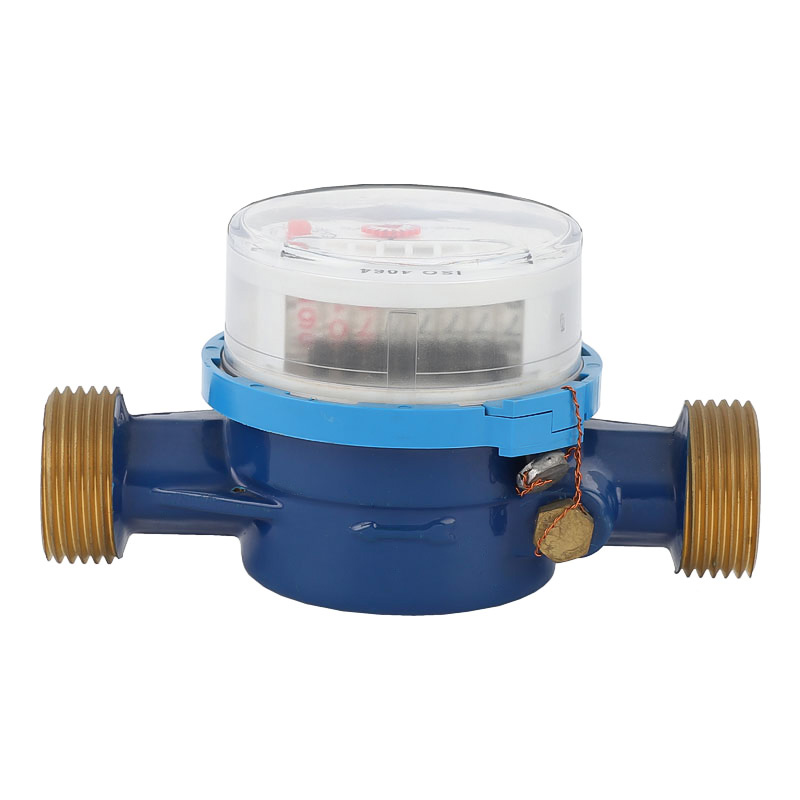

Single-jet dry-dial cold(hot) water meter

Model: LXSG-13D4-25D4



Main Features



●Single-jet, Dry-dial, Magnetic drive, non-magnetic.

●Available for cold water (30°C) and hot water (90°C), sizes Ø 15  to 20mm (1/2” –3/4 ”).

●Body material: Brass, surface of body is powder coating

●Measuring accuracy conform to ISO 4064 class B Standard

●Outer adjusting device



MAIN TECHNICAL DATA



Meter sizeDia DN (mm)	Class	Qs Overload Flow	Qp Nominal Flow	Qt Transitional Flow	Qmin Min Flow	Min Reading Lectura	Max Reading Lectura
		m3/h		1/h		m3
13	A	3	1.5	150	60	0.0001	99999
	B			120	30
20	A	5	2.5	250	100	0.0001	99999
	B			200	50



INDICATING ERROR



At low zone is ±5% from minimum flow rate  (qmin)  to transitional flow rate (qt) exclusive boundary

At high zone is ±2% from transitional flow rate (qt) to overload flow rate (qs)



DIMENSIONS AND WEIGHT



Meter sizeDia DN (mm)	L	B	H	Connecting Thread	Weight
	length	Width	Height
	mm			D	kg
13	110	70	70	G3/4"B	0.42
20	130	70	70	G1"B	0.55



WORKING CONDITION



Water temperature：≤50℃ for cold water meter

Water temperature：≤90℃ for hot water meter

Working pressure：≤1.0Mpa
